Kubler 8.9081.4222.2002 Rotary Encoder

Name: KUBLER 8.9081.4222.2002 ROTARY ENCODER
SKU: 1018040
Price: 178.00 USD
Availability: InStock

Kubler-8.9081.4222.2002-rotary-encoder-(used)

Kubler-8.9081.4222.2002-rotary-encoder-(used)-1

Used

In stock1 unitReady to ship

178,00$

ROTARY ENCODER

FRITZ KUBLER 8.9081 rotary encoder offers 25-bit binary precision via SSI interface, with a 15 mm hollow shaft, rated for 6000 rpm and wide voltage input. Ideal for automation control.

Manufacturer

FRITZ KUBLER

SKU

1018040

Category

Rotary Encoders

Condition

Used

15 25-Bit 530 8.9081 Automation Binary Encoder Fritz High-Speed hollow Industrial Interface Kubler mm Position Rotary Sensor shaft SSI VDC

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

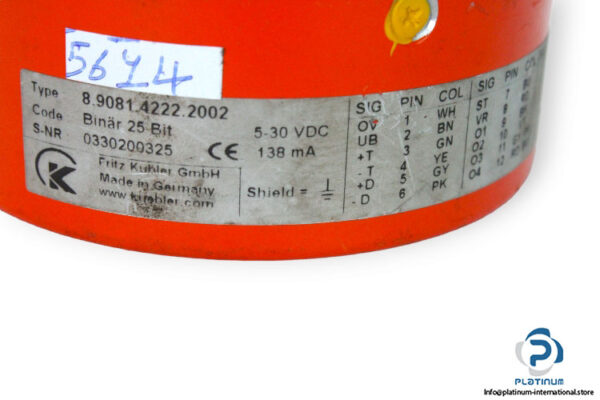

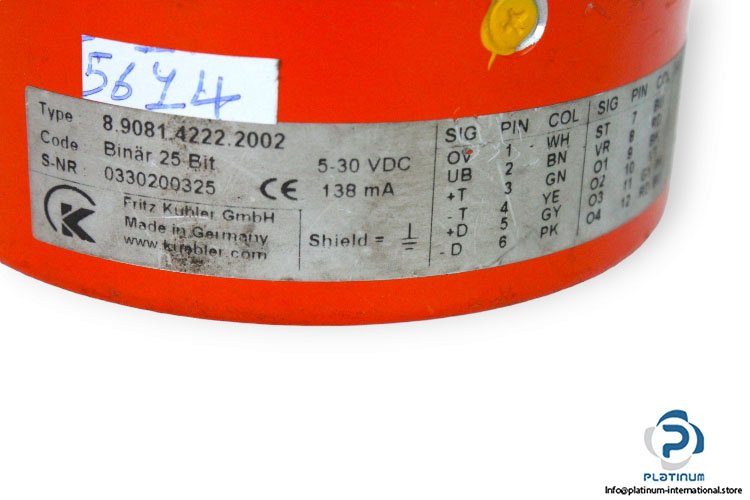

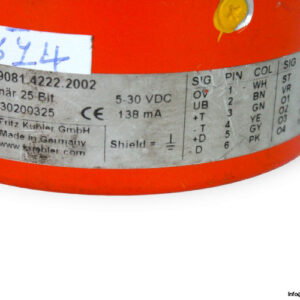

FRITZ KUBLER 8.9081 ROTARY ENCODER “ 25-BIT BINARY CODE

The FRITZ KUBLER 8.9081 Rotary Encoder is a high-resolution, robust solution for precise position detection in industrial automation systems. Featuring a 25-bit binary-coded SSI interface and a durable hollow shaft, it ensures reliable performance even under demanding conditions.

Manufacturer: FRITZ KUBLER

Type: Rotary Encoder

Model: 8.9081

Code: Binary 25-bit

Order Code: 8.9081.4222.2002

Serial Number: 0330200325

Supply Voltage	5 / 30 VDC
Rated Current	138 mA
Max. Speed	6000 min-1
SSI Interface	8192 x 4096 (25-bit), Binary

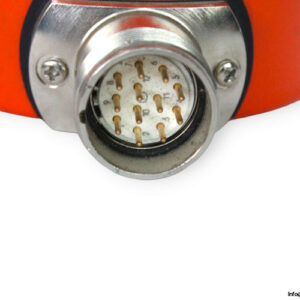

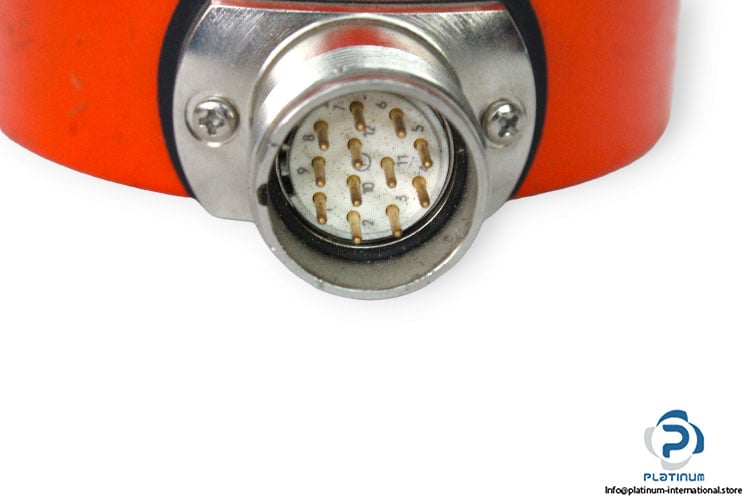

Connection	12-pin plug (no mating connector)

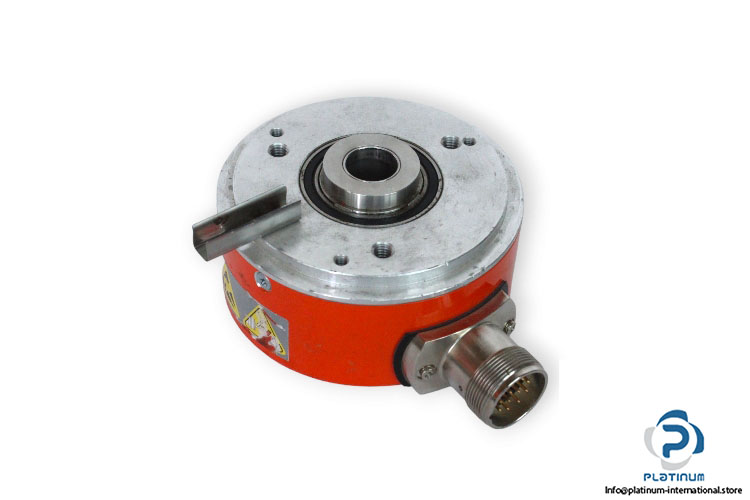

Hollow Shaft	DIA 15 mm
Max. Operating Temperature	-20 / 70 °C
