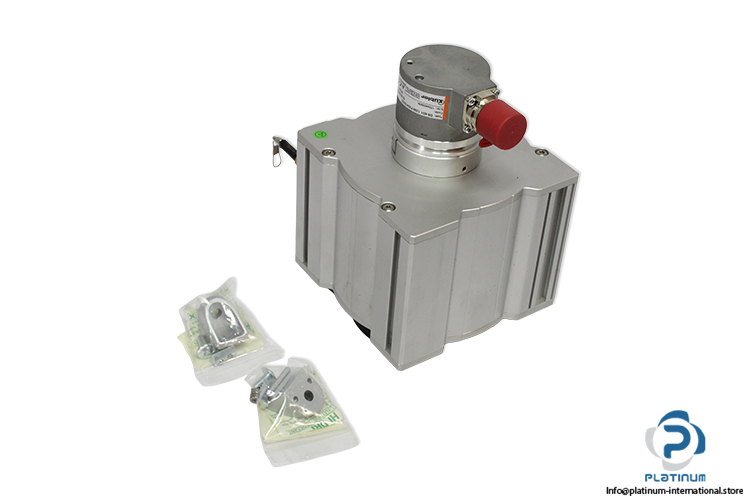

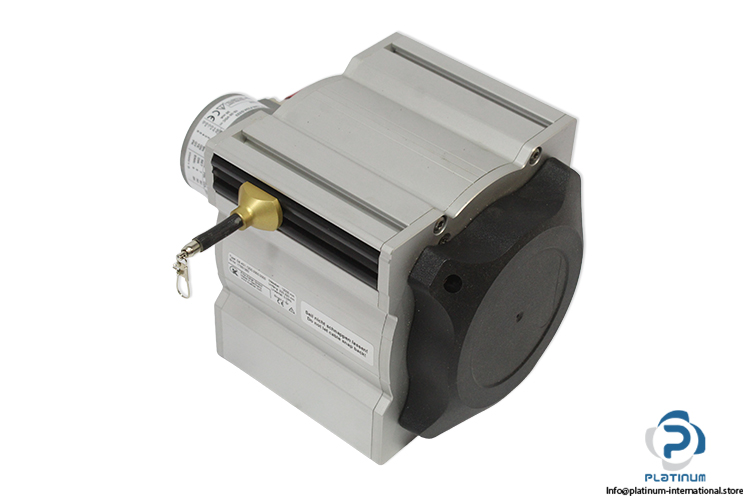

FRITZ KUBLER D8.4D1.1200.F324.G323 Draw-Wire Encoder
The FRITZ KUBLER D8.4D1.1200.F324.G323 is a high-precision draw-wire encoder designed for accurate linear position measurement in industrial automation systems. Equipped with a Sendix F5863 absolute encoder, this unit ensures reliable position feedback, high resolution, and robust mechanical performance in demanding environments.
Manufacturer: FRITZ KUBLER
Type: Draw-Wire Encoder

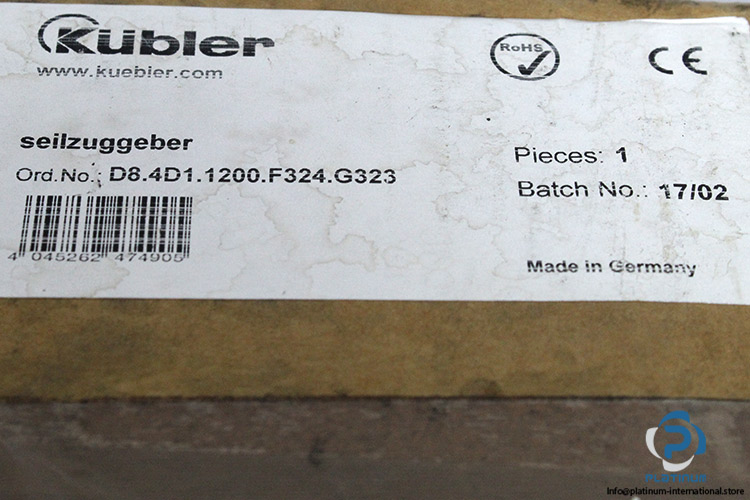

Model: D8.4D1.1200.F324.G323

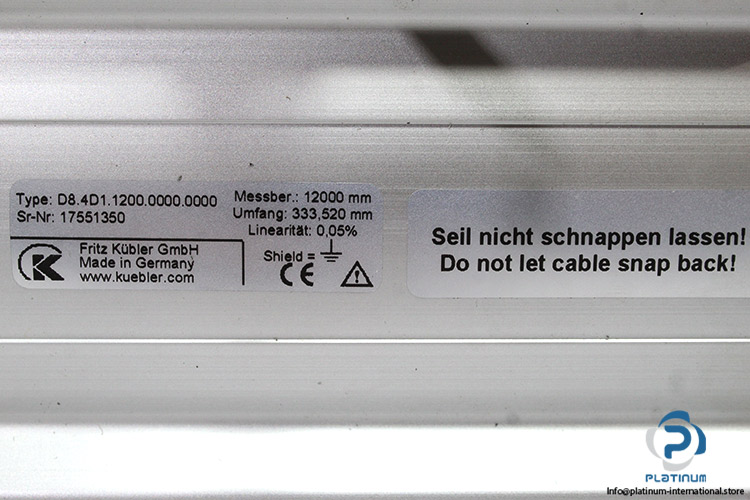

REF NO: D8.4D1.1200.0000.0000

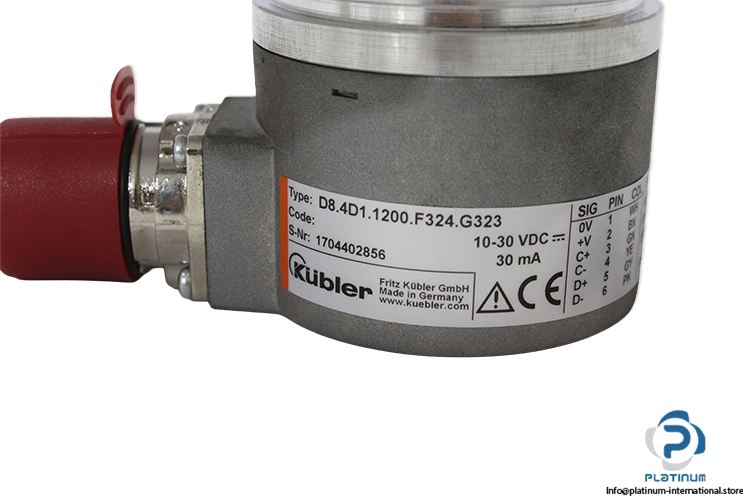

Serial No.: 1704402856 / 17551350 / 4045262 / 474905
| Measuring Range | 12000 mm |
| Circumference Length | 333.520 mm |
| Encoder Used | Sendix F5863, Absolute |
| Supply Voltage | 10 “ 30 VDC |
| Max. Current Consumption | 30 mA |
| Extension Force (Fmin) | 8.7 N |
| Extension Force (Fmax) | 16.9 N |
| Speed Max. | 6 m/s |
| Acceleration Max. | 80 m/s² |
| Acceleration Max. | 140 m/s² |
| Pulses / Revolution (PPR) | 4096 (For measuring range 10 ... 42.5 m, drum circumference 333.33 mm) |
| Pulses / mm | 12.3 |
| Resolution | 0.08 mm |
| Linearity With Encoder | ±0.05 % (Of The Measuring Range) |
| Material Housing | Titanium-Anodized Aluminum |
| Wire | Stainless Steel Ø 0.5 mm (Ø 1 mm Available As Special Option Up To 20000 mm Measuring Range) |
| Protection | IP65 According To EN 60529 (Sensor) |
