Fritz Kubler D8.4D1.0800. F324.G323 Draw-Wire Encoder
New
In stock1 unitReady to ship
Draw-Wire Encoder
FRITZ KUBLER D8.4D1.0800.F324.G323 draw-wire encoder with 8 m measuring range, Sendix 5000 incremental encoder, 4096 PPR resolution, and IP65 protection for industrial position measurement applications.50008MAutomationD8.4D1.0800DrawEncoderFritzIncrementalIndustrialIP65KublerLinearMeasuringPositionSendixSensorwire
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

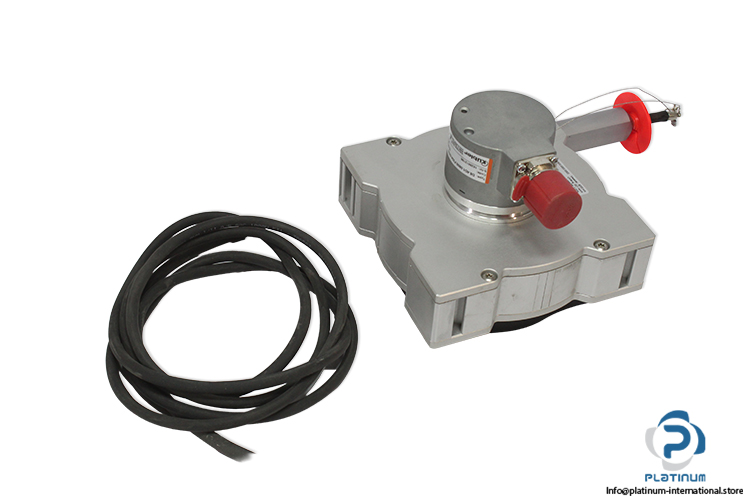

FRITZ KUBLER D8.4D1.0800.F324.G323 Draw-Wire Encoder
The FRITZ KUBLER D8.4D1.0800.F324.G323 is a high-precision draw-wire encoder designed for long measuring ranges and accurate position detection in industrial automation systems. Equipped with a Sendix 5000 incremental encoder, it ensures reliable signal output, high resolution, and stable linearity performance.
Manufacturer: FRITZ KUBLER
Type: Draw-wire Encoder

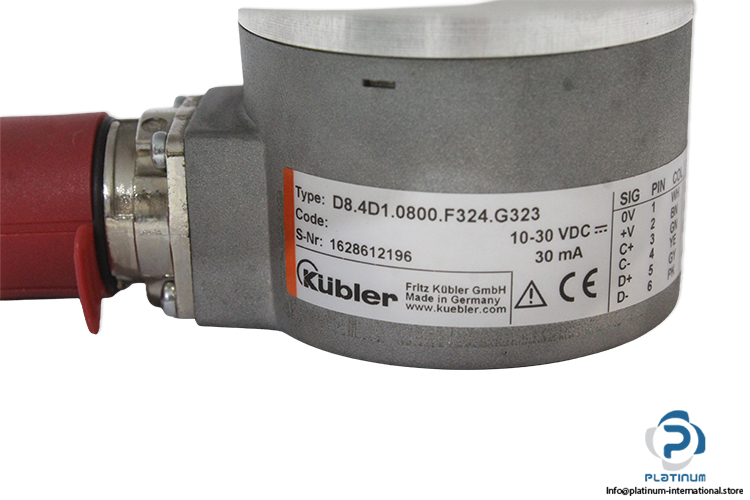

Model: D8.4D1.0800.F324.G323

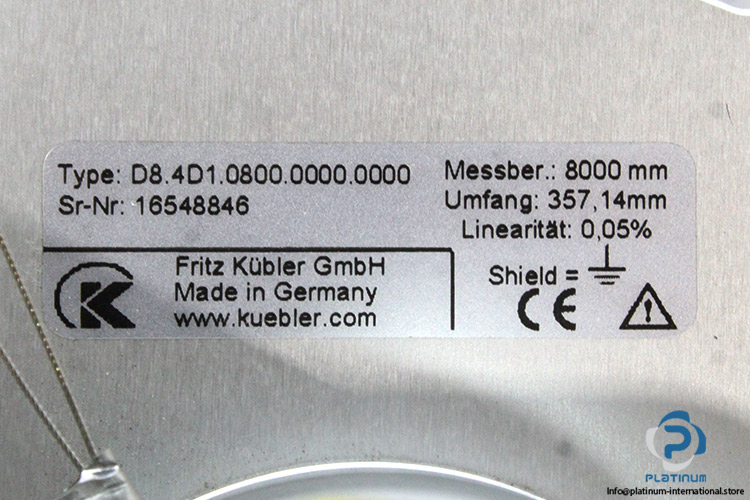

REF NO: D8.4D1.0800.0000.0000
Serial No.: 1628612196 / 16548846
Mounted Encoder: Sendix 5000
Extension Force:
Fmin 7.2 N
Fmax 16.0 N
| Measuring Range | 8 m |
| Circumference Length | 357.14 mm |
| Encoder Used | Sendix 5000, Incremental |

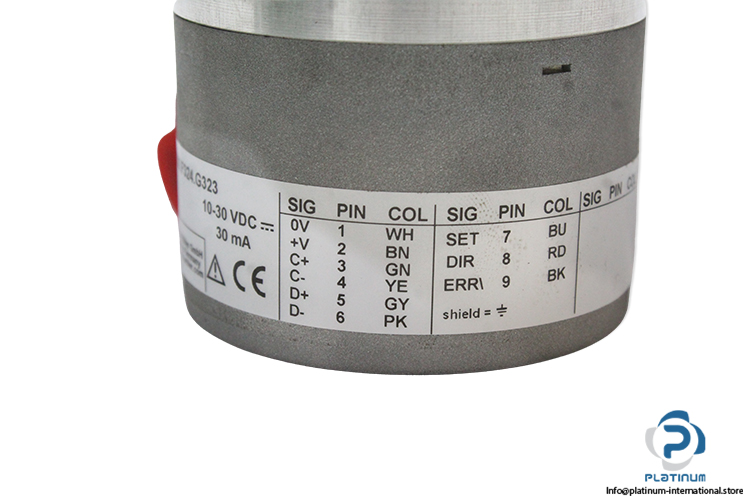

| Supply Voltage | 10 “ 30 VDC |
| Max. Current Consumption | 30 mA |
| Speed Max. | 10 m/s |
| Pulses / Revolution (PPR) | 4096 (For Measuring Range 6 ... 8 m) |
| Pulses / mm | 11.5 |
| Resolution | 0.09 mm |
| Linearity With Encoder | ±0.05 % (Of The Measuring Range) |
| Acceleration Max. | 140 m/s² |
| Housing Material | Titanium-Anodized Aluminum |
| Wire | Stainless Steel Ø 0.5 mm (Ø 1 mm Can Be Supplied As Special Up To Measuring Range 20000 mm) |
| Protection | IP65 (Sensor) According To EN 60529 |
