Fritz Kubler PMK18.10 Pulse Pneumatic Counter
Used
In stock1 unitReady to ship
Pulse Pneumatic Counter
The Fritz Kübler PMK18.10 pneumatic counter offers accurate 8-digit pulse counting with a 9 bar pressure limit, ideal for industrial automation and control systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

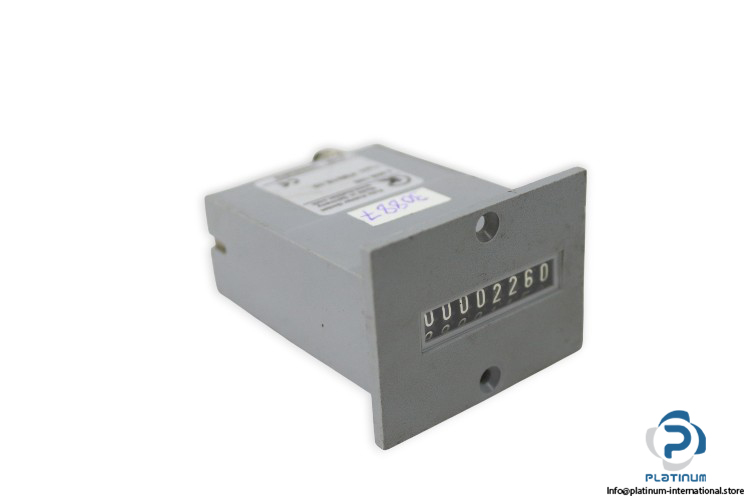

Fritz Kübler PMK18.10 Pulse Pneumatic Counter
The Fritz Kübler PMK1810 Pulse Pneumatic Counter is a reliable and compact measuring device designed for accurate pulse counting in pneumatic systems. Engineered for durability and precision, it performs efficiently under varying pressures and frequencies in industrial applications.
Manufacturer: Fritz Kübler
Type: Pulse Pneumatic Counter
Model: PMK18.10

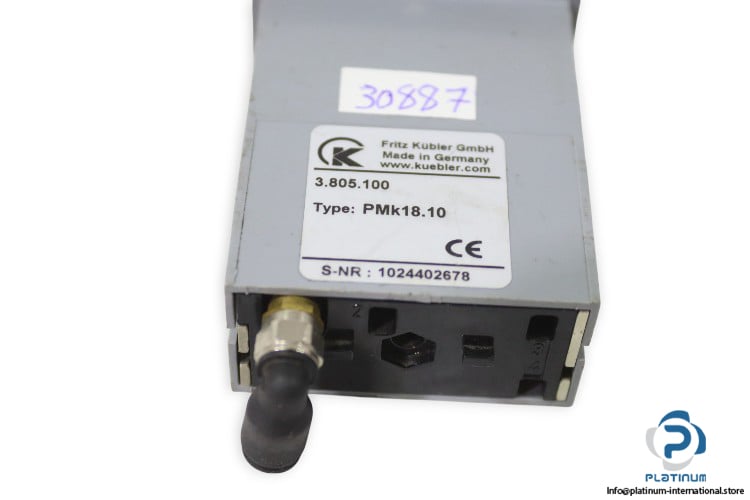

Art No.: 3.805.100
| Digits No. | 8 |
| Safe Pressure Max. | 9 bar (Static) |
| Pulse Frequency Max. | at 1.5 bar 50 Hz |
| Pulse Ratio Max. | 1:1 |
| Hose Length Max. | at 50 Hz 0.3 m |
| Protection Class | IP40/IP41 |
| Temperature | -10 ... 60 °C |
| Dimensions | 40 x 53 x 60.9 mm |
