LDK UCFB203 Three-Bolt Flange Bracket Unit

Name: LDK UCFB203 THREE-BOLT FLANGE BRACKET UNIT
SKU: 1058065
Availability: LimitedAvailability

ldk-UCFB203-three-bolt-flange-bracket-unit-new-carton

ldk-UCFB203-three-bolt-flange-bracket-unit-new-carton-1

ldk-UCFB203-three-bolt-flange-bracket-unit-new-carton-2

ldk-UCFB203-three-bolt-flange-bracket-unit-new-carton-3

신제품

재고 있음30 단위즉시 배송 가능

삼볼트 플랜지 브래킷 유닛. LDK UCFB 203 브래킷 유닛은 산업 응용 분야에서 정밀성과 내구성을 위해 설계되었습니다. FB 204 하우징과 UC 203 베어링이 안정적이고 신뢰할 수 있는 성능을 보장합니다.

제조업체

LDK

SKU

1058065

카테고리

Plummer Block Housing Units

상태

신제품

17 203 204 bearing bearings Bracket diameter durable FB Flange Housing Industrial LDK mm Precise Retention screw Set shaft Three-Bolt UC Ucfb Unit

방대한 재고

글로벌 배송

전문 지원

품질 보장

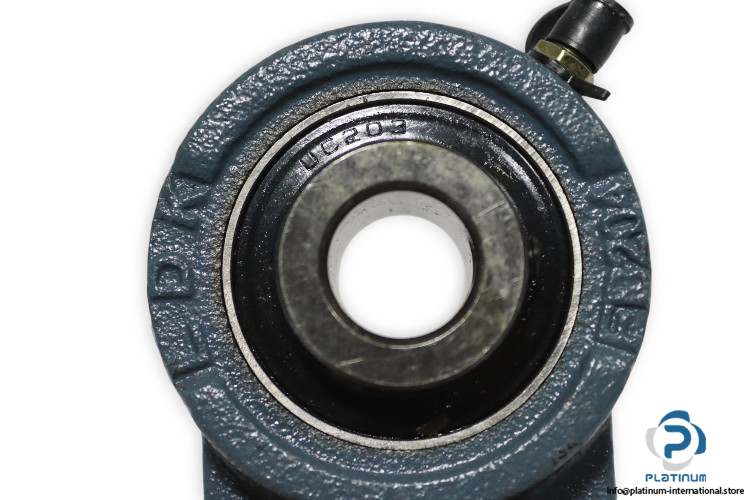

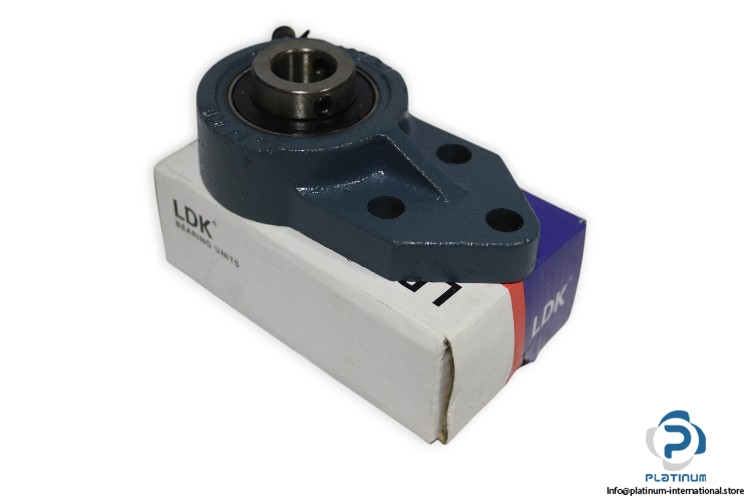

LDK UCFB 203 Three-Bolt Flange Bracket Unit

The LDK UCFB 203 Three-Bolt Flange Bracket Unit is a reliable and high-performance solution for industrial applications. Built with precision and durability, it features the FB 204 housing and UC 203 bearing, ensuring consistent performance and stability in demanding environments.

Manufacturer: LDK

Type: THREE-BOLT FLANGE BRACKET UNIT

Model: UCFB 203

Engineered for durability and ease of installation, the LDK UCFB 203 Three-Bolt Flange Bracket Unit is ideal for systems requiring stable, precise, and long-lasting performance.

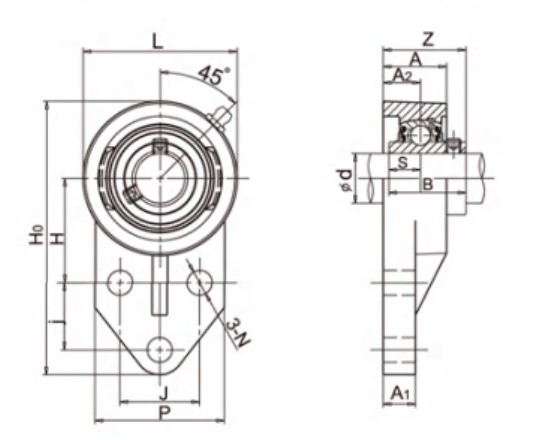

Bearing Number	UC 203
Housing Number	FB 204
Shaft Diameter (d)	17 mm
Overall Length	60 mm
A1	13 mm
Z	33.3 mm
A	25.5 mm
Overall Height	110 mm
Mounting Holes Distance (J)	32 mm
Diameter of Attachment Bolt Hole (N)	10 mm
Grease Fitting	M8
Mounting Type	Three-Bolt Flange
Retaining Feature, Inner Ring	Set Screws
