LDK UCFB203 Three-Bolt Flange Bracket Unit
جديد
متوفر30 وحداتجاهز للشحن
وحدة حامل فلانشة ذات ثلاثة براغي. تم تصميم وحدة الحامل LDK UCFB 203 للدقة والمتانة في التطبيقات الصناعية. تحتوي على هيكل FB 204 ومحمل UC 203، وتضمن أداء مستقر وموثوق.
17203204bearingbearingsBracketdiameterdurableFBFlangeHousingIndustrialLDKmmPreciseRetentionscrewSetshaftThree-BoltUCUcfbUnit
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

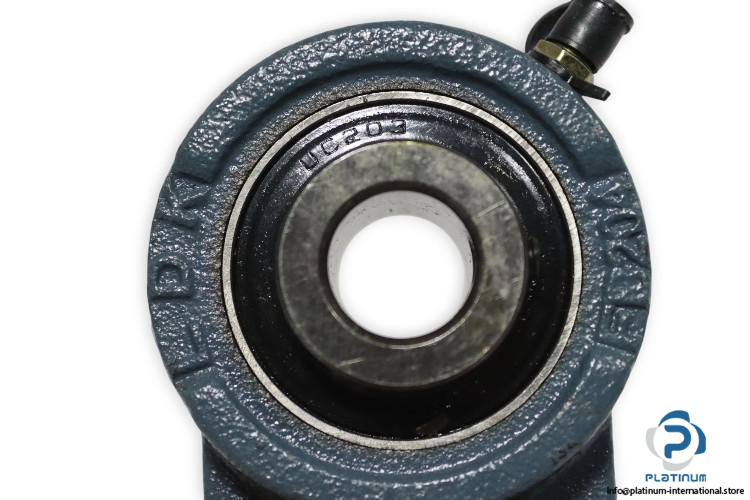

LDK UCFB 203 Three-Bolt Flange Bracket Unit
The LDK UCFB 203 Three-Bolt Flange Bracket Unit is a reliable and high-performance solution for industrial applications. Built with precision and durability, it features the FB 204 housing and UC 203 bearing, ensuring consistent performance and stability in demanding environments.
Manufacturer: LDK
Type: THREE-BOLT FLANGE BRACKET UNIT
Model: UCFB 203
Engineered for durability and ease of installation, the LDK UCFB 203 Three-Bolt Flange Bracket Unit is ideal for systems requiring stable, precise, and long-lasting performance.

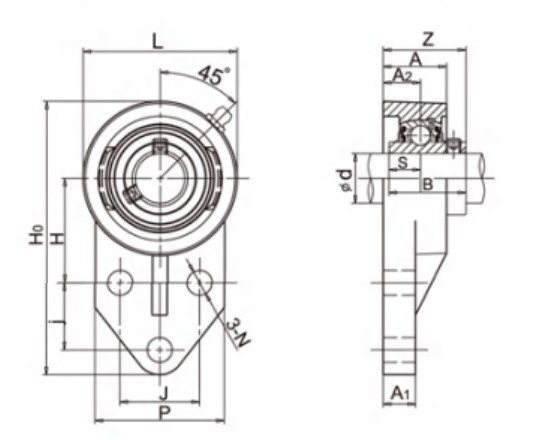

| Bearing Number | UC 203 |
| Housing Number | FB 204 |
| Shaft Diameter (d) | 17 mm |
| Overall Length | 60 mm |
| A1 | 13 mm |
| Z | 33.3 mm |
| A | 25.5 mm |
| Overall Height | 110 mm |
| Mounting Holes Distance (J) | 32 mm |
| Diameter of Attachment Bolt Hole (N) | 10 mm |
| Grease Fitting | M8 |
| Mounting Type | Three-Bolt Flange |
| Retaining Feature, Inner Ring | Set Screws |
