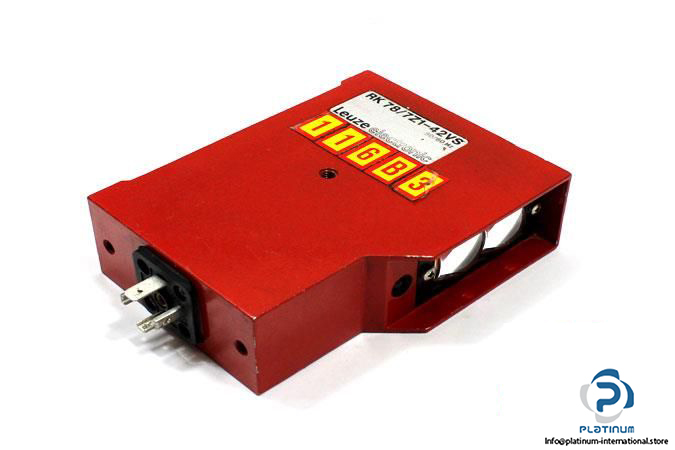

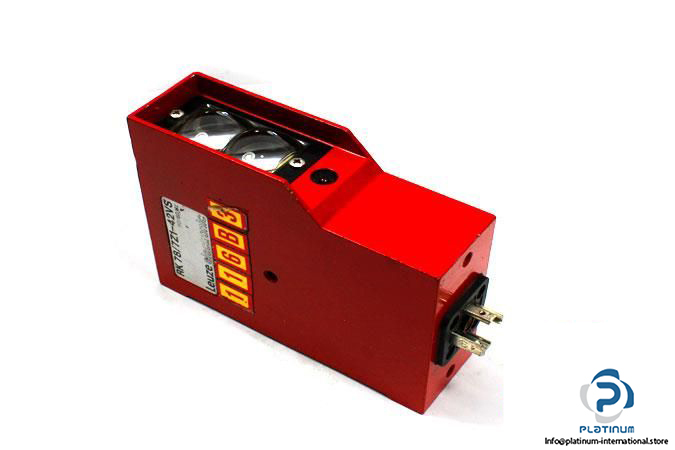

Leuze RK 78/7Z1-42VS Diffuse-Reflection Light Scanner Energetic
Manufacturer: LEUZE
Type: DIFFUSE-REFLECTION LIGHT SCANNER ENERGETIC

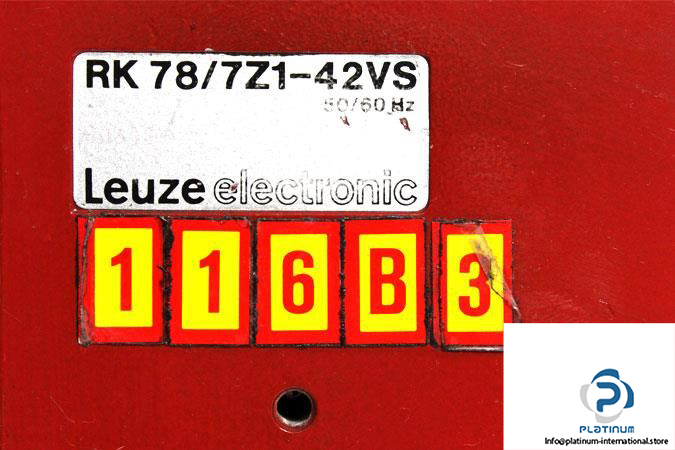

Order Code: RK 78/7Z1-42VS
Scanning range: 0 … 800 mm
Adjustment range: 5 … 100%
Response time: 25 ms
Operating Voltage: 42 V AC, at 50 … 60 Hz
Switching frequency: 20 Hz
Switching output: Relay

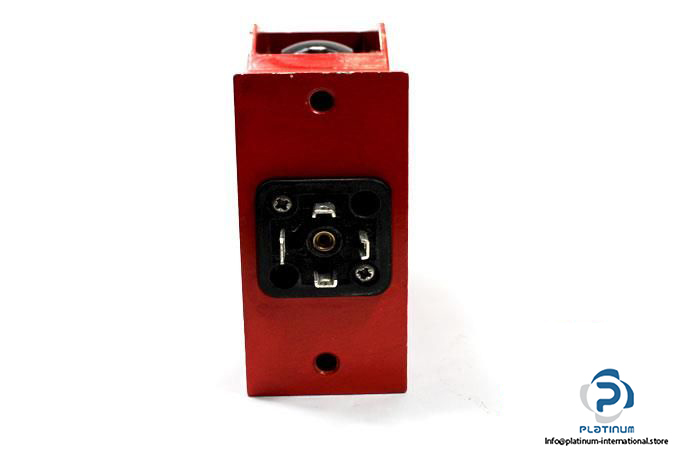

Connector type: Screw terminals
Protection class: I
Enclosure rating: IP65
Ambient Operating temperature: -20 … 60°C
Dimensions: 98 x 38 x 127 mm
Weight: 600 g
Housing: Rectangular
Housing material: aluminum diecast
Optics: Glass lens
Condition: Used
