LTN RE-15-1-A15 Resolver Encoder
중고
요청 시 제공 가능
190,00$
7 V 입력, 0.5% 변환비 및 최대 속도 20,000 rpm을 갖춘 RESOLVER ENCODER LTN RE151A15 리졸버 인코더. 12mm 중공 축으로 컴팩트하고 견고하며 고성능 산업용으로 설계됨.
방대한 재고
글로벌 배송
전문 지원
품질 보장

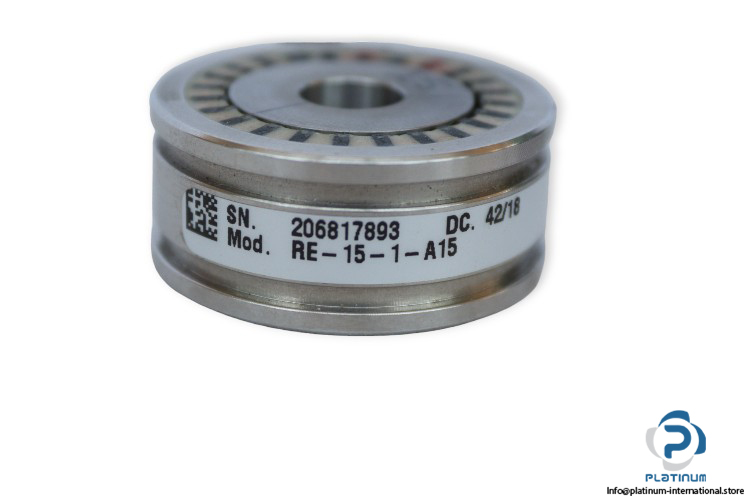

LTN RE151A15 RESOLVER ENCODER
The LTN RE151A15 is a high-precision resolver encoder engineered for extreme industrial conditions. It delivers accurate signal feedback in automation, robotics, and motion control systems. Part of the RE15 Series, this compact unit offers excellent durability and performance within a wide operating temperature range.
Manufacturer: LTN
Type: Resolver Encoder
Model: RE151A15
Part No.: 206817893
Ref No.: 42/18
Series: RE15
| Input Voltage | 7 V |
| Transformation Ratio | 0.5% |
| Permissible Speed | 20,000 rpm |
| Material | Metal |
| Temperature Range | -55 / 155 °C |
| Hollow Shaft Diameter (Max.) | 12 mm |
| Outer Diameter | 36.8 mm |
| Length | 16 mm |
