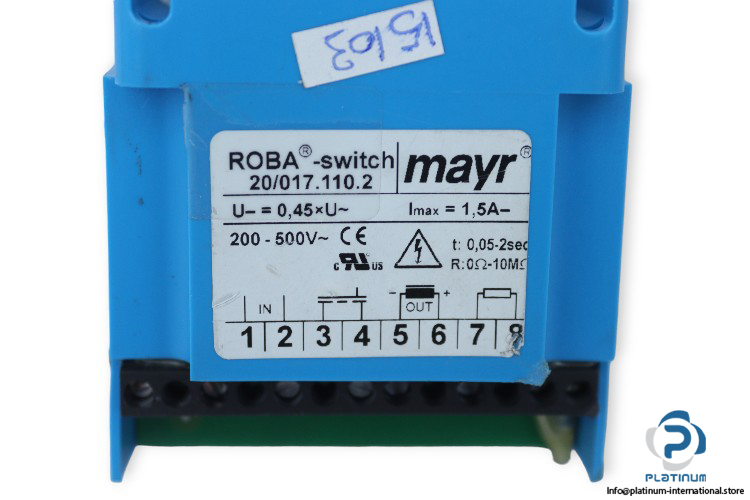

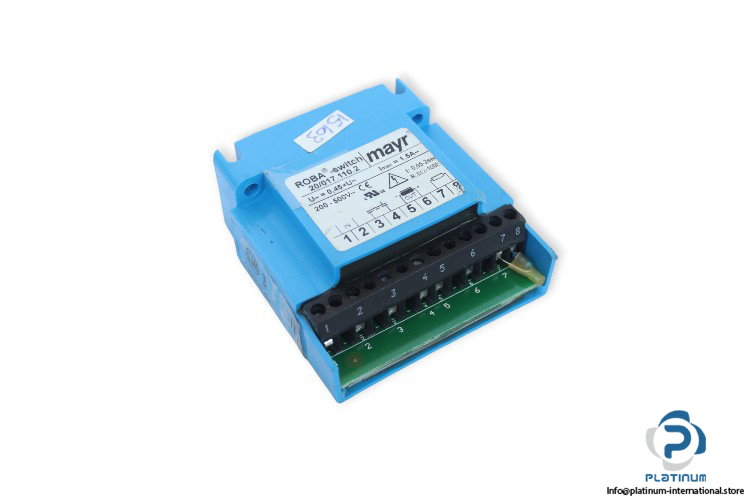

Mayr 20/017.110.2 Fast Acting Rectifier

Name: MAYR 20/017.110.2 FAST ACTING RECTIFIER
SKU: 1044445
Availability: LimitedAvailability

mayr-20_017.110.2-fast-acting-rectifier-(used)

mayr-20_017.110.2-fast-acting-rectifier-(used)-1

mayr-20_017.110.2-fast-acting-rectifier-(used)-2

중고

재고 있음19 단위즉시 배송 가능

제조사: Mayr 유형: 빠른 동작 정류기 모델: 20017.110.2 ART. 번호: 8180155

제조업체

MAYR

SKU

1044445

카테고리

Brake Rectifiers

상태

중고

Acting Brake Fast Mayr Rectifier Rectifiers Roba Switch

방대한 재고

글로벌 배송

전문 지원

품질 보장

Manufacturer: Mayr
Type: Fast acting rectifier
Model: 20017.110.2

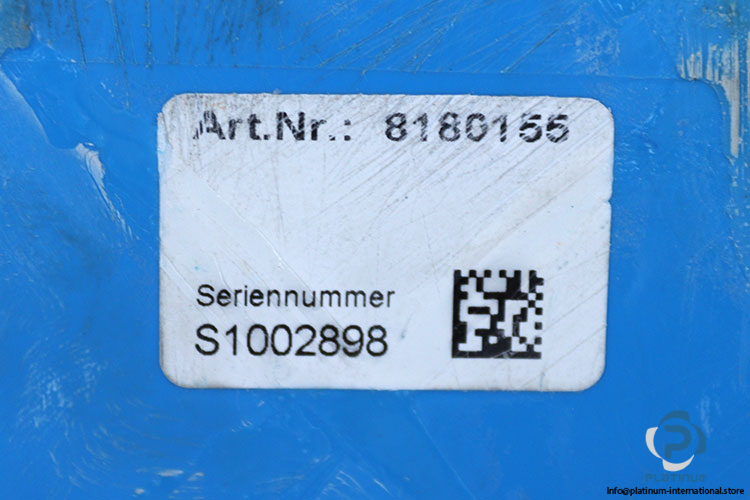

ART. No.: 8180155

Input voltage: 400 V AC (200 … 500 V AC)
Maximum output current I_RMS: 1.5 A
Overexcitation time: 0.05 … 2 s
External resistors: 0 … 10 Mohm
Output voltage U_half-wave: 90 … 225 V DC
Device fuses: FF 4 A (H) (6.3 x 32 mm)
Protection degree: IP65 components, IP20 terminals
Terminals: Nominal cross-section 1.5 mm²(AWG 22-14), screws M3
Tightening torque: 0.5 Nm max.
Ambient temperature: -25 … +70°C
Size: 20
Dimensions: 69 x 73.6 x 30 mm
