MB3510 Bridge Rectifier
중고
재고 있음2 단위즉시 배송 가능
MB3510 브리지 정류기 “1000 V 피크 역전압, 35 A 출력 전류, -55에서 175 °C까지 온도 범위를 갖는 고성능 단상 실리콘 정류기. 산업용 전력 변환 응용에 적합.”
400AAverageBlockingbridgeConversionCurrentdcDrivesElectronicsforForwardIndustrialMB3510motorOutputPowerRectifiedRectifierRectifiersSiliconSingle-PhaseSuppliesSurgevoltage
방대한 재고
글로벌 배송
전문 지원
품질 보장

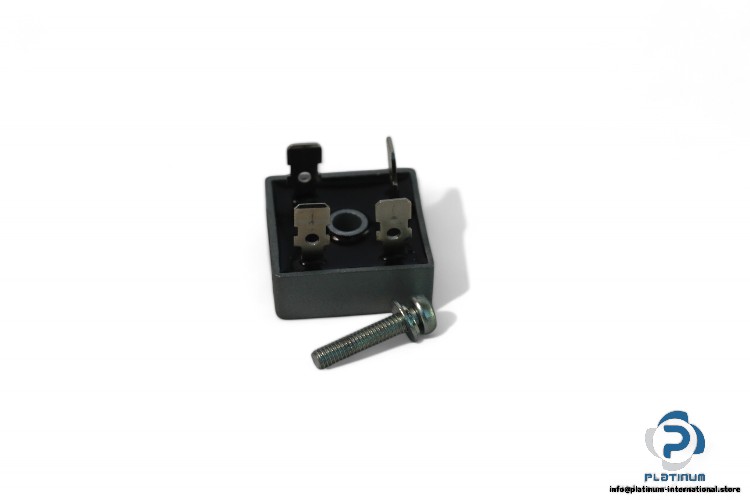

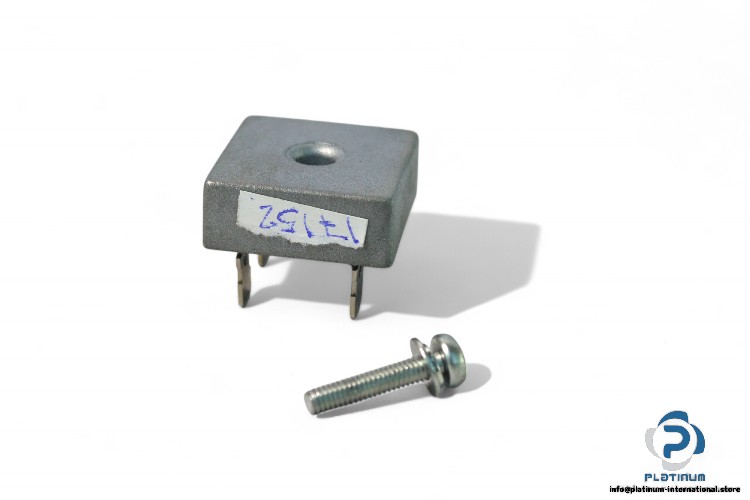

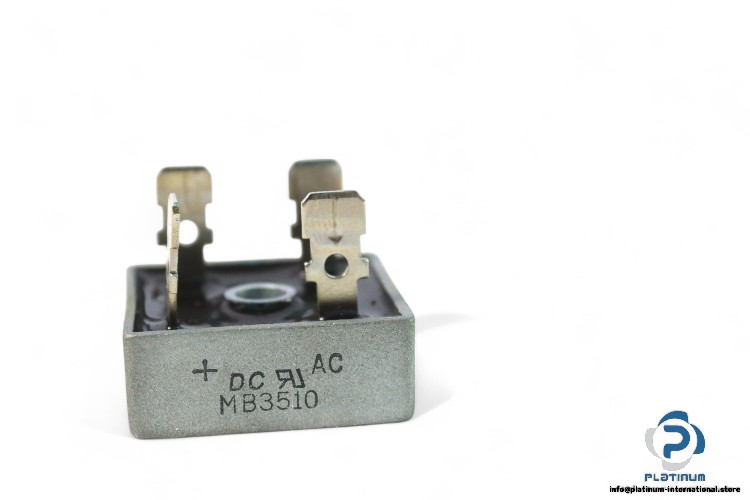

BRIDGE RECTIFIER MB3510 – Single-Phase Silicon
The MB3510 Bridge Rectifier is a high-performance single-phase silicon rectifier designed for efficient power conversion in demanding electrical systems. With a wide operating temperature range and robust electrical specifications, this bridge rectifier ensures reliable performance in industrial and power electronics applications.
Key features include:
- Maximum Recurrent Peak Reverse Voltage: 1000 V
- Maximum RMS Bridge Input Voltage: 700 V
- Maximum DC Blocking Voltage: 1000 V
- Peak Forward Surge Current: 400 A
- Maximum Average Forward Rectified Output Current at Tc = 55 °C: 35 A
- Maximum Forward Voltage Drop per Element at 17.5A DC: 1.1 V
- Operating Temperature Range: -55 / 175 °C
Designed for high efficiency and durability, the MB3510 rectifier is perfect for use in systems requiring high surge current handling and stable performance under extreme temperatures. Ideal for applications in power supplies, motor drives, and other industrial power conversion setups.
