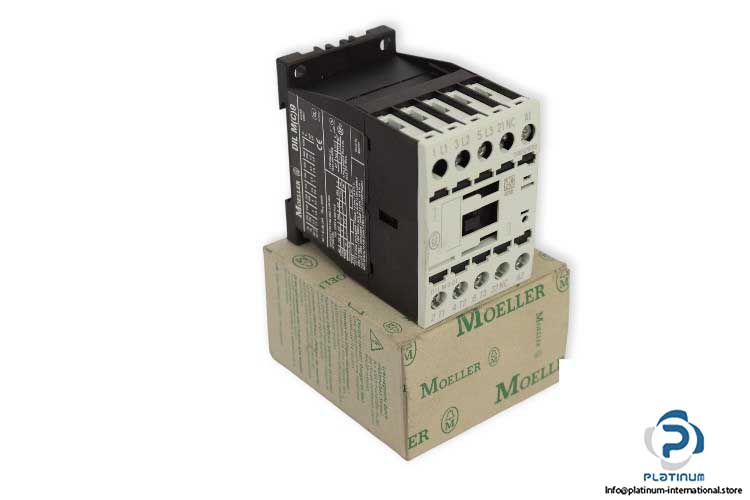

Moeller DILM9-01 Contactor

Manufacturer: Moeller
Type: Contactor
Model: DILM901
Part No.: 276740
EL No.: 4130290
EAN: 4015082767402

Coil Voltage: 24 V AC
Frequency: 50 … 60 Hz
Operating Voltage: 400 V AC
Power: 2.5 … 4.5 kW (220 … 690 V AC) , 4 kW (380 … 400 V AC)/ 1.5 … 3.6 kW (220 … 690 V), 2.5 kW (380 … 400 V AC)
Thermal Current: 20 A
Impulse withstand Voltage: 8000 V
No. of Phase: 3

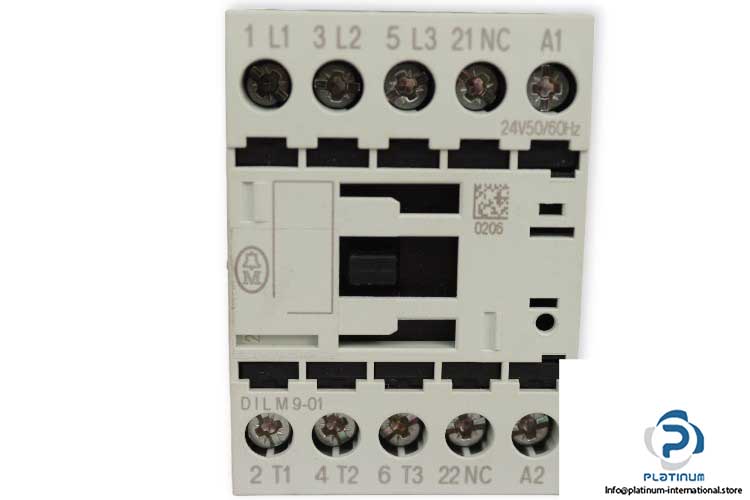

Contact Configuration: 1 Normally Close
Protection degree: IP20
Ambient Temperature: -25 … 60 °C
Dimension: 75 X 68 X 45 mm
