MTS RHM1350MD701S2G1100 Linear-Position Sensor
신제품
재고 있음1 단위즉시 배송 가능
선형 위치 센서 MTS RHM1350MD701S2G1100은 1350 mm 스트로크, 24비트 그레이 데이터, 0.005 mm 해상도를 갖춘 유압식 로드형 선형 센서로, 이진 출력 및 IP67 보호를 제공합니다.
135024-BitGrayHydraulicIndustrialIP67LinearmmMTSPositionRHM1350MD701S2G1100RODSensorStrokeTransducer
방대한 재고
글로벌 배송
전문 지원
품질 보장

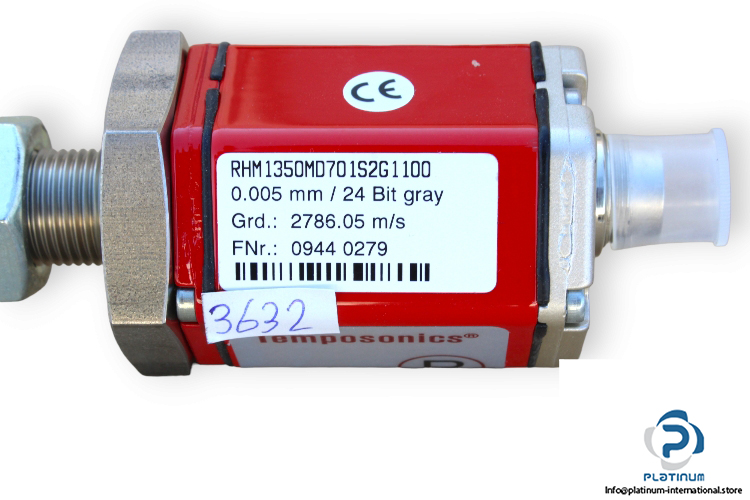

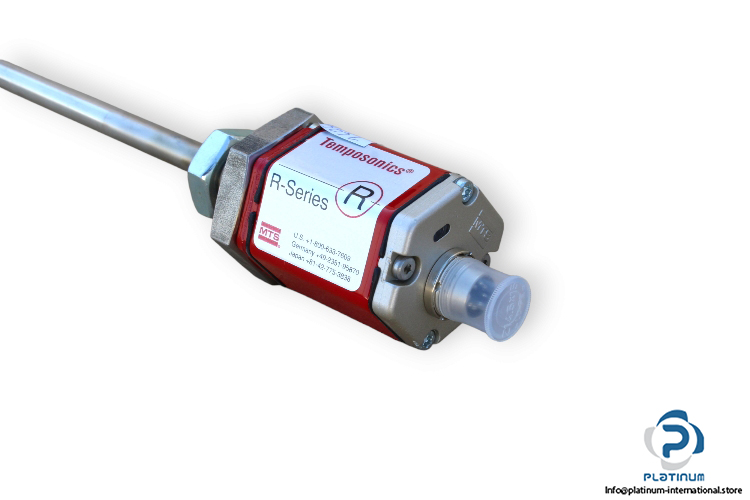

MTS RHM1350MD701S2G1100 LINEAR-POSITION SENSOR
This precision linear-position sensor from MTS is engineered for reliable and high-resolution measurements in hydraulic applications. Its robust construction and advanced binary output make it ideal for demanding industrial environments requiring accuracy and durability.
Manufacturer: MTS
Type: Linear-Position Sensor
Model: RHM1350MD701S2G1100
Ref No.: 0944 0279
| Input Voltage | +24 VDC (+20% / -15%) |
| Sensor Model | Hydraulic rod style |
| Electrical Stroke Length | 1350 mm |
| Data Length | 24 bits gray |
| Resolution | 0.005 mm |
| Mounting Torque | 45 N·m |
| Output Format | Binary |
| Housing Style | Metric threads, flat-faced flange and pressure tube, standard |
| GRD | 2786.05 m/s |
| Operating Temperature | -40 / 75°C |
| Protection Class | IP67 |
