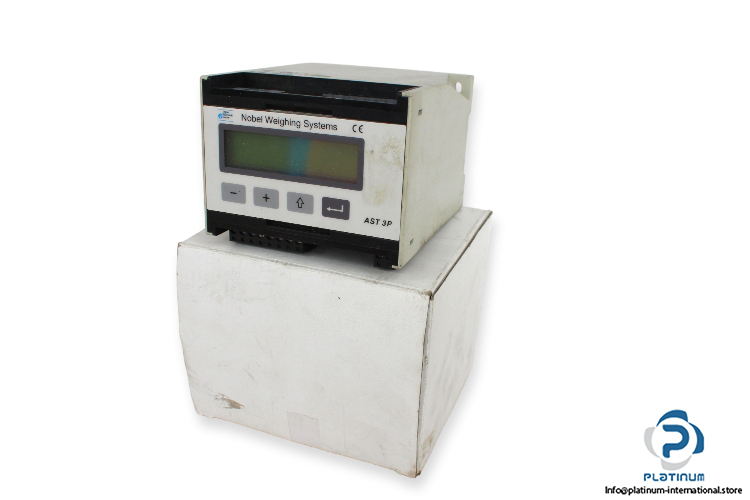

Nobel Weighing AST 3P Transmitter
신제품
재고 있음1 단위즉시 배송 가능
1 222,22$
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: Nobel Weighing
Type: Transmitter
Model: AST 3P

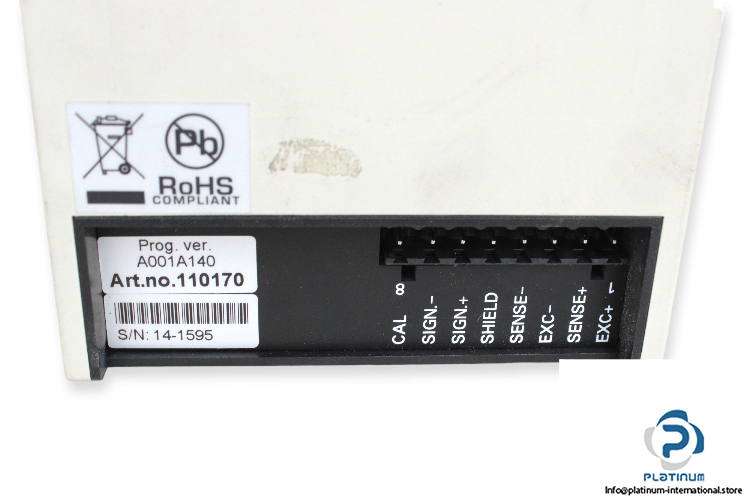

Art. No.: 110170
Supply voltage: 24 V DC ± 20%
Power Consumption: 7 W
Interface: RS-485
No. of Digital Inputs (DI): 2
Analog Output: 16-bit, 0 … 10 or ±1 0 V DC
Input load: 24 VDC, 6 mA
Outputs: 2 Relay, max. 1 A, 30 V AC
Resolution: 8,300,000 counts

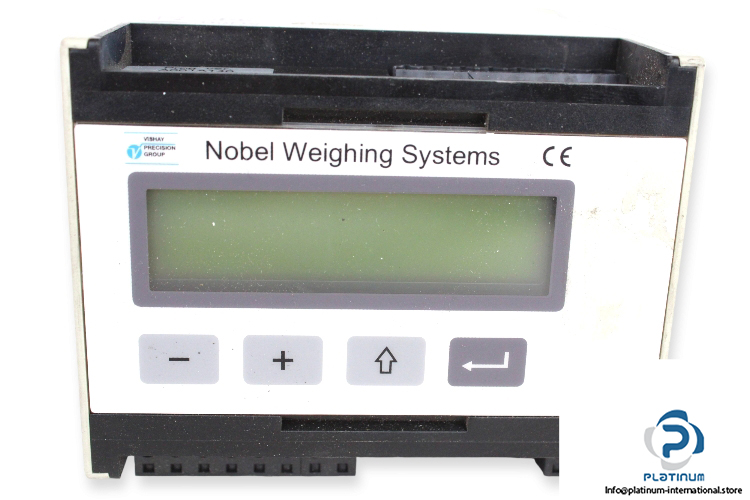

Display Type and Size: 2× 6-character LCD display with backlight
Protection degree: IP20

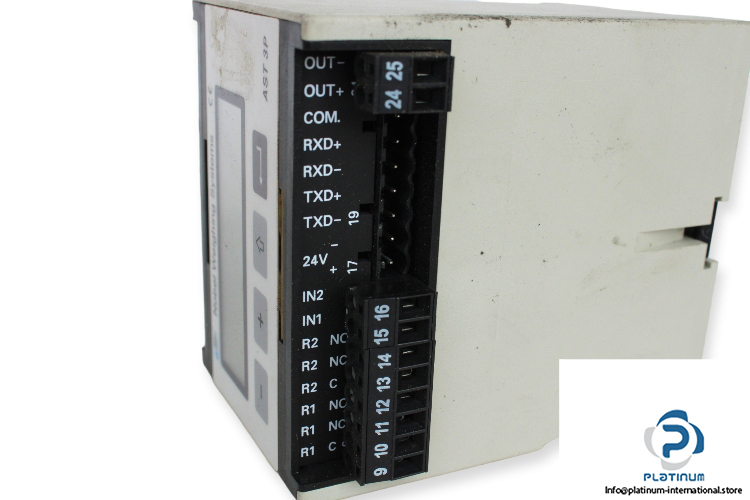

Connector Type: Plug-in screw terminals
Operating Temperature: -10 … +50°C
Dimensions: 75 × 100 × 110 mm
