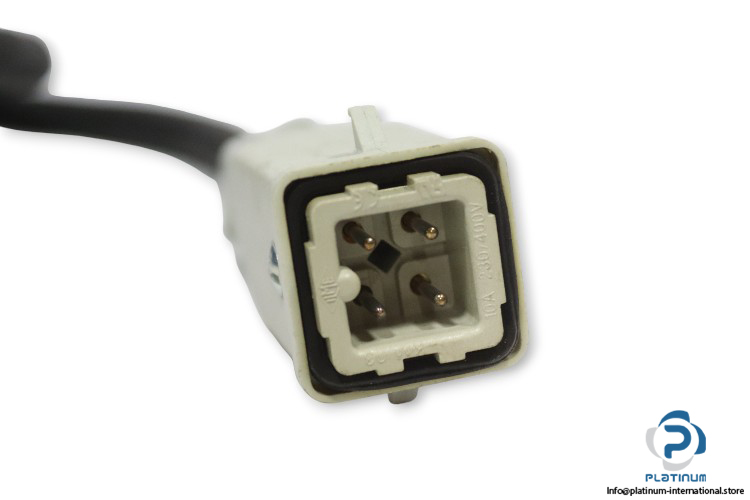

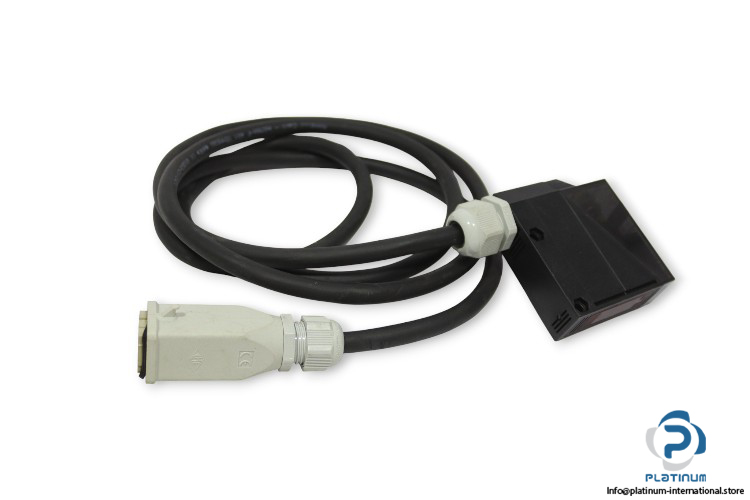

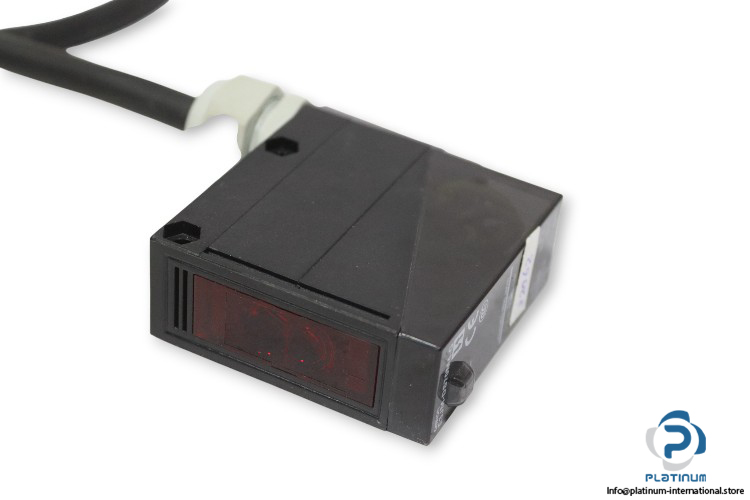

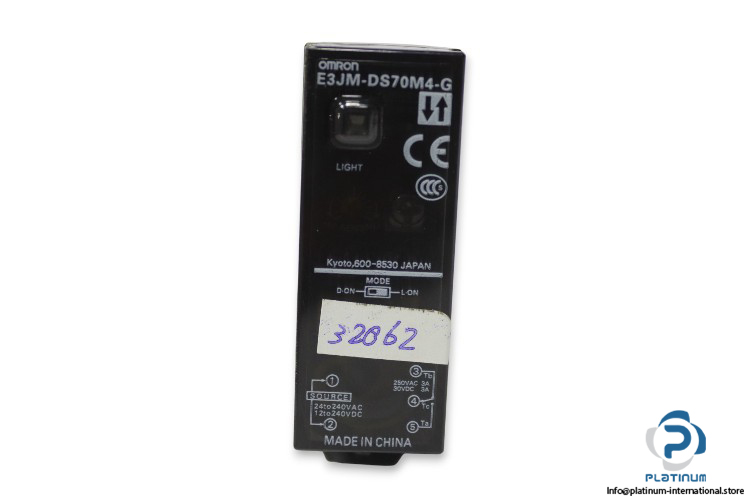

Omron E3JM-DS70M4-G Photoelectric Sensor With Cable

Name: OMRON E3JM-DS70M4-G PHOTOELECTRIC SENSOR WITH CABLE
SKU: 1100618
Availability: LimitedAvailability

omron-e3jm-ds70m4-g-photoelectric-sensor-with-cable(new)

omron-e3jm-ds70m4-g-photoelectric-sensor-with-cable(new)-1

omron-e3jm-ds70m4-g-photoelectric-sensor-with-cable(new)-2

omron-e3jm-ds70m4-g-photoelectric-sensor-with-cable(new)-3

신제품

재고 있음1 단위즉시 배송 가능

Photoelectric Sensor The Omron E3JM-DS70M4-G is a diffuse-reflective photoelectric sensor with a 700 mm sensing distance, infrared LED, and SPDT relay output for reliable industrial object detection.

제조업체

OMRON

SKU

1100618

카테고리

Sensors

상태

신제품

방대한 재고

글로벌 배송

전문 지원

품질 보장

REF NO	256-449
Shape	Square Type
Sensing Method	Diffuse-Reflective
Sensing Distance	White Paper 200 x 200 mm: 700 mm
Light Source	Infrared LED (950 nm)
Power Supply Voltage	12 to 240 VDC / 24 to 240 V AC
Power Consumption	2 W
Control Output	Relay Output (SPDT)
Output Rating	250 VAC 3 A (cosÏ† = 1) Max.
Minimum Load	5 VDC 10 mA Min.
Operation Mode	Light-ON / Dark-ON Selectable
Response Time	Operate or Reset: 30 ms Max.
Sensitivity Setting	Single-Turn Adjustment
Ambient Illuminance	Incandescent Lamp: 3,000 lx Max.
Connection Method	Terminal Block Models
Connection	Cable
Material Case	ABS
Ambient Temperature Operating	-25 to 55 °C
Stock key	CON-003
Condition	New
SKU	1100618
Weight	0,4
