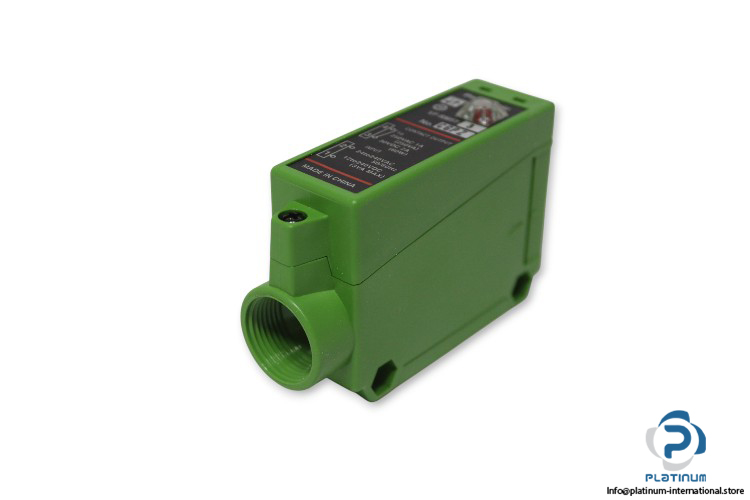

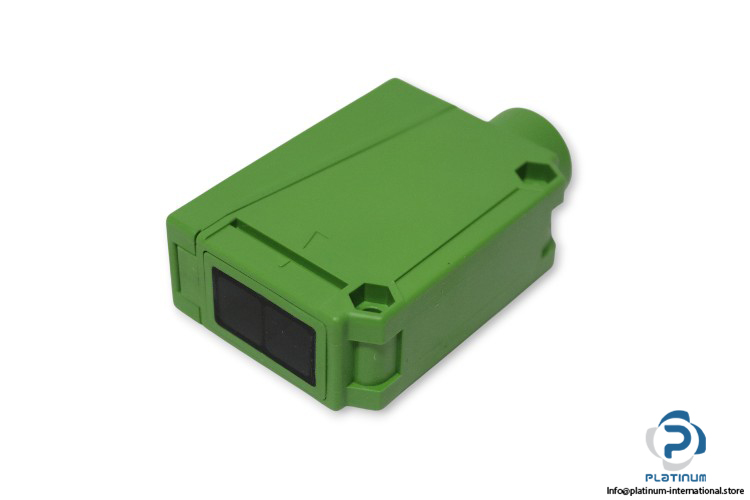

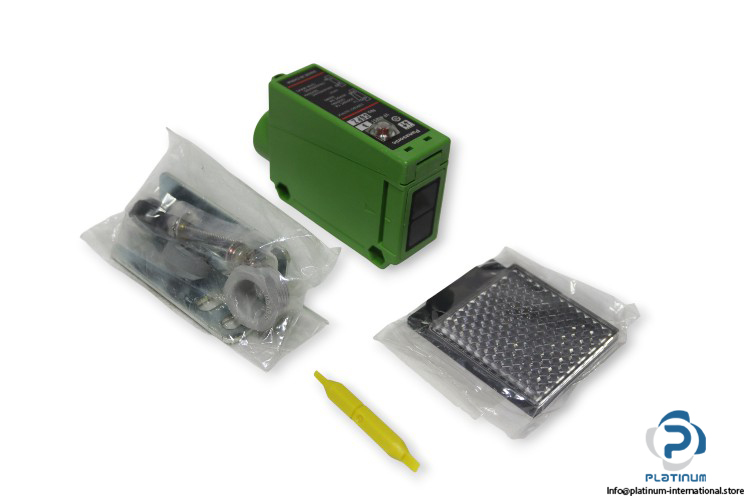

Panasonic VF-RM5T-3 Retroreflective Sensor
The Panasonic VFRM5T3 Retroreflective Sensor is a reliable and flexible detection device designed for medium-distance sensing applications. Offering selectable Light-ON/Dark-ON modes, timer functions, and IP66 protection, it ensures stable and accurate performance in demanding industrial environments.
Manufacturer: Panasonic
Type: Retroreflective Sensor
Model: VF-RM5T-3
Part No.: 0104-2601-00
| Series | VF |
| Sensing Range | 0.1 to 5 m |
| Rated Voltage | 24 to 240 V AC / 12 to 240 V DC |
| Power Consumption | 3 VA |
| Contact | Normally Open (NO) |
| Output Current | 100 mA |
| Operation Mode | Switchable Light-ON or Dark-ON |
| Operation Indicator | Red LED (Lights Up when Output is ON) |
| Timer Function | ON-Delay, OFF-Delay, One Shot |
| Connection | Screw-on Terminal Connection |
| Material | PBT |
| Protection Class | IP66 |
| Temperature | -10 / 60 °C |
| Dimensions | 55 x 26 x 75 mm |
