Pizzato VF B501 Position Switch
신제품
재고 있음1 단위즉시 배송 가능
Position Switch for Indoor Use
The Pizzato VF B501 features a technopolymer plunger actuator, snap-action contacts, and high-rated voltage up to 500 V AC / 600 V DC. Ideal for precise and reliable control in indoor industrial environments.
방대한 재고
글로벌 배송
전문 지원
품질 보장

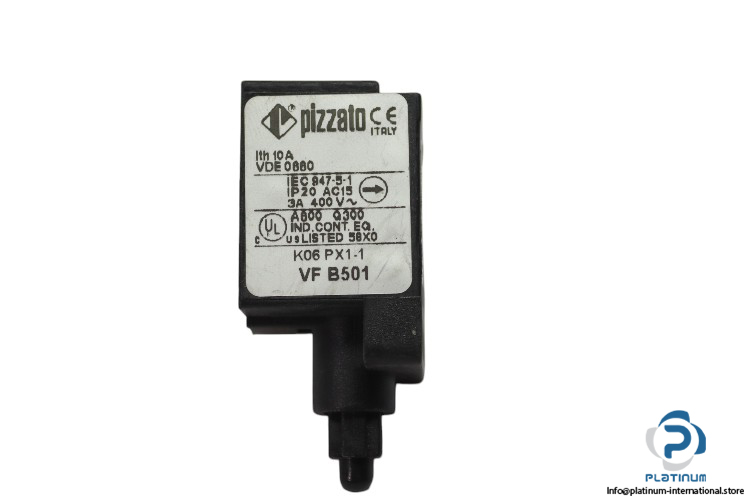

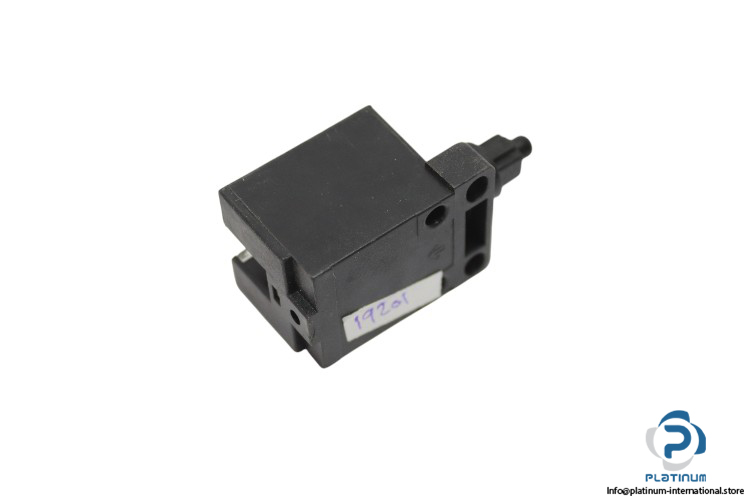

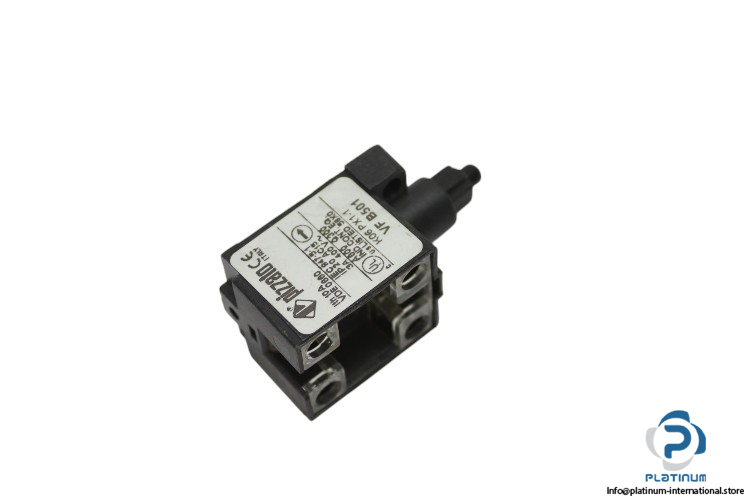

Pizzato VF B501 Position Switch for Indoor Use
The Pizzato VF B501 is a reliable and compact position switch for indoor use, designed for safety and precision in industrial automation systems. Equipped with a technopolymer plunger actuator, it features snap-action contacts, high voltage ratings, and robust performance in a wide temperature range.
Manufacturer: Pizzato
Type: Position Switch for Indoor Use
Model: VF B501
| Actuator | With technopolymer plunger (standard) |
| Operating Voltage | 400 V, 3 A |
| Rated Voltage | 500 V AC / 600 V DC |
| Rated Thermal Current | 10 A |
| Rated Impulse Withstand Voltage | 6 kV |
| Contact Type | 1NO + 1NC, snap action |
| Protection Class | IP20 / IP40 |
| Operating Temperature Range | -40 to 80 °C |
| Connection Size | 19 mm |
