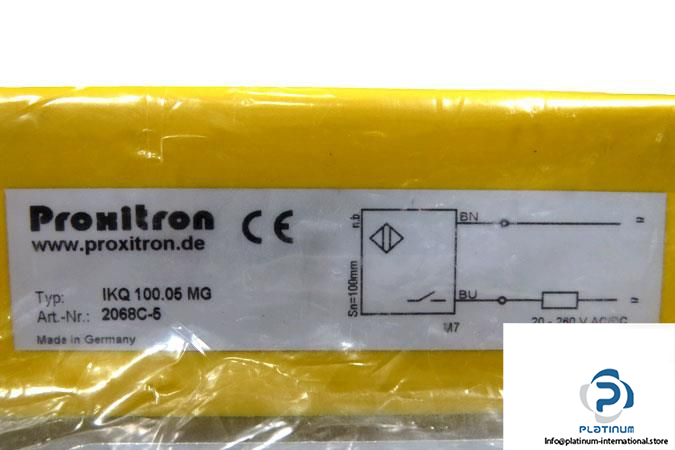

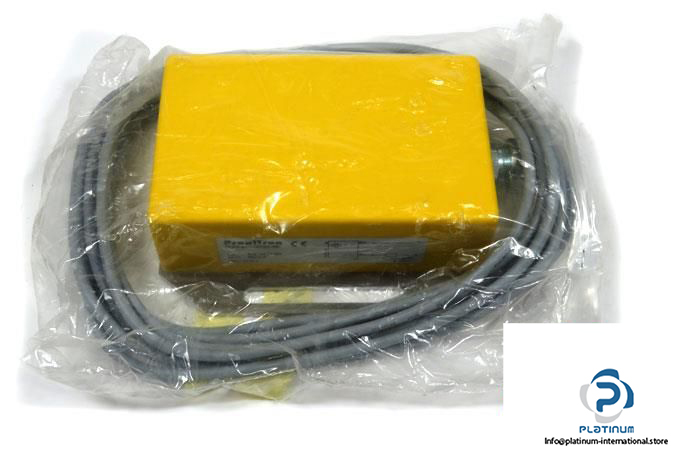

Proxitron IKQ 100.05 MG Inductive Proximity Switch

Manufacturer: PROXITRON

Type: INDUCTIVE PROXIMITY SWITCH

Model: IKQ 100.05 MG

Art Nr.: 2068C-5

Sensing Range: 100 mm

Operating Voltage: 20 … 260 V AC/DC, at 40 … 440 Hz for AC

Switching frequency: 50 Hz

Switching output current: 5 … 400 mA

Output Function: Normally open

Connector type, length: Cable, 5 m

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -20 … 80°C

Dimensions: 98 x 56 x 150 mm

Material: PBT

Mounting: Non-flush mountable

Weight: 1.73 Kg

Condition: New
