Saci TU-30 Current Transformer
중고
재고 있음1 단위즉시 배송 가능
400/5 A 변환비를 가진 고정밀 Saci 전류 변환기로, 전기 판넬 및 산업용 전력 시스템에서 정확한 전류 측정 및 보호를 위해 설계되었습니다.
방대한 재고
글로벌 배송
전문 지원
품질 보장

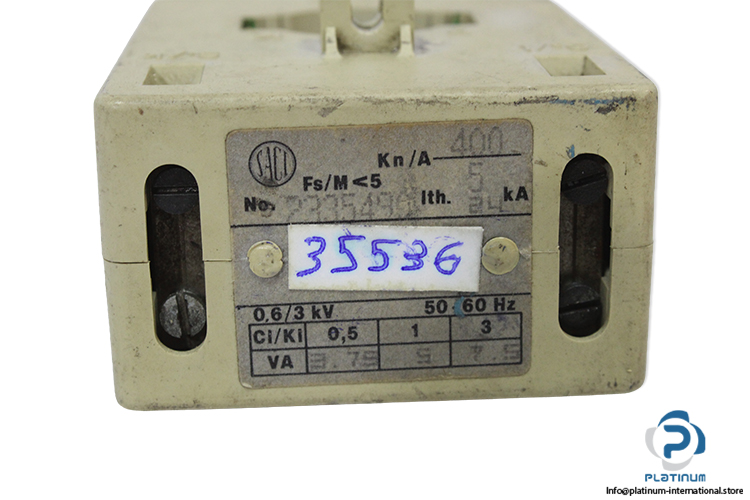

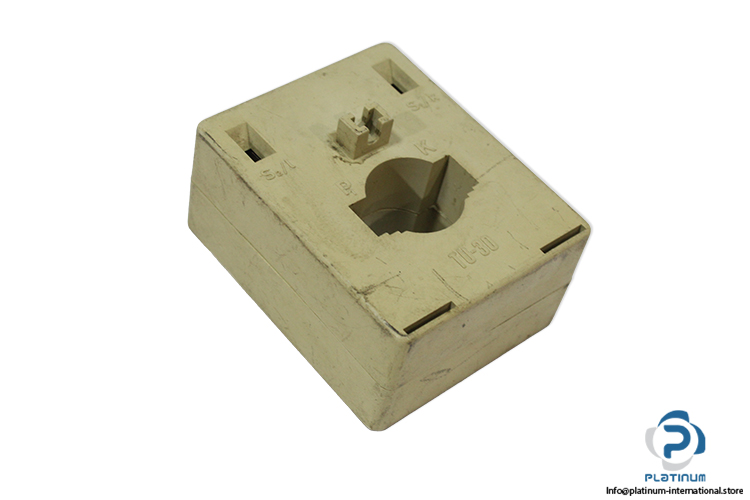

Saci TU30 Current Transformer
The Saci TU30 Current Transformer is a precision electrical measurement device designed for accurate current monitoring and protection in industrial power systems. Built for reliability and stable performance, this transformer is widely used in electrical panels, switchboards, and energy monitoring systems where dependable current measurement is essential.
Manufacturer: Saci
Type: Current Transformer
Model: TU30
Part No.: 2335490
Rated Burden (VA):
| Transformation Ratio | 400 / 5 A |
| Accuracy Class (Cl / Kl) | 0.5 - 1 - 3 |
| Rated Frequency | 50 / 60 Hz |
| Insulation Voltage | 0.6 / 3 kV |
| Class 0.5 | 3.75 VA |
| Class 1 | 5 VA |
| Class 3 | 7.5 VA |
| Recommendation | The Saci TU30 Current Transformer is an excellent choice for electrical panels, power distribution systems, and energy monitoring installations where accurate current measurement and system protection are required. Its multiple accuracy classes and robust insulation rating make it suitable for a wide range of industrial and commercial applications. |
