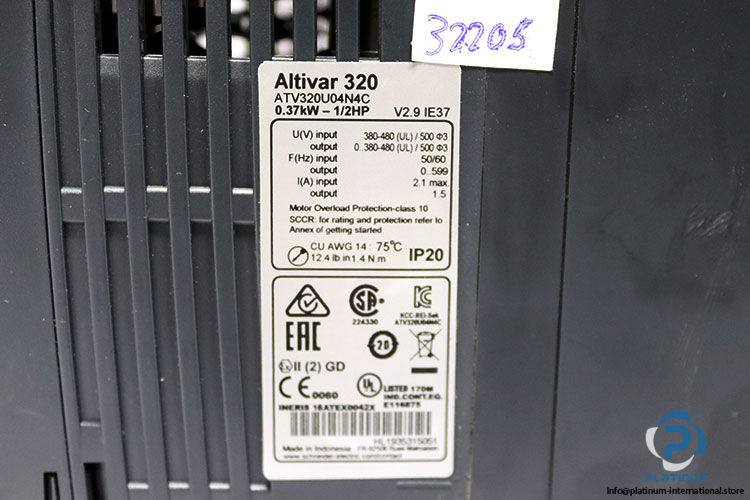

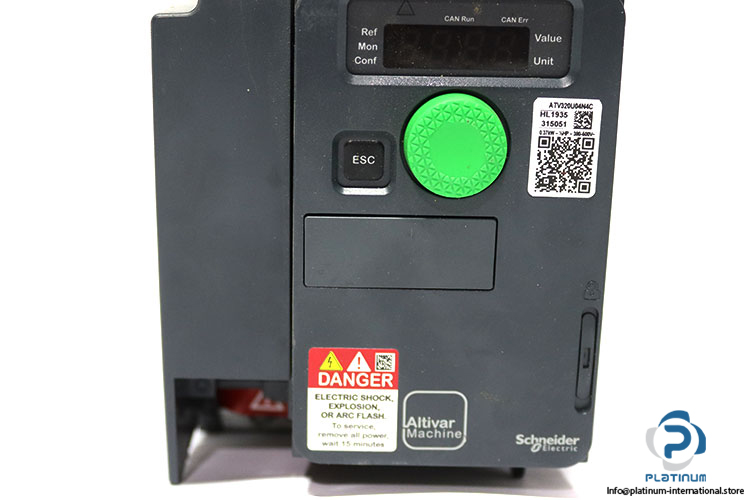

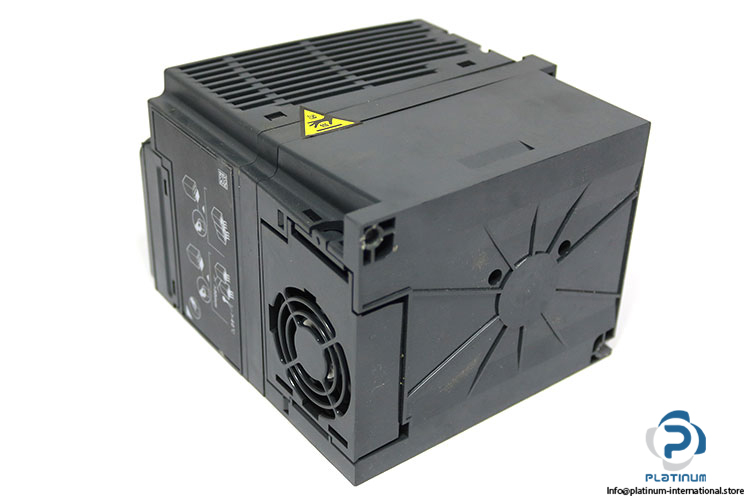

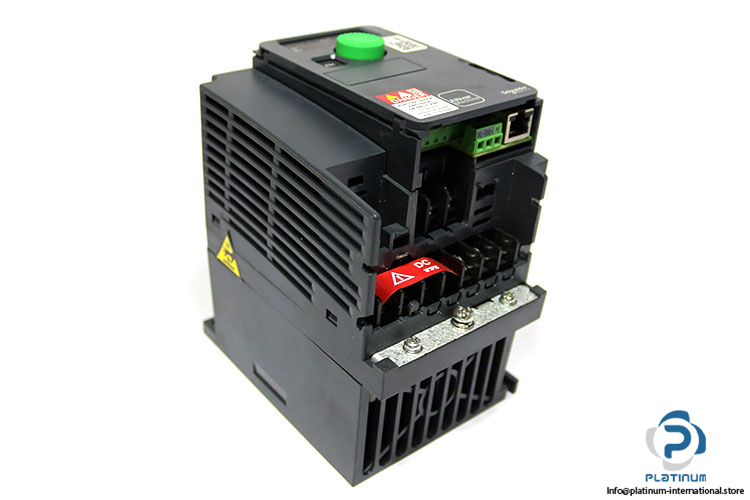

Schneider ATV320U04N4C Variable Speed Drive

재고 있음1 단위즉시 배송 가능

188,88$

Variable Speed Drive

The Schneider ATV320U04N4C is a compact drive for complex machines, offering advanced motor control, wide communication capability, and reliable performance from 380 to 500 volts.

제조업체
SCHNEIDER
SKU
1084222
상태
신제품
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

Schneider ATV320U04N4C Variable Speed Drive

The Schneider ATV320U04N4C is a compact and versatile variable speed drive designed for complex industrial machines. Part of the Altivar Machine ATV320 range, it offers advanced motor control, wide communication compatibility, and reliable performance in demanding automation environments.

Manufacturer: Schneider

Type: Variable Speed Drive

Model: ATV320U04N4C

Nominal Output Current:

Range of ProductAltivar Machine ATV320
Product or Component TypeVariable speed drive
Product Specific ApplicationComplex machines
VariantStandard version
Format of the DriveCompact
Mounting ModeWall mount
Communication Port ProtocolModbus serial, CANopen
Option Card CompatibilityCANopen, EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet IP, DeviceNet
Rated Supply Voltage380 to 500 V (minus 15 percent to plus 10 percent)
Motor Power0.37 kW heavy duty
Motor Power HP0.5 HP
EMC FilterClass C2 filter integrated
IP Degree of ProtectionIP20
Discrete Inputs7
Discrete Input TypeSTO Safe Torque Off, DI1 to DI6 logic inputs 24 V DC, DI5 programmable pulse input up to 30 kHz
Discrete Input LogicPositive logic (source), Negative logic (sink)
Discrete Outputs3
Discrete Output TypeOpen collector 0 to 1 kHz, 30 V DC, 100 mA
Analogue Inputs3
Analogue Input AI10 to 10 V DC, 30 kOhm, 10 bit resolution
Analogue Input AI2Plus or minus 10 V DC, differential, 30 kOhm
Analogue Input AI30 to 20 mA or 4 to 20 mA, 250 Ohm
Analogue Outputs1
Analogue Output Type0 to 20 mA (800 Ohm), 0 to 10 V DC (470 Ohm), 10 bit resolution
Relay Output TypeConfigurable relay logic R1A 1 NO, R1B 1 NC, R1C, R2A 1 NO, R2C
Electrical Durability100000 cycles
Maximum Switching Current3 A at 250 V AC (resistive), 3 A at 30 V DC (resistive), 2 A at 250 V AC (inductive), 2 A at 30 V DC (inductive), 5 A at 250 V AC (resistive relay R2), 5 A at 30 V DC (resistive relay R2)
Minimum Switching Current5 mA at 24 V DC
Method of AccessSlave CANopen
4 Quadrant OperationTrue
Asynchronous Motor ControlV/f ratio 5 points, Flux vector control without sensor, Energy saving profiles
Synchronous Motor ControlVector control without sensor
Maximum Output Frequency0.599 kHz
Ambient Temperature for Operationminus 10 to 50 degree Celsius without derating
Width105 mm
Height142 mm
Depth158 mm
