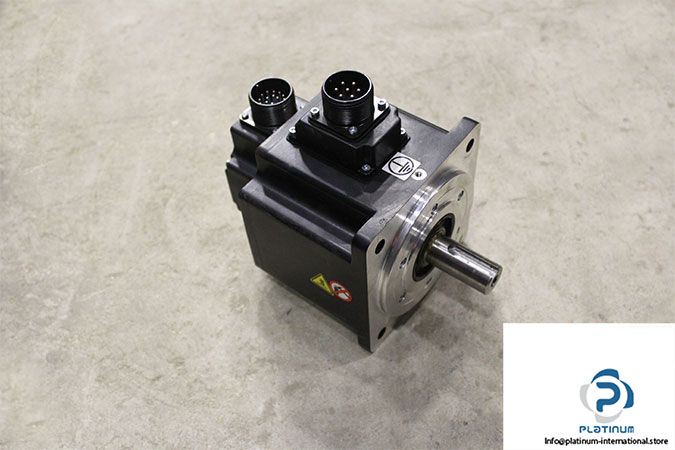

Schneider BCH2MM1023CA6C AC Servo Motor
신제품
재고 있음1 단위즉시 배송 가능
992,22$
방대한 재고
글로벌 배송
전문 지원
품질 보장

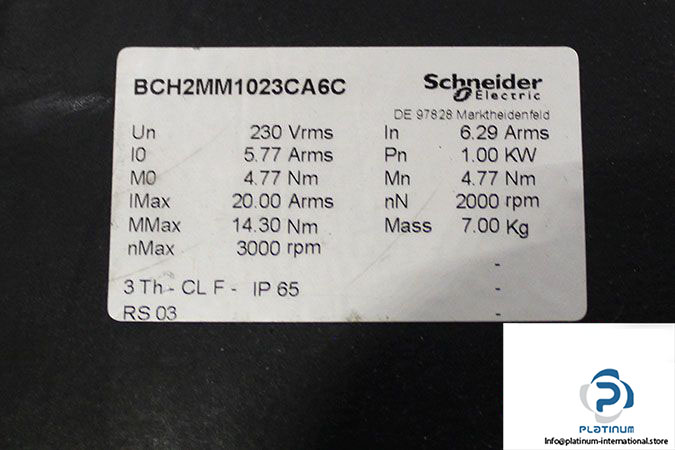

Manufacturer: Schneider Electric, Elau
Type: AC Servo Motors
Model: BCH2MM1023CA6C
Stall Torque [Nm]: 4.77
Rated Torque [Nm]: 4.77
Max Torque [Nm]: 14.3
Stall Current [A]: 5.77
Rated Current [A]: 6.29
Max Current [A]: 20
Rated Voltage [V]: 230
Rated Power [kW]: 1.0
Rated Speed [rpm]: 2000
Max Speed [rpm]: 3000
Number of Poles: 6
Shaft End: Keyed
Flange Size [mm]: 130
Shaft Diameter [mm]: 22
Shaft Length [mm]: 55
Key Width [mm]: 8
Protection Class [IP]: 65
Thermal Class: F
Weight [kg]: 6.65
