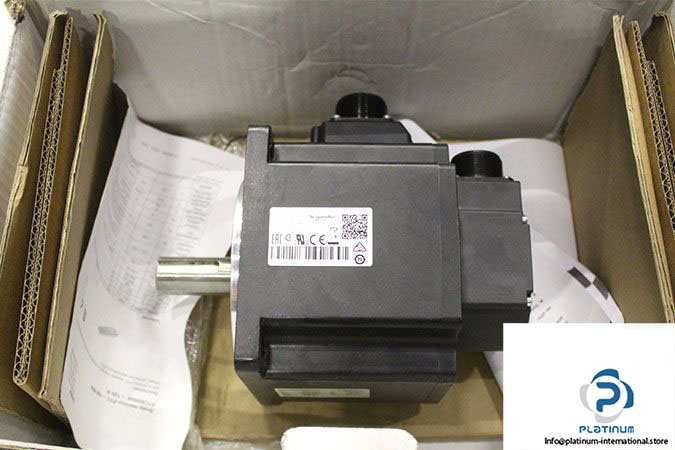

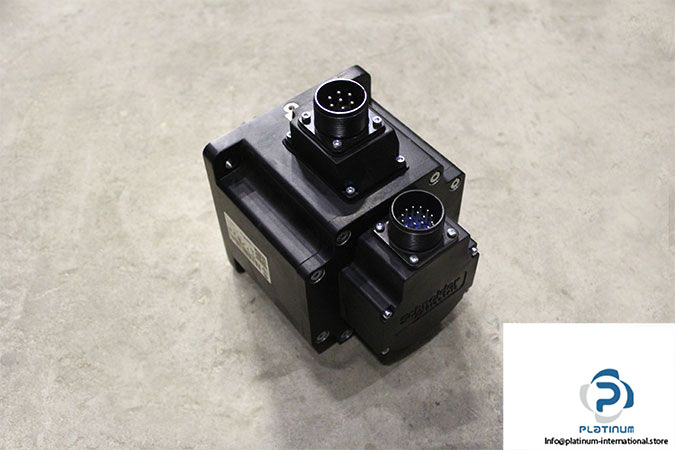

Schneider BCH2MM1023CA6C AC Servo Motor

Manufacturer: Schneider Electric, Elau

Type: AC Servo Motors

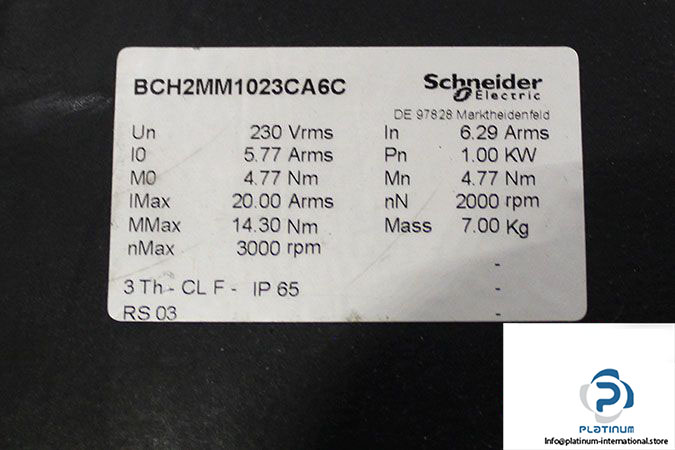

Model: BCH2MM1023CA6C

Stall Torque [Nm]: 4.77

Rated Torque [Nm]: 4.77

Max Torque [Nm]: 14.3

Stall Current [A]: 5.77

Rated Current [A]: 6.29

Max Current [A]: 20

Rated Voltage [V]: 230

Rated Power [kW]: 1.0

Rated Speed [rpm]: 2000

Max Speed [rpm]: 3000

Number of Poles: 6

Shaft End: Keyed

Flange Size [mm]: 130

Shaft Diameter [mm]: 22

Shaft Length [mm]: 55

Key Width [mm]: 8

Protection Class [IP]: 65

Thermal Class: F

Weight [kg]: 6.65
