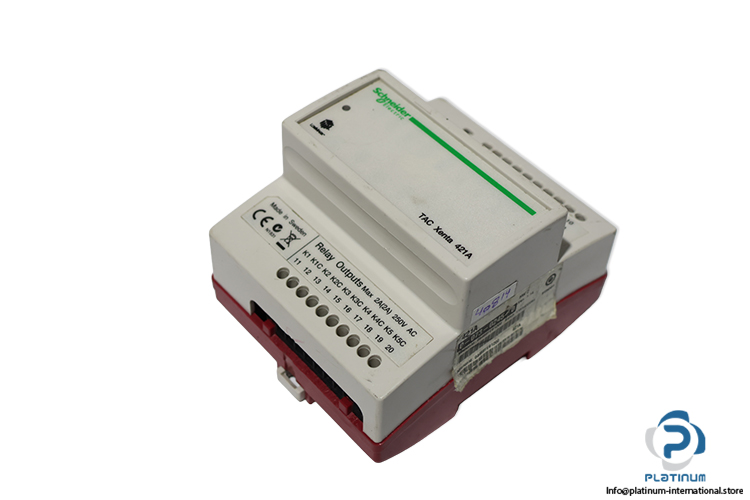

Schneider TAC Xenta 421A Universal Input/Digital Output Module
Used
In stock3 unitsReady to ship
Universal Input/Digital Output Module The Schneider TAC XENTA 421A is a 24 V AC universal input and digital output module with 4 universal inputs and 5 digital outputs for automation and control systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 007301500 |

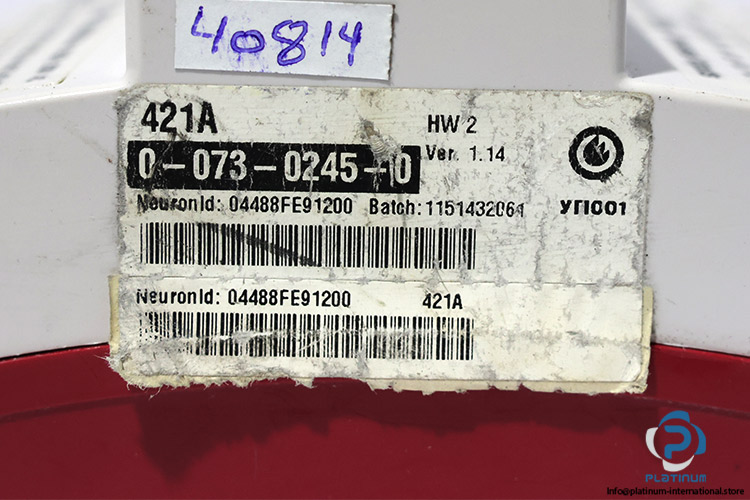

| Neuron ID | 04488FE91200 |
| Batch No. | 1151432064 |
| Power Supply | 24 V AC |
| Transformer Sizing | 8 VA |
| Frequency | 50 … 60 Hz |
| Power Consumption Max. | 5 W |

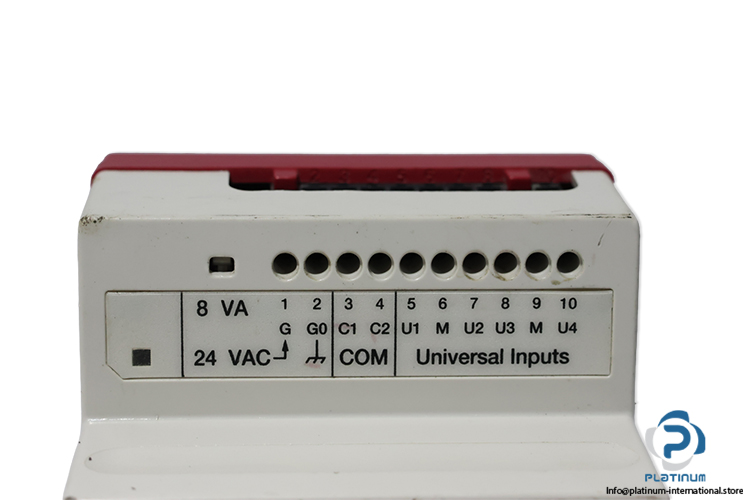

| Universal Inputs UI No. | 4 Current (0–20 mA), or Voltage (0–10V DC) Signals. |

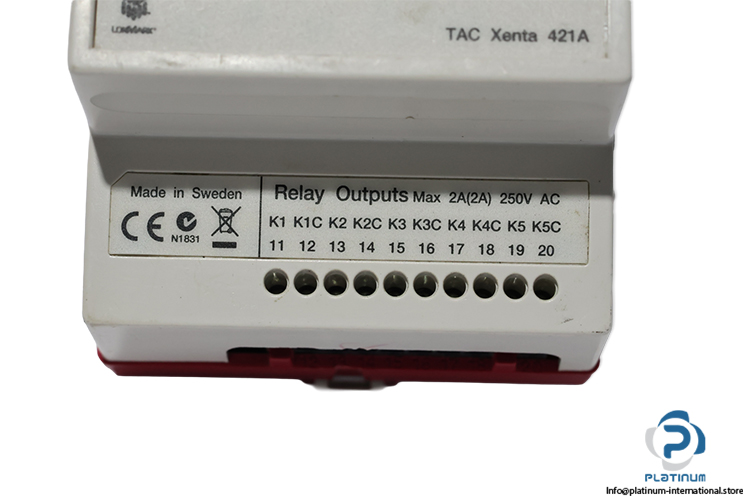

| Digital Outputs DO No. | 5 (handles up to 2A, 250V AC) |
| Protection Class | IP20 |
| Temperature | 0 … 50 °C |
| Dimensions | 90 x 110 x 77 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1104289 |
| Weight | 0,27 |
