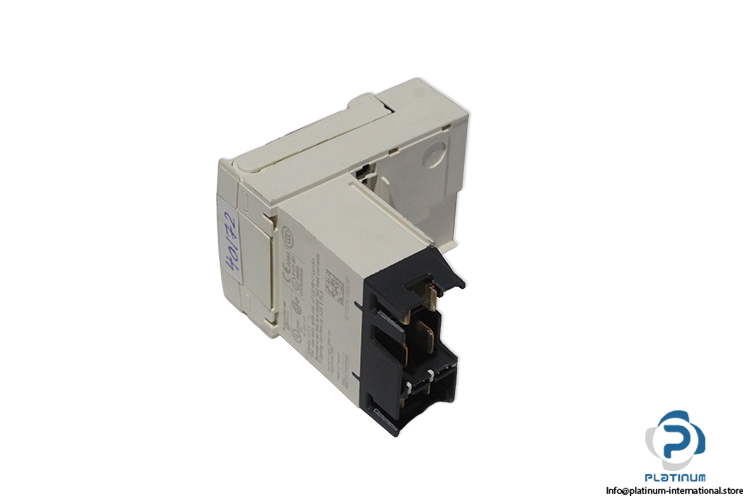

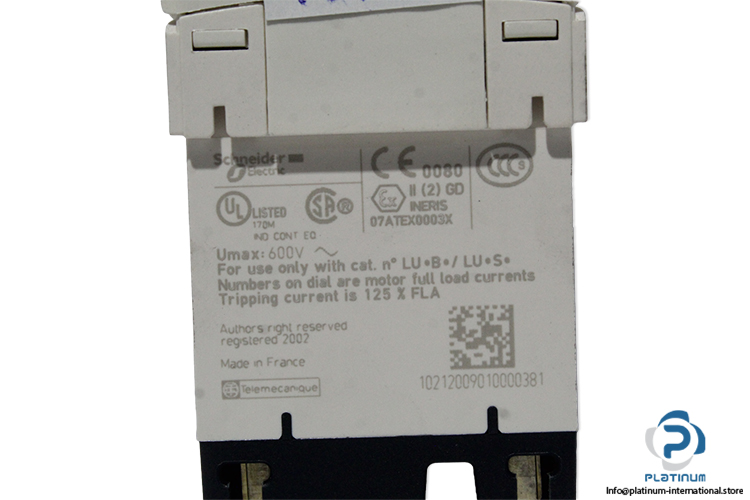

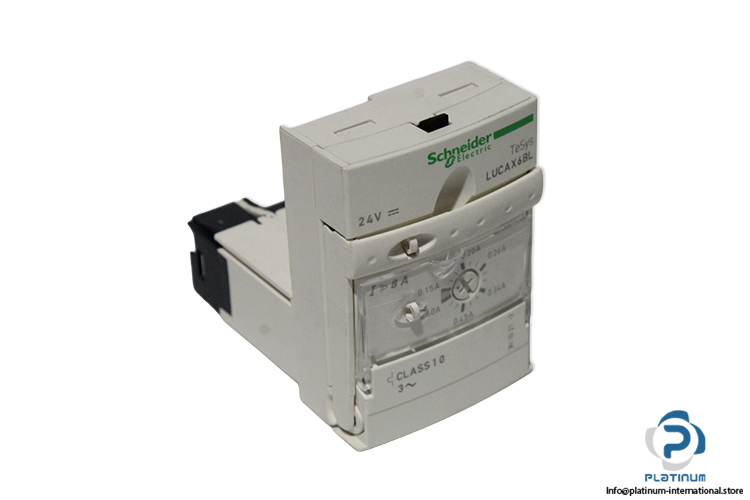

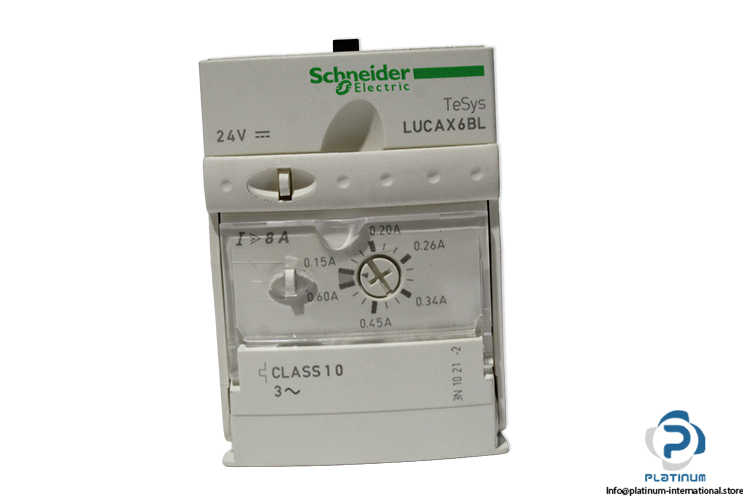

Schneider LUCAX6BL Control Unit
New
In stock1 unitReady to ship
Control Unit The SCHNEIDER LUCAX6BL is a TeSys U control unit designed for reliable motor control and protection, with a 24 V DC coil and 0.15–0.6 A current range.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Range | TeSys U |
| Short Name | LUCA |
| Application | Motor Control / Motor Protection |
| Compatibility | Power Base LUB12, Power Base LUB32, Power Base LUB38, Power Base LUB120, Power Base LUB320, Power Base LUB380, Reversing Contactor Breaker LU2B12BL, Reversing Contactor Breaker LU2B32BL, Reversing Contactor Breaker LU2B38BL |
| Coil Voltage | 24 V DC |
| Rated Operational Voltage | 690 V AC |
| Rated Motor Current Adjustment Range | 0.15 … 0.6 A |
| Frequency | 40 … 60 Hz |
| Motor Power | 0.09 kW, 400 ... 440 V AC, 50 … 60 Hz |
| Load Type | 3-Phase Motor Self-Cooled |
| Rated Insulation Voltage Ui | 600 / 690 V |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Protection Class | IP20 |
| Ambient Temperature | -25…70 °C |
| Dimensions | 66 x 45 x 60 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103982 |
| Weight | 0,11 |
