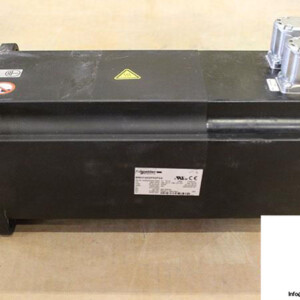

Schneider BMH1403P32F2A Servo Motor
Servo Motor

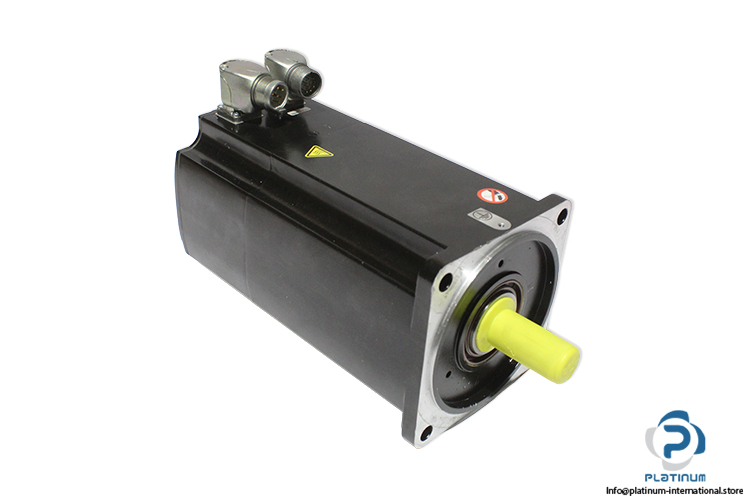

Schneider Electric BMH1403P32F2A servo motor with 4.788 kW rated power, 3000 rpm nominal speed, IP65 protection, and integrated holding brake, compatible with Lexium 32 systems.Schneider Electric BMH1403P32F2A Servo Motor
The Schneider Electric BMH1403P32F2A is a high-performance servo motor from the BMH series, designed for precise motion control and demanding industrial automation applications. It delivers high torque, dynamic response, and reliable operation when paired with compatible servo drives.
Manufacturer: Schneider Electric
Type: Servo Motor
Model: BMH1403P32F2A
ID Number: 0050000001922
Serial Number: 2204019383
Series: BMH
Range Compatibility: Lexium 32
Recommended Accessories & Compatible Equipment:
For optimal performance and complete system integration, this servo motor can be combined with:
Servo Motor Drives for precise speed, torque, and position control
Servo Gearboxes to enhance torque output and mechanical efficiency
Cables & Connectors including power cables, encoder cables, and feedback connections
Couplings for secure and accurate shaft-to-load connection
Please contact us via Ask for assistance with any inquiries.

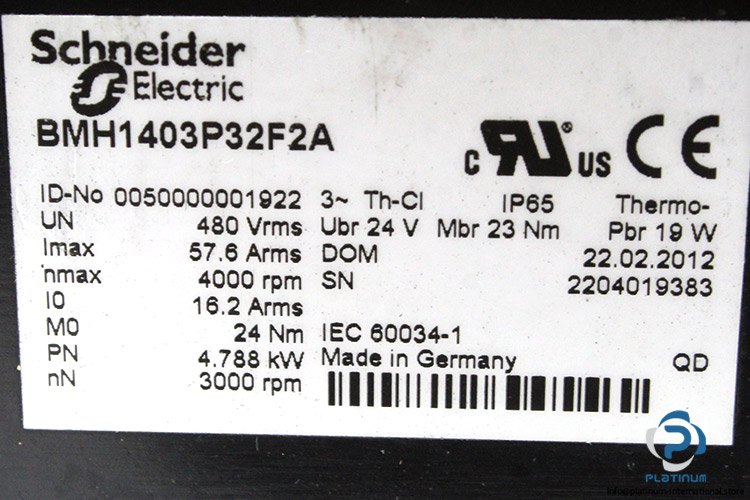

| Nominal Voltage (UN) | 480 Vrms / 3~ Three-Phase Motor |
| Maximum Current (Imax) | 57.6 Arms |
| Nominal Current (I0) | 16.2 Arms |
| Brake Voltage (Ubr) | 24 V DC |
| Brake Power (Pbr) | 19 W |
| Nominal Speed (nN) | 3000 rpm |
| Maximum Speed (nmax) | 4000 rpm |
| Rated Power (PN) | 4.788 kW |
| Nominal Torque (M0) | 24 Nm |
| Holding Brake Torque (Mbr) | 23 Nm |
| Shaft Diameter | 24 mm |
| Shaft Length | 50 mm |
| Motor Flange Size | 140 mm |
| Rotor Inertia | 50.27 kg·cm² |
| Holding Brake | With |

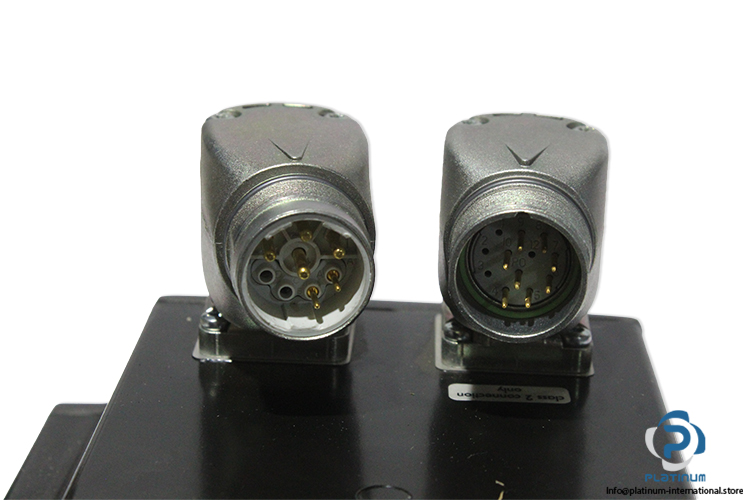

| Electrical Connection | Rotatable right-angled connectors |
| Shaft End | Keyed |
| Thermal Class | Thermal |
| Standard | IEC 60034-1 |
| Certifications | CE, cURus |
| Ingress Protection | IP65 |
| Note | All of the above accessories and components are available at our company. |
