Schneider BSH0701P12F2A Servomotor
신제품
재고 있음1 단위즉시 배송 가능
1 699,99$
Servomotor
Schneider BSH0701P12F2A Servomotor with 480 Vrms supply voltage, 6000 rpm speed (max. 8000 rpm), and 0.82 kW nominal power. It offers reliable torque, efficient braking system, and robust protection (IP50/65).
방대한 재고
글로벌 배송
전문 지원
품질 보장

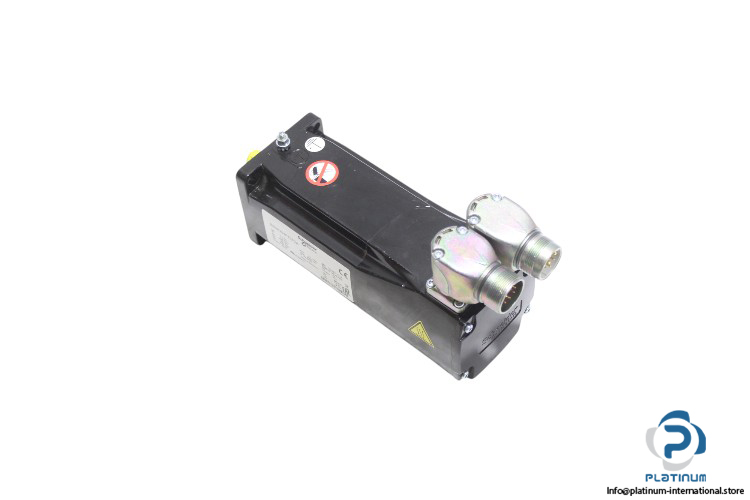

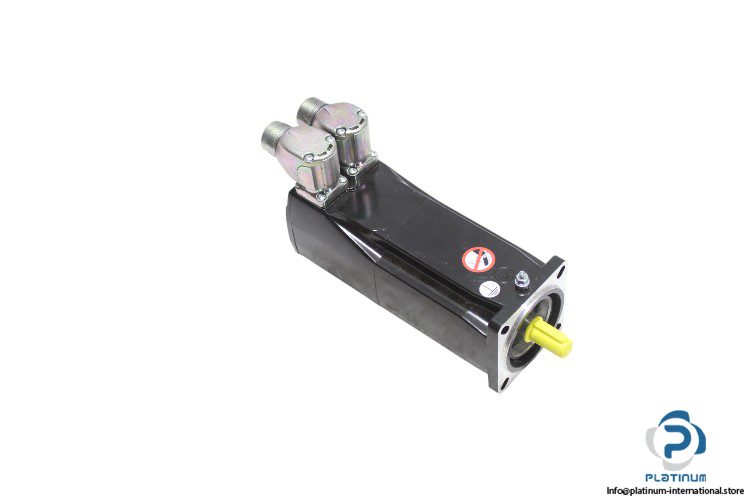

Schneider Servomotor BSH0701P12F2A
The Schneider BSH0701P12F2A Servomotor is engineered for high-performance applications, providing reliable speed and torque control with efficient power consumption and protection. Its advanced features include a wide speed range and robust protection class ratings, making it ideal for industrial machinery.

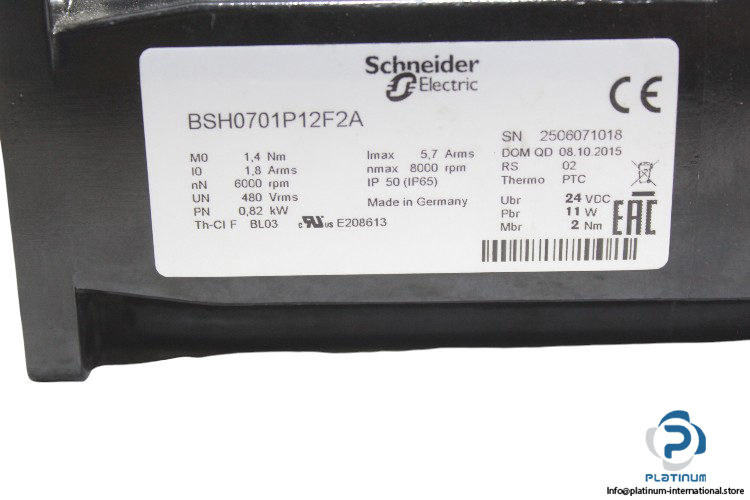

Manufacturer: Schneider
Model: BSH0701P12F2A
Type: Servomotor
Serial No.: 2506071018
| Supply Voltage | 480 Vrms |
| Speed | 6000 rpm, max. 8000 rpm |
| Power Nominal | 0.82 kW |
| Current Consumption | max. 5.7 Arms |
| Stall Current | 1.8 Arms |
| Stall Torque | 1.4 Nm |
| Insulation Class | F |
| Protection Class | IP50/65 |
| Brake Voltage | 24 V DC |
| Brake Torque | 2 Nm |
| Brake Power | 11 W |
