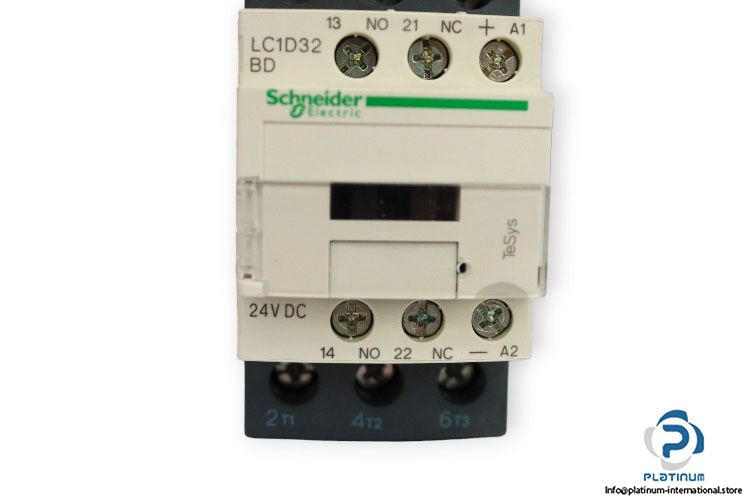

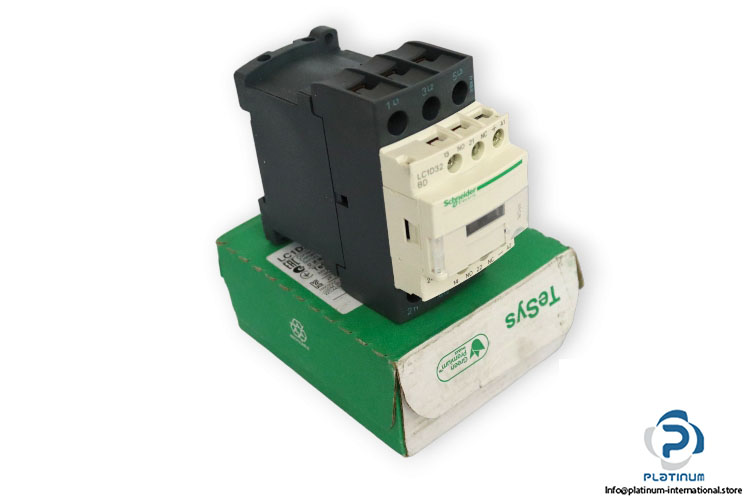

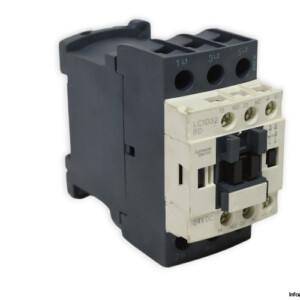

Schneider LC1D32BD Contactor
SCHNEIDER LC1D32BD CONTACTOR
The Schneider LC1D32BD is a robust 3-pole contactor designed for high-efficiency performance in industrial power control applications. Ideal for motor control, this unit ensures durability and reliability even under demanding operating conditions.
Manufacturer: SCHNEIDER
Type: Contactor
Model: LC1D32BD
Part No.: 035725
Motor Power:
- 7.5 kW at 220“230 V AC 50/60 Hz (AC-3)
- 15 kW at 380“400 V AC 50/60 Hz (AC-3)
| No. of Poles | 3 |
| Pole Contact Composition | 3 Normally Open |
| Operational Current | 32 A (at <60 °C) at ‰¤ 440 V AC AC-3 for Power Circuit |
| Control Circuit Voltage | 24 V DC |
| Rated Insulation Voltage | 690 V AC, 50“60 Hz |
| Rated Impulse Withstand Voltage [Uimp] | 6 KV |
| Thermal Current | 50 A |
| Rated Breaking Capacity | 550 A at 440 V for Power Circuit |
| Overvoltage Category | III |
