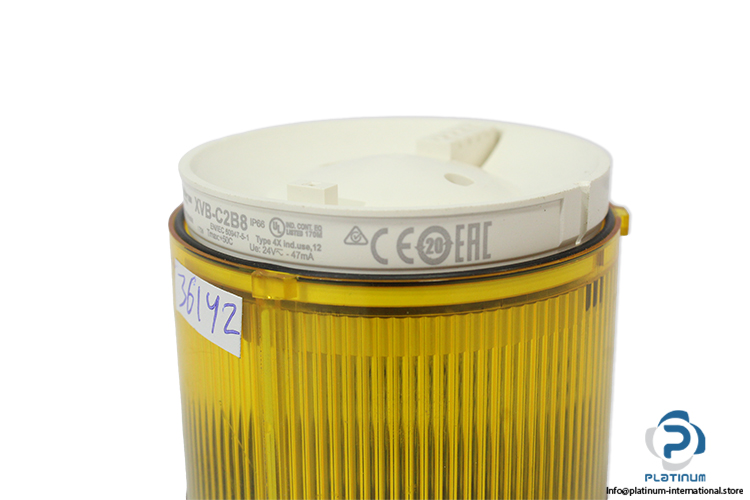

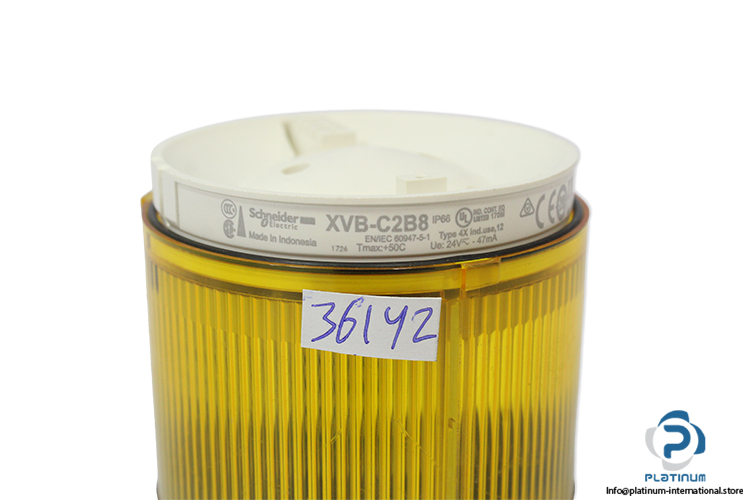

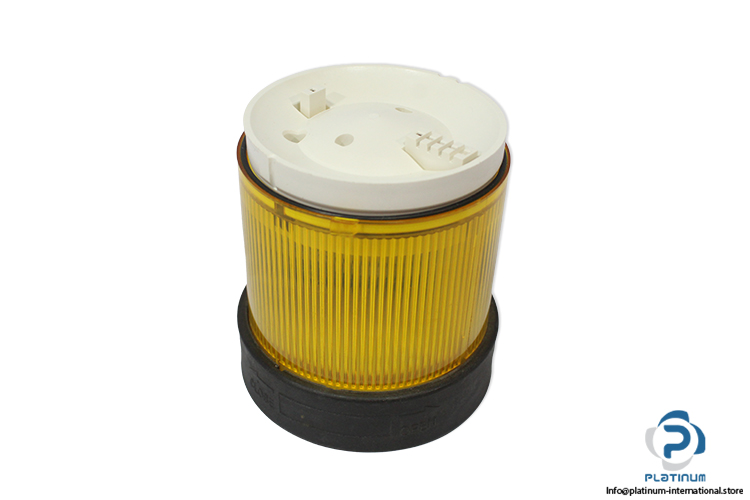

Schneider XVB-C2B8 Indicator Bank
Schneider XVB-C2B8 Indicator Bank
The Schneider XVB-C2B8 is an illuminated indicator bank from the Harmony XVB Universal range, designed for reliable visual signalling in industrial environments. It features a steady yellow integral LED light source and durable polycarbonate construction for long-term performance.
Manufacturer: Schneider
Type: Indicator Bank
Model: XVB-C2B8
| Range Of Product | Harmony XVB Universal |
| Product Or Component Type | Indicator Bank |
| Beacon Or Indicator Bank Unit Type | Illuminated Unit |
| Signalling Type | Steady |
| Mounting Diameter | 2.8 In (70 mm) |
| Component Name | XVBC |
| Material | Polycarbonate |
| Light Source | Integral LED, Yellow |
| Bulb Type | Protected LED |
| Rated Supply Voltage [Us] | 24 V AC/DC |
| Assembly Style | Customer Assembly, Up To 5 Units |
| Connections - Terminals | Screw Clamp Terminals, ‰¤ 1 x 1.5 mm² With Cable End |
| Rated Insulation Voltage [Ui] | 250 V IEC 60947-1 |
| Nominal Voltage Limit | 0.85...1.1 Un IEC 60947-5-1 |
| Current Consumption | < 47 mA AC/DC |
| Rated Impulse Withstand Voltage [Uimp] | 4 kV IEC 60947-1 |
| CAD Overall Width | 2.8 In (70 mm) |
| CAD Overall Height | 2.5 In (63 mm) |
| CAD Overall Depth | 2.8 In (70 mm) |
| Ambient Air Temperature For Operation | -13 / 122 °F (-25 / 50 °C) |
| Standards | IEC 60947-5-1 |
