SEW RF57 DRN100LS4/BE5/MM30/AVT1/LN Helical Gearmotor

재고 있음4 단위즉시 배송 가능

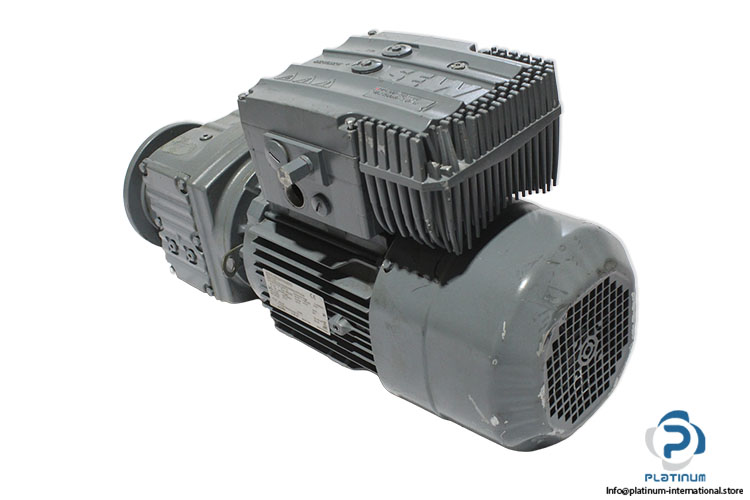

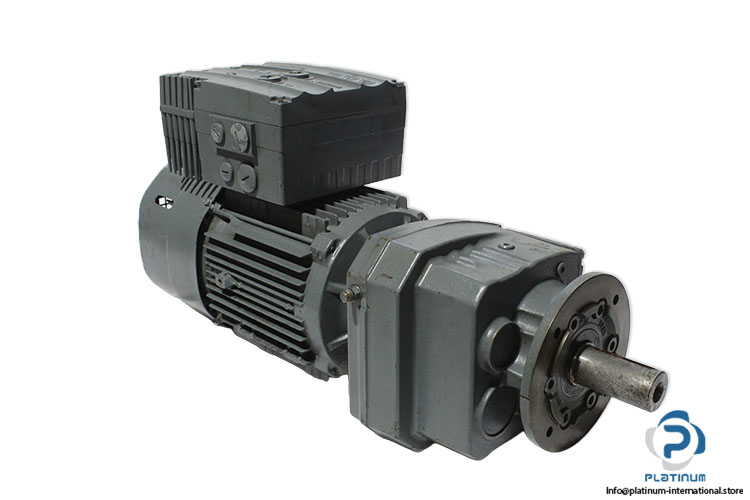

Helical Gearmotor The SEW-Eurodrive RF57 DRN100LS4/BE5/MM30/AVT1/LN is a helical gearmotor with an integrated MOVIMOT MM07 inverter drive, providing efficient variable-speed control, reliable torque, and dependable performance for industrial automation and power transmission applications.

제조업체
SEW
SKU
1100464
카테고리
Gear Motors
상태
중고
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

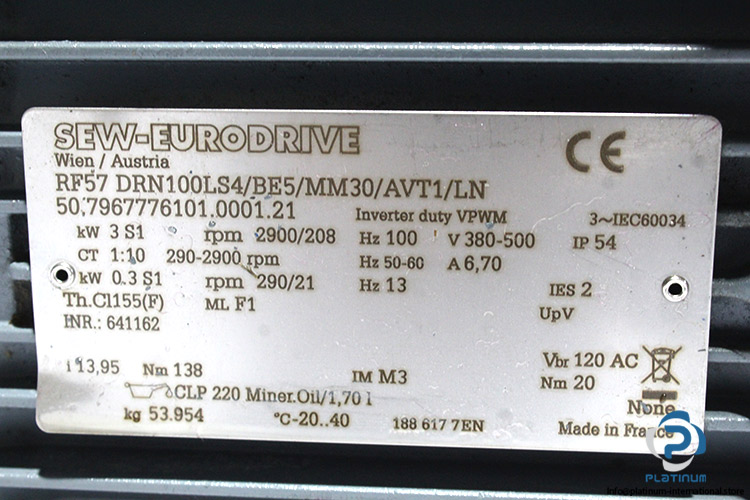

Part No.50.7975403101.0002.21/50.7967776101.0001.21/50.7989570301.0001.21/50.7983722901.0001.21
Input speed [r/min]2900 - 290
Output speed [r/min]208 - 21
Total ratio [i]13,95
Ma max [Nm]430
Output torque [Nm]138
Service factor SEW-FB3,10
Mounting positionM3
ISO codeCLP 220
Lubricant typeMiner.Oil
Lubricant volume [l]1,70
Motor power [kW]3 / 0.3
Motor mains power [kW]2,200
Motor frequency [Hz]100
Cyclic duration factorS1-S10 S1
Setting range (CT)1:10
Motor frequency min. [Hz]13
Motor voltage [V]380-500
Line frequency [Hz]50-60
MM rated main current [A]6,70
Thermal cl.[°C]/Enclosure[IP]155(F) / 54
International efficiency classIE3
Motor mains efficiency [%]86,9
Ambient temperature min. [°C]-20
Ambient temperature max. [°C]40
Brake voltage [V]/-torque [Nm]120 AC / 20
Brake rectifier nameplateNone
MOVIMOTMM30

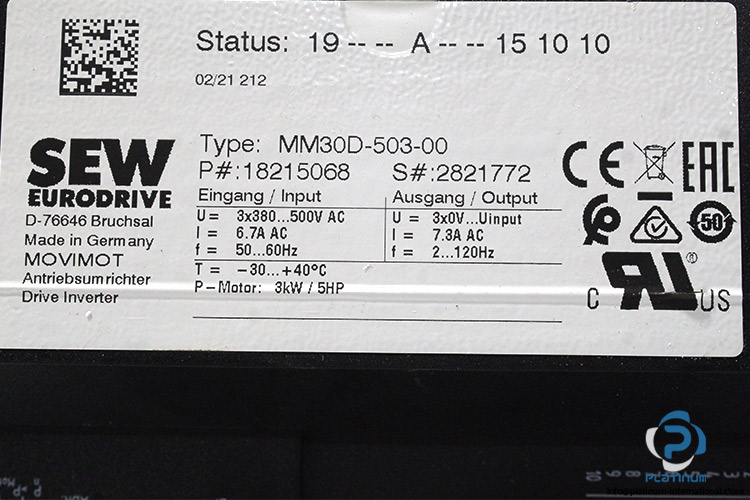

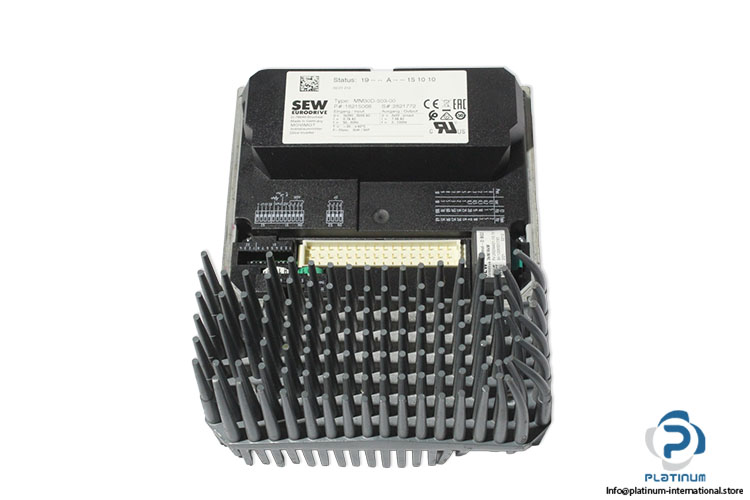

Attached withSEW MM30D-503-00 Movimot Inverter Drive
RangeMOVIMOT
P no18215068
S No2821772
Supply Voltage, Input3-Phase 380 … 500 V AC
Rated Current, Input6.7 A
Frequency, Input50 … 60 Hz
Power, Input3kW / 5HP
Rated Voltage, Output3-Phase 0 … 380 – 500 V AC
Rated Current, Output7.3 A
Frequency, Output2 … 120 Hz
Temperature-30 … 40 °C
Stock keyJO-004
ConditionUsed
SKU1100464
Weight53,6
