Sick AFM60A-S4NB018X12 Absolute Encoder
중고
재고 있음2 단위즉시 배송 가능
277,77$
ABSOLUTE ENCODER
Sick|Stegmann AFM60A-S4NB018X12 absolute encoder with PROFINET interface, 18 x 12 bit resolution, 262144 steps, 4096 revolutions, 10“30 V DC, and solid shaft face mount flange design.1059039184096AbsoluteAFM60A-S4NB018X12AutomationBitEncoderFaceHighIndustrialmountProfinetResolutionrevolutionsshaftSickSolidstainlessSteelStegmann
신제품
재고 있음 669,99$
이 제품은 신제품으로도 구매하실 수 있습니다.
새 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장

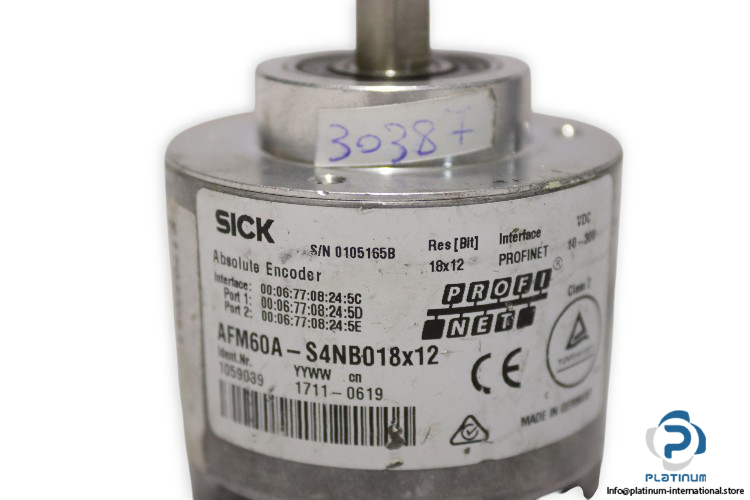

Sick|Stegmann AFM60A-S4NB018X12 Absolute Encoder
The Sick|Stegmann AFM60A-S4NB018X12 is a high-performance absolute encoder designed for precision motion control and automation systems. With PROFINET interface, high resolution, and robust construction, it delivers reliable and accurate feedback in demanding industrial environments.
Manufacturer: Sick|Stegmann
Type: Absolute Encoder
Model: AFM60A-S4NB018X12
Yyww/cn: 1711-0619
Part No.: 1059039
S/N: 0105165B
| Voltage | 10 to 30 V DC |
| Resolution (bit) | 18 x 12 |
| Interface | PROFINET |
| MAC Address | 00:06:77:08:24:5C |
| Port 1 | 00:06:77:08:24:5D |
| Port 2 | 00:06:77:08:24:5E |
| Class | 2 |
| Number of Steps per Revolution (Max. Resolution) | 262144 (18 bit) |
| Number of Revolutions | 4096 (12 bit) |
| Initialization Time | 6 s |

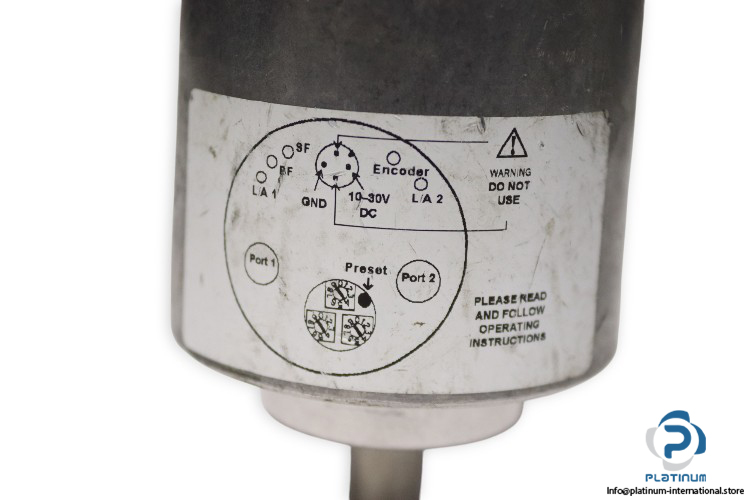

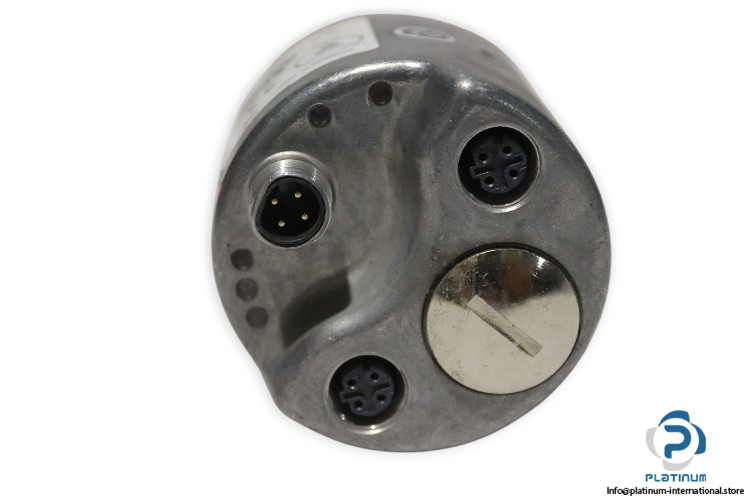

| Connection Type | Male connector, 1x, M12, 4-pin, axial; Female connector, 2x, M12, 4-pin, axial |
| Power Consumption | ‰¤ 3 W (without load) |
| Material | Stainless steel / Aluminum |
| Operating Temperature | -40 °C to +85 °C |
| Shaft Diameter | 10 mm |
| Shaft Length | 19 mm |

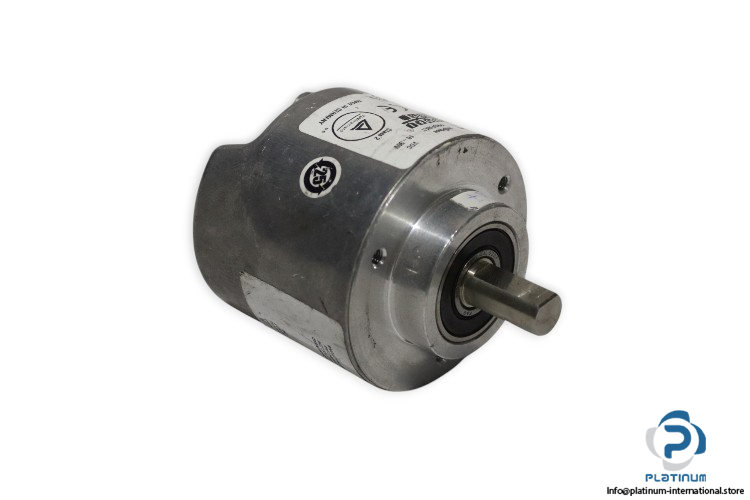

| Mechanical Design | Solid shaft, face mount flange |
