Sick AFM60A-S4NB018X12 Absolute Encoder
신제품
재고 있음2 단위즉시 배송 가능
669,99$
절대 엔코더 SICK AFM60A-S4NB018X12 PROFINET 인터페이스, 18 × 12 비트 해상도, 262,144 스텝, 4,096 회전수, 10“30 V DC 전원 공급, IP65/IP67 보호 및 솔리드 샤프트 플랜지 설계 절대 엔코더.
184096AbsoluteAFM60A-S4NB018X12AutomationBitEncoderHighIndustrialIP65IP67ProfinetResolutionrevolutionsshaftSickSolidstainlessSteel
중고
재고 있음 277,77$
이 제품은 중고로도 구매하실 수 있습니다.
중고 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장

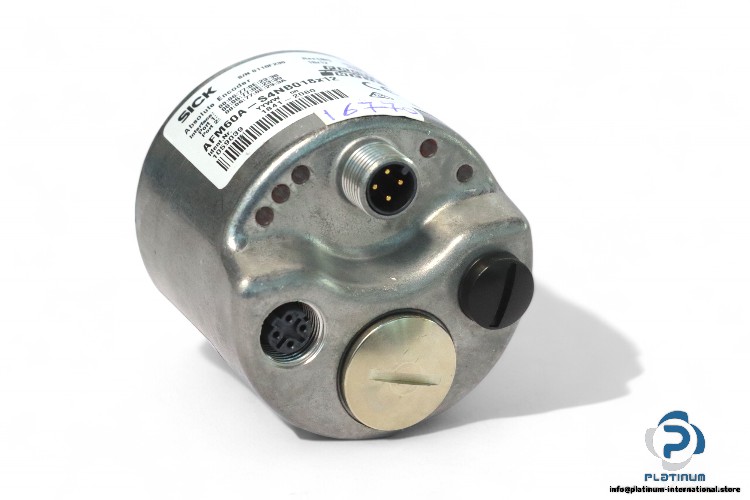

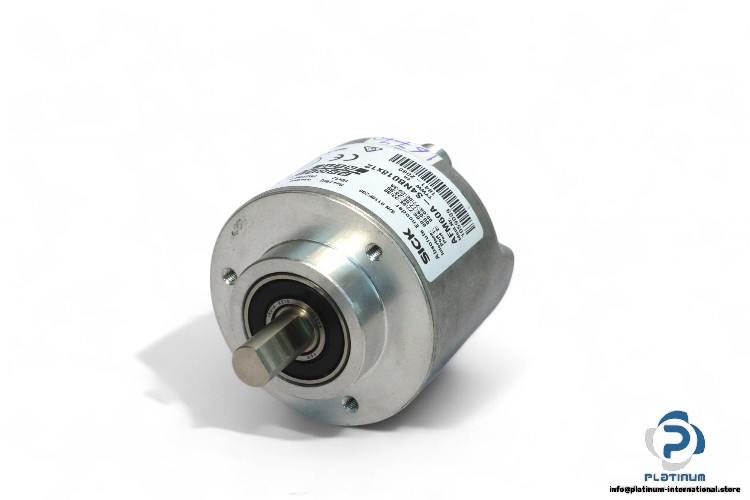

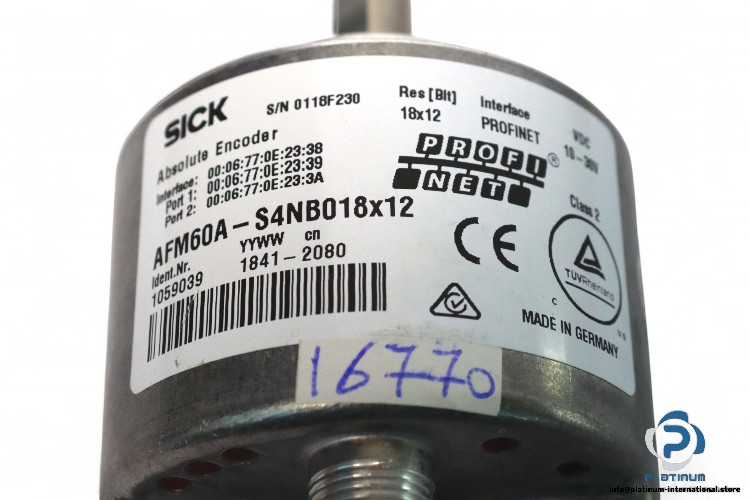

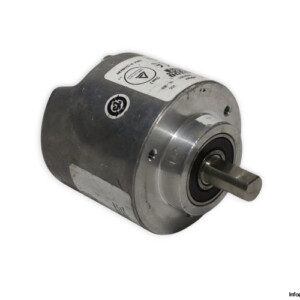

SICK AFM60A-S4NB018X12 Absolute Encoder
The SICK AFM60A-S4NB018X12 is a high-precision absolute encoder engineered for demanding industrial automation and motion control applications. Offering PROFINET connectivity, high resolution, and robust construction with stainless steel and aluminum materials, it ensures reliable and accurate feedback even under challenging conditions.
Manufacturer: SICK
Type: Absolute Encoder
Model: AFM60A-S4NB018X12
| Supply Voltage | 10 / 30 V |
| Power Consumption | 3 W (without load) |
| Max. Resolution | 18 bit x 12 bit (262,144 x 4,096) |
| Data Transmission Rate | 10 Mbit/s, 100 Mbit/s |
| Transmission Medium | CAT-5e cable |
| Initialization Time | 6 s |
| Cycle Time | 1 ms |
| Connection Type | Male connector (M12, 4-pin, axial), Female connector (M12, 4-pin, axial, 2x) |
| Mechanical Design | Solid shaft, face mount flange |
| Shaft Diameter | 10 mm |
| Shaft Length | 19 mm |
| Shaft Material | Stainless steel |
| Flange Material | Aluminum |
| Housing Material | Aluminum |
| Operating Torque | 0.3 N cm (20 °C) |
| Operating Speed | 9,000 min»¹ |
| Enclosure Rating | IP65 (shaft side), IP67 (housing side) |
| Operating Temperature Range | “40 °C / +85 °C |
