Sick SFM60-HZZ0-S01 Motor Feedback
중고
요청 시 제공 가능
55,00$
모터 피드백 시스템 Rotary HIPERFACE SICK SEW EURODRIVE Rotary HIPERFACE 모터 피드백 시스템은 회전당 1024개의 사인/코사인 주기, 4096개의 절대 회전수 및 IP65 등급을 특징으로 하며 산업용 응용을 위한 신뢰할 수 있는 피드백을 제공합니다.
4096AbsoluteAS7HcosineEncoderFeedbackHiperfaceIndustrialIP65motorrevolutionsRotarySewSFM60-HZZ0-S01shaftsinestainlessSteelSystemWith
방대한 재고
글로벌 배송
전문 지원
품질 보장

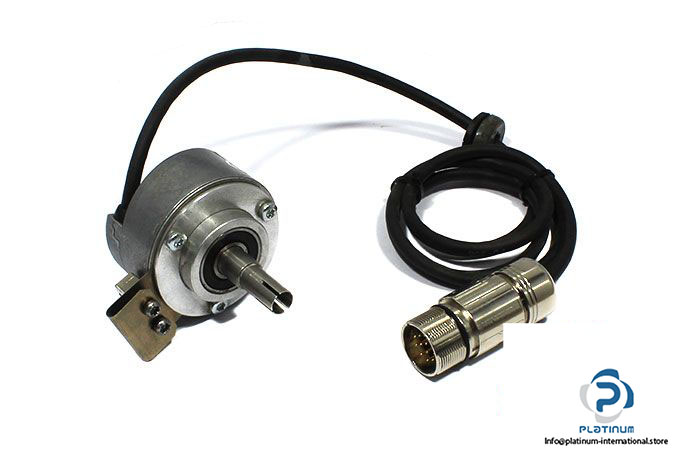

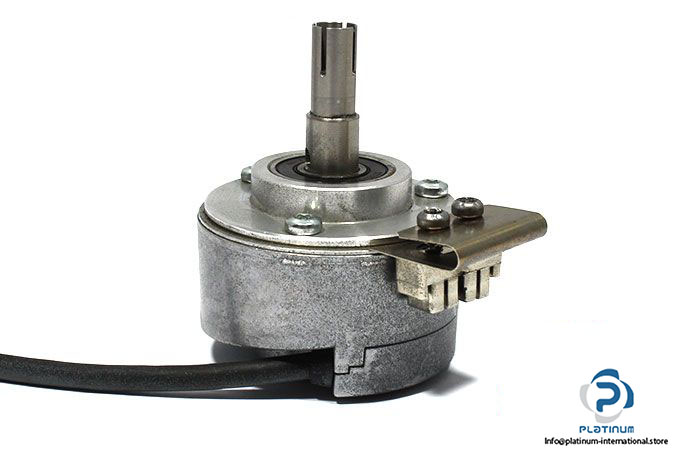

SICK SEW EURODRIVE Motor Feedback Systems Rotary HIPERFACE
The **SICK SEW EURODRIVE Motor Feedback Systems Rotary HIPERFACE** is an advanced encoder system designed for precise motor feedback applications. It provides high-resolution feedback with **1024 sine/cosine periods per revolution** and **4096 absolute ascertainable revolutions**, ensuring superior performance in industrial automation and control systems.
Manufacturer: SICK SEW EURODRIVE
Type: Motor Feedback Systems Rotary HIPERFACE

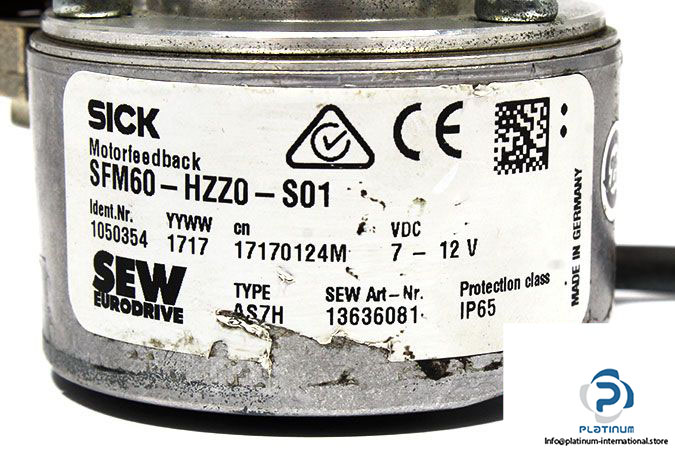

SICK Model: SFM60-HZZ0-S01
SICK Part No: 1050354
SEW Model: AS7H
SEW Art-No: 13636081
Technical Data:
- Sine/Cosine Periods per Revolution: 1024
- Number of Absolute Ascertainable Revolutions: 4096
- Supply Voltage: 7 / 12 V DC

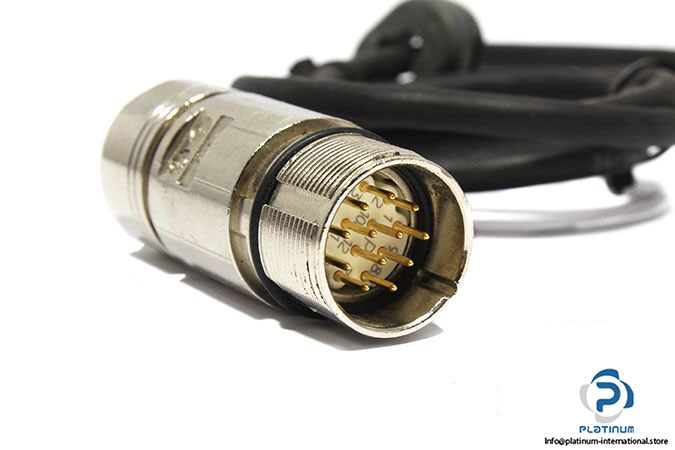

- Connection Type: Cable, Radial, 1 M
- Shaft Diameter: 12 mm
- Shaft Length: 32 mm
- Shaft Material: Stainless Steel
- Flange Material: Zinc Die Cast
- Housing Material: Aluminum Die Cast
- Enclosure Rating: IP65
- Operating Temperature: -40 / 115 °C
