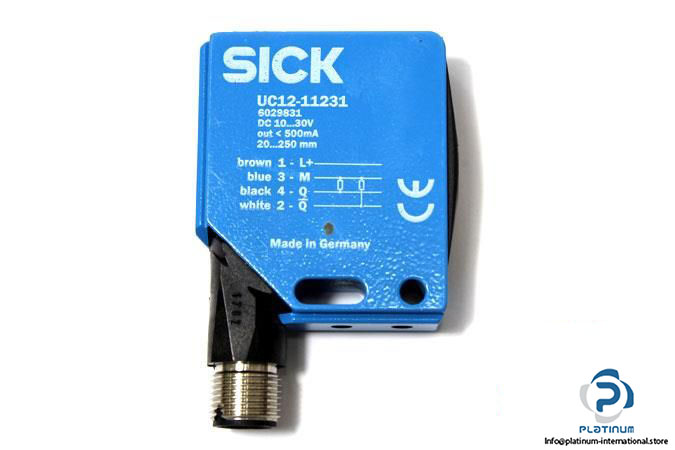

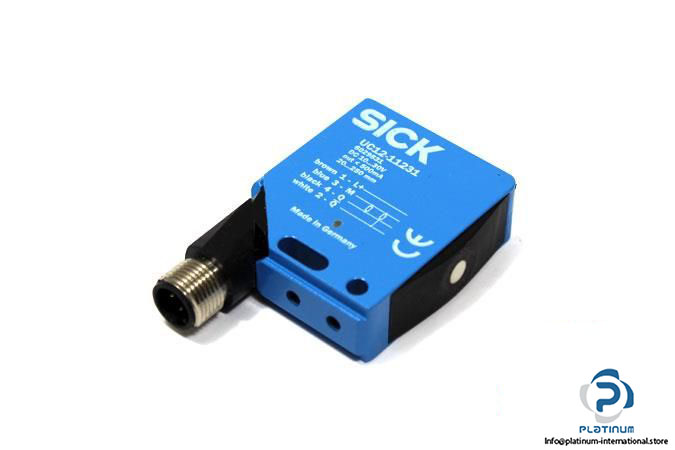

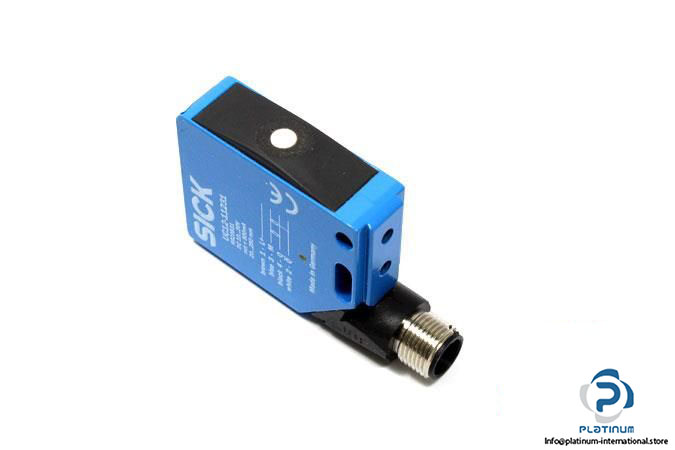

Sick UC12-11231 Ultrasonic Sensor
신제품
재고 있음1 단위즉시 배송 가능
125,00$
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer:SICK
Type: ULTRASONIC SENSOR
Model: UC12-11231
Part No.: 6029831
Sensing Range: 20 mm … 150 mm
Limiting range: 20 mm … 250 mm
Response time: 30 ms
Operating Voltage: 10 … 30 V DC
Output current: 500 mA
Switching output: PNP
Switching mode: Normally open/normally closed
Switching frequency: 25 Hz
Ultrasonic frequency: 380 kHz

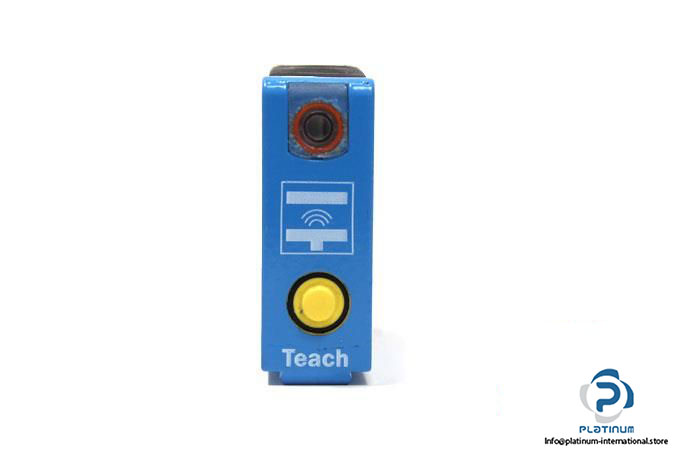

Adjustment: Teach in button

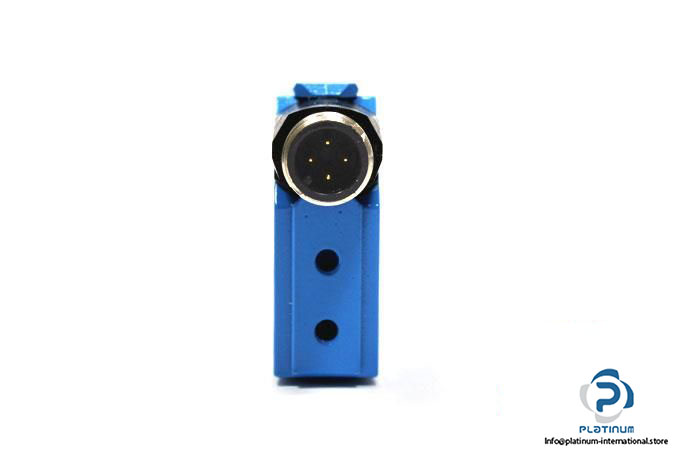

Connector type: M12 Connector, 4-pin
Sending axis: Straight
Protection class: III
Enclosure rating: IP6
Ambient Operating temperature: -25 … 70°C
Dimensions (W x H x D): 43.5 x 15 x 49 mm
Weight: 75 g
Housing: Rectangular
Housing material: Die-cast zinc
Sensing face material: Polyurethane foam, glass epoxy resin
Condition: New
