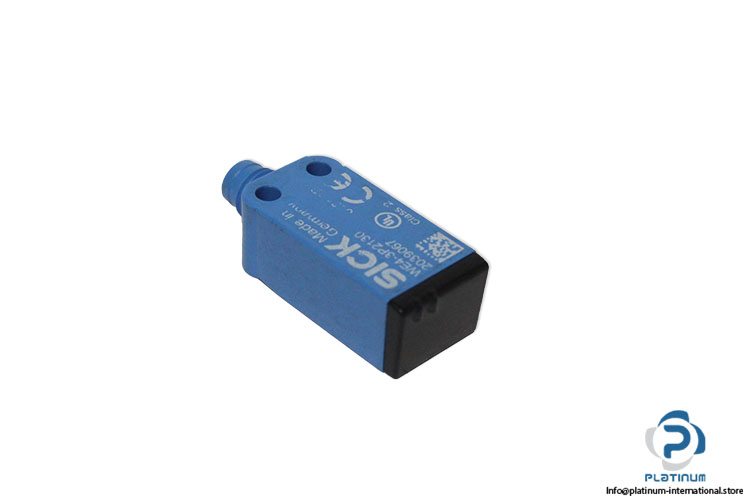

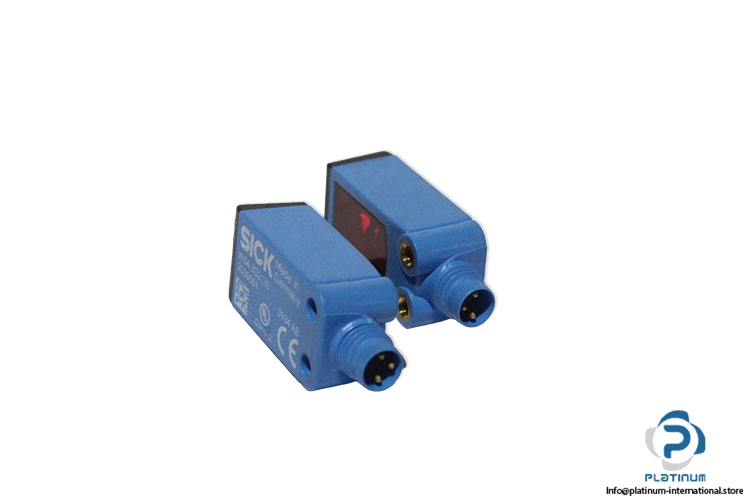

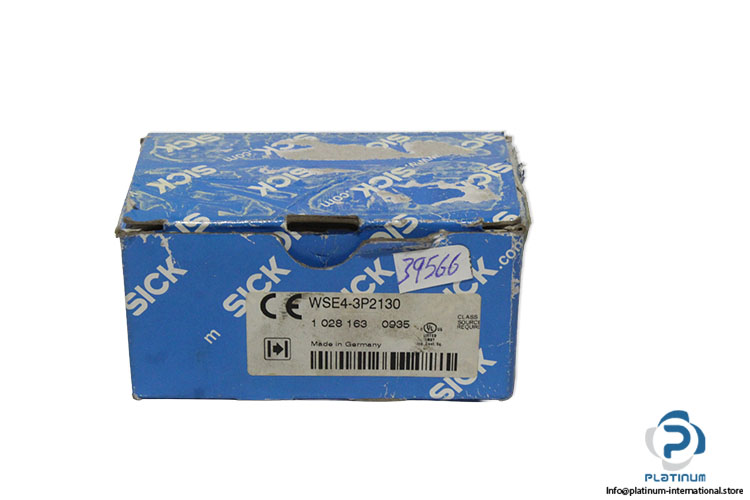

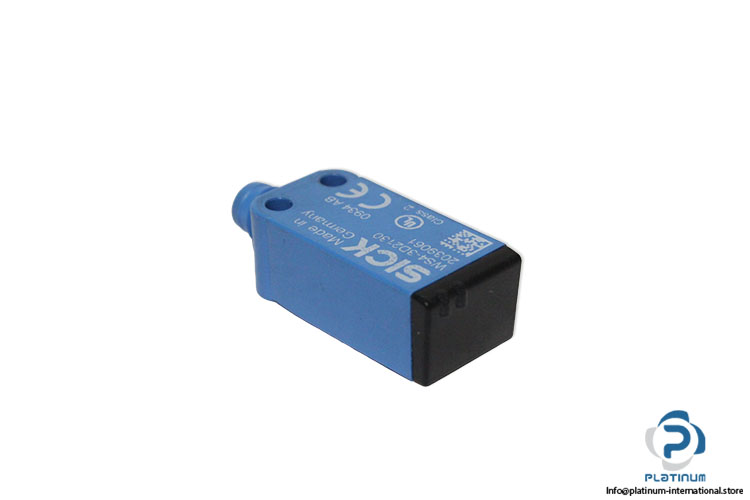

Sick WSE4-3P2130 Miniature Photoelectric Sensor

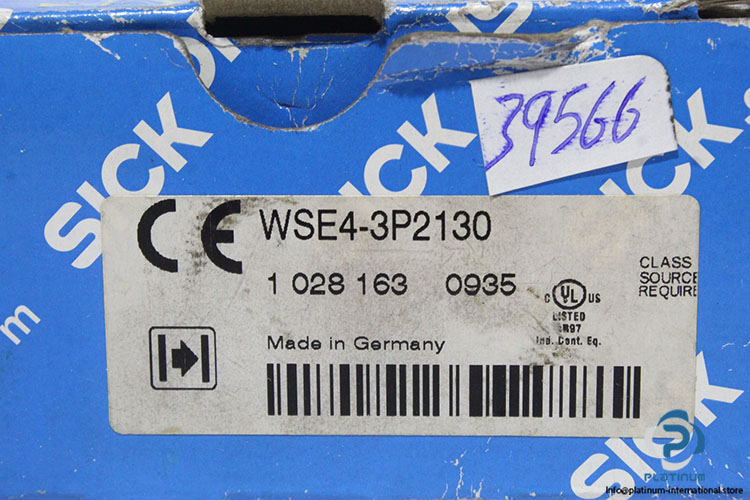

| Part No. | 1028163 |
| Ref No | 0935 |
| Class | 2 |

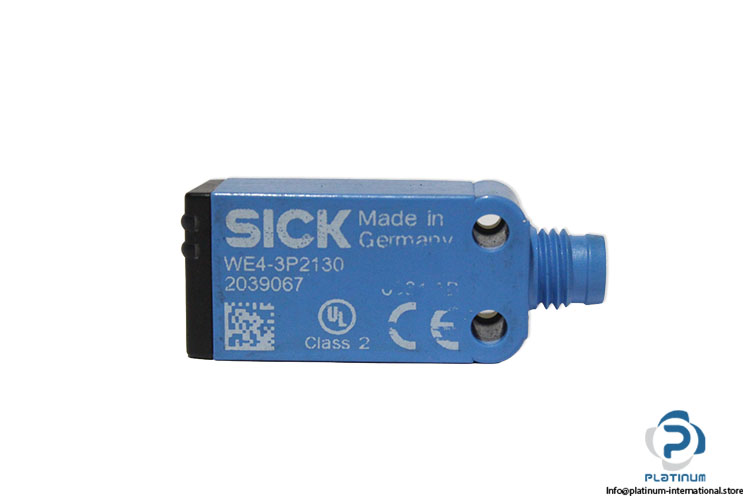

| Receiver model | WE4-3P2130 |
| Receiver Part no. | 2039067 |

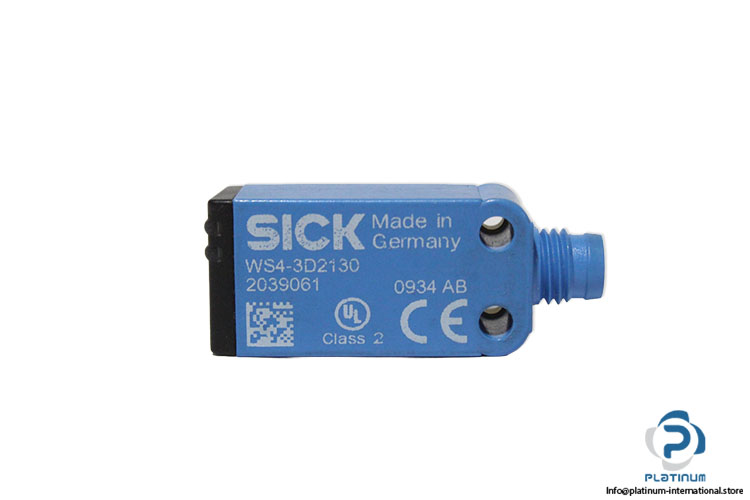

| Sender model | WS4-3D2130 |
| Sender part No | 2039061 |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | 5 Vpp |
| Current consumption | 20 mA |
| Protection class | III |
| Digital output Type | PNP |
| Output current Imax. | 100 mA |
| Response time | 0.5 ms |
| Switching frequency | 1,000 Hz |
| Switching mode | Light switching |
| Sensing range max. | 0 m ... 4 m |
| Sensing range | 0 m ... 3.5 m |
| Emitted beam Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | dia 75 mm (2 m) |
| Housing | Rectangular |
| Design detail | Flat |
| Dimensions (W x H x D) | 16 mm x 39.5 mm x 12 mm |

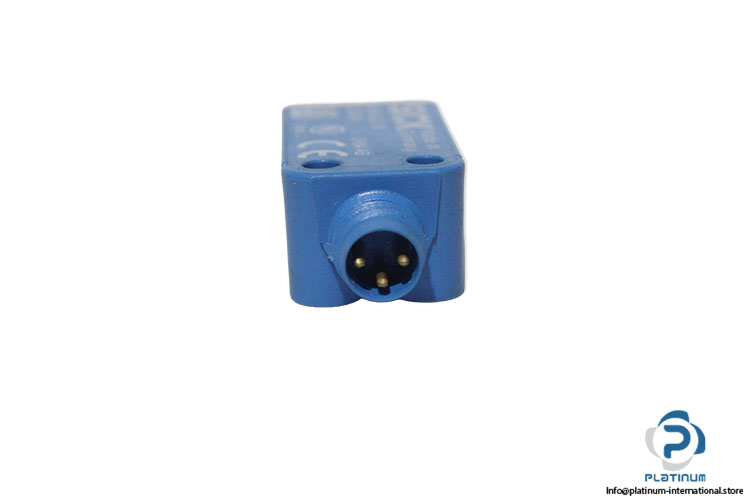

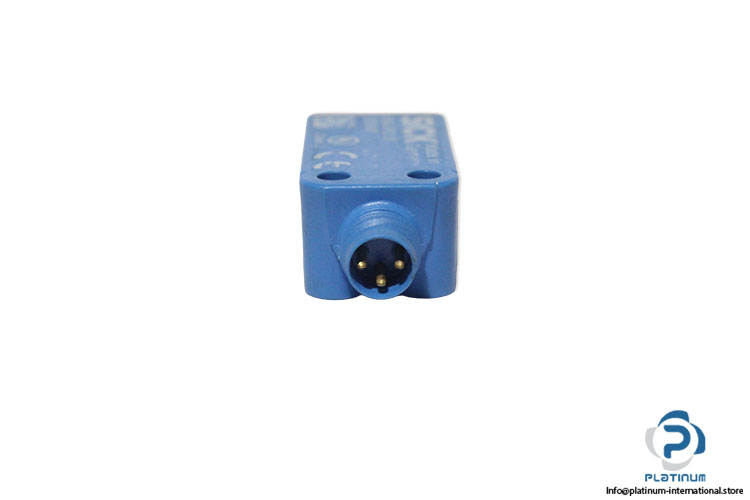

| Connection Connector | M8, 3-pin |
| Material Housing | Plastic, ABS |
| Front screen | Plastic, PMMA |
| Enclosure rating | IP67 IP66 |
| Ambient operating temperature | -40 °C ... +60 °C |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100983 |
| Weight | 0,04 |
