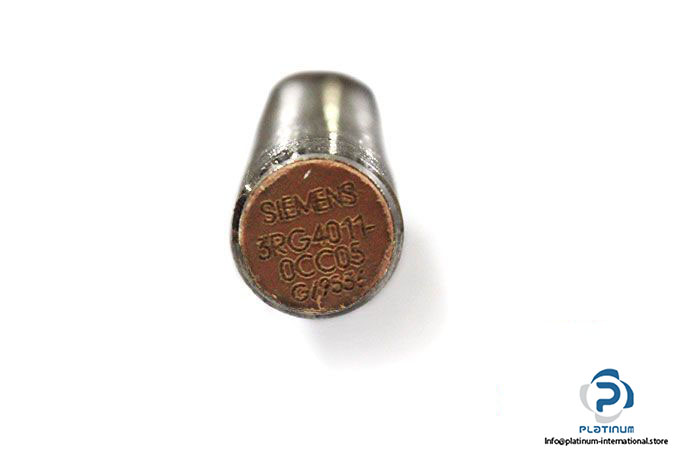

Siemens 3RG40 11-0CC05 Inductive Sensor
SIEMENS 3RG4011-0CC05 INDUCTIVE SENSOR
The Siemens 3RG4011-0CC05 is a compact, robust inductive sensor designed for high-performance proximity detection in industrial automation systems. With flush-mountable stainless steel housing and IP67 protection, it ensures reliable operation in harsh environments.
Manufacturer: SIEMENS
Type: Inductive Sensor
MRN: 3RG4011-0CC05
REF NO: G/9536
Family: 3RG4
| Sensing Range | 1.5 mm |
| Operating Voltage | 10 / 30 V DC |
| Operating Current | 50 mA |
| Electrical Design | PNP |
| Switching Output | Normally open + Normally closed |
| Connector Type | Cable, 2 m |
| Enclosure Rating | IP67 |
| Diameter, Housing Length | 8, 50 mm |
| Housing Material | Stainless steel |
| Mounting | Flush-mountable |

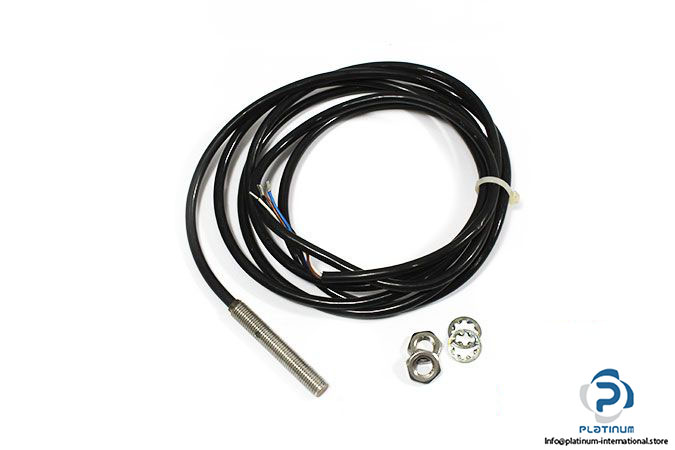

| Supplied Items | 2 lock nuts |
