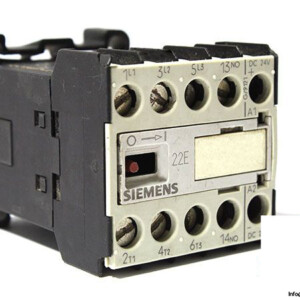

Siemens 3TF2222-0BB4 Contactor
신제품
재고 있음1 단위즉시 배송 가능
33,33$
Contactor
Siemens 3TF22 22-0BB4 miniature contactor with 24 V DC supply, 4 kW power, 9 A current, 2NO+2NC auxiliary switch, and IP20 protection class.
중고
재고 있음 20,00$
이 제품은 중고로도 구매하실 수 있습니다.
중고 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장

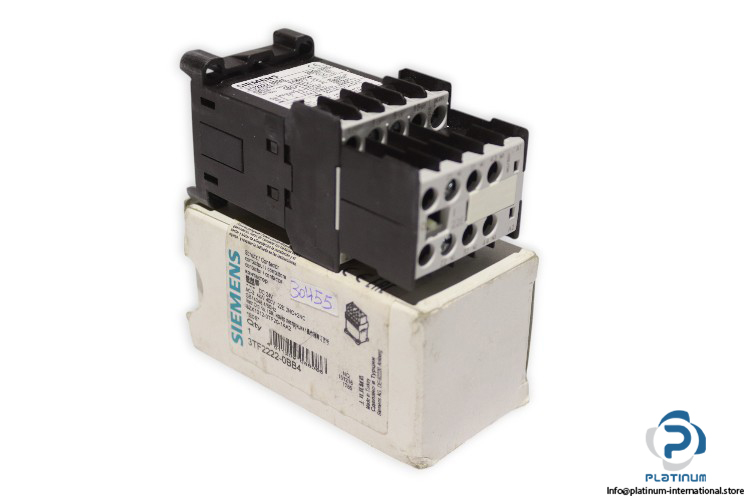

Siemens 3TF22 22-0BB4 Contactor
The Siemens 3TF22 22-0BB4 is a compact and reliable miniature contactor engineered for industrial applications. It provides efficient control with high performance, ensuring long-lasting and safe operation under demanding conditions.
Manufacturer: Siemens
Type: Contactor
Model: 3TF22 22-0BB4
Inst. Ord. No.: 3ZX1012-0TF20-1AA2
Serial No.: 4 011209 036086
| Successor Type | Sirius 3RT201 or 3TG10 |
| Size | 00 |
| Designation | 3TF2 |
| Auxiliary Switch | 22E (2 NO + 2 NC) |
| Designation | Miniature Contactor |
| Control Supply Voltage | 24 V DC |
| Rated Operating Power | 4 kW (400 V AC) |
| Rated Operating Current | 9 A (400 V AC) |
| Auxiliary Contacts | 1 Normally Open (1NO) |
| Standard | IEC 158 / VDE 0660 |
| Protection Class | IP20 |
| Operation Ambient Temperature | -25 / 55 °C |
| Dimensions (W x D x H) | 45 x 96 x 48 mm |
