SKF KMT 13 Precision Lock NUT

Name: SKF KMT 13 PRECISION LOCK NUT
SKU: 1030778
Availability: LimitedAvailability

skf-KMT-13-precision-lock-nut-(new)-(carton)

skf-KMT-13-precision-lock-nut-(new)-(carton)-1

skf-KMT-13-precision-lock-nut-(new)-(carton)-2

신제품

재고 있음1 단위즉시 배송 가능

정밀 잠금 너트 SKF KMT 13은 통합 잠금 장치 및 65mm 보어를 갖추고 있으며 정밀 공학 응용 분야에서 안전한 축 방향 위치 지정과 높은 정적 하중 용량을 위해 설계되었습니다.

SKU

1030778

카테고리

Bearing Parts

상태

신제품

13 65 Axial bore Fastener High KMT Load Lock locking M65x2 mm nut Precision shaft SKF Specifications Thread

방대한 재고

글로벌 배송

전문 지원

품질 보장

SKF KMT 13 PRECISION LOCK NUT

The SKF KMT 13 precision lock nut is engineered for high-accuracy axial positioning and secure shaft locking in critical applications. With an integrated locking device and high axial load capacity, it is ideal for use in demanding mechanical assemblies requiring precision and stability.

Manufacturer: SKF

Type: Precision Lock Nut

Model: KMT 13

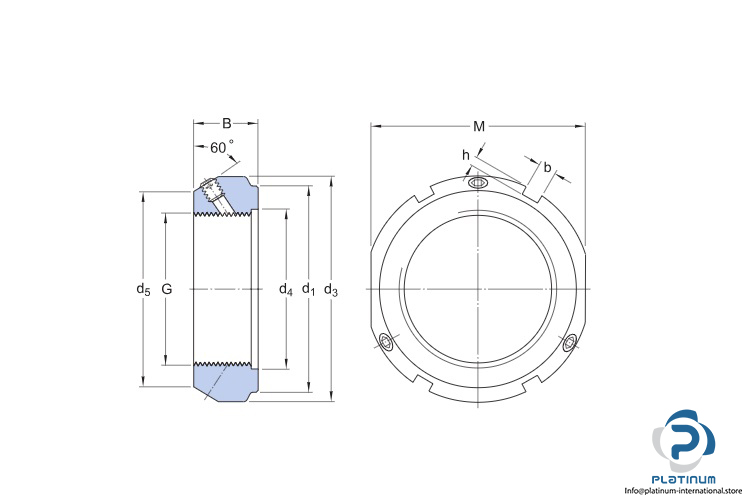

Bore Diameter	65 mm
Outside Diameter d3	95 mm
Width B	28 mm
Outside Diameter Locating Side Face d1	87 mm
Width Flat Spanner M	90 mm
Width Locating Slot b	8 mm
Depth Locating Slot h	3.5 mm
Thread	M65x2
Axial Static Load Carrying Capacity	460000 N
Locking Device	Incorporated in the lock nut
