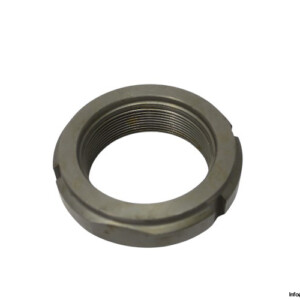

SKF KMT 13 Precision Lock NUT
New
In stock1 unitReady to ship
PRECISION LOCK NUT
SKF KMT 13 precision lock nut with integrated locking device and 65 mm bore, designed for secure axial positioning and high static load capacity in precision engineering applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF KMT 13 PRECISION LOCK NUT
The SKF KMT 13 precision lock nut is engineered for high-accuracy axial positioning and secure shaft locking in critical applications. With an integrated locking device and high axial load capacity, it is ideal for use in demanding mechanical assemblies requiring precision and stability.
Manufacturer: SKF
Type: Precision Lock Nut
Model: KMT 13

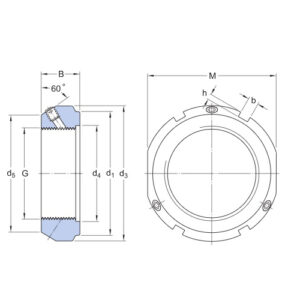

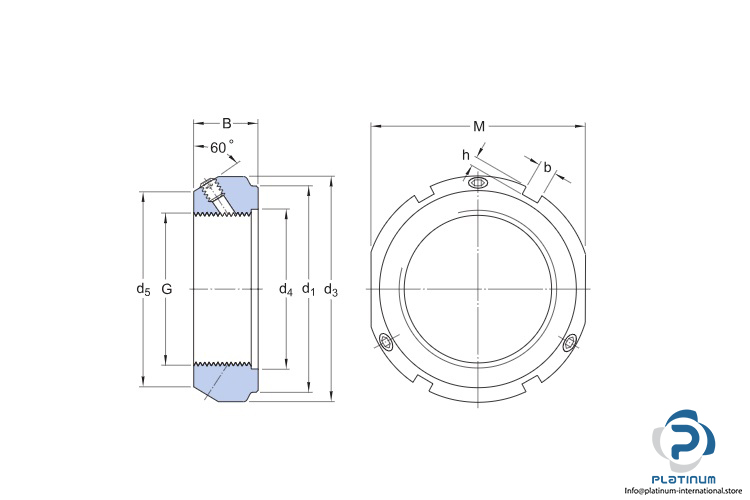

| Bore Diameter | 65 mm |
| Outside Diameter d3 | 95 mm |
| Width B | 28 mm |
| Outside Diameter Locating Side Face d1 | 87 mm |
| Width Flat Spanner M | 90 mm |
| Width Locating Slot b | 8 mm |
| Depth Locating Slot h | 3.5 mm |
| Thread | M65x2 |
| Axial Static Load Carrying Capacity | 460000 N |
| Locking Device | Incorporated in the lock nut |
