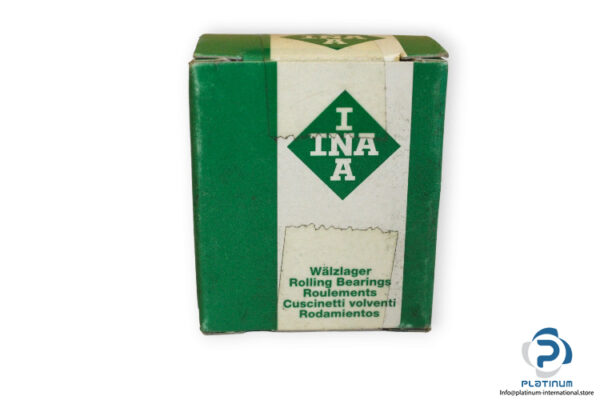

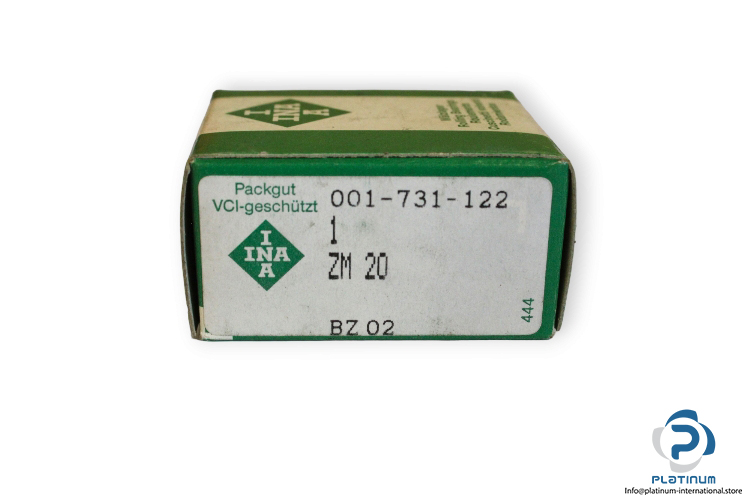

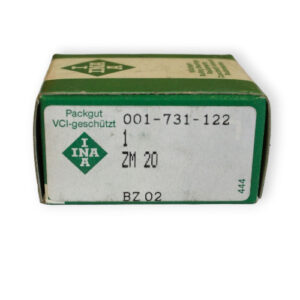

INA ZM 20 Precision Locknut

Manufacturer: Schaeffler INA
Type:  Precision locknut ZM
Model: ZM20

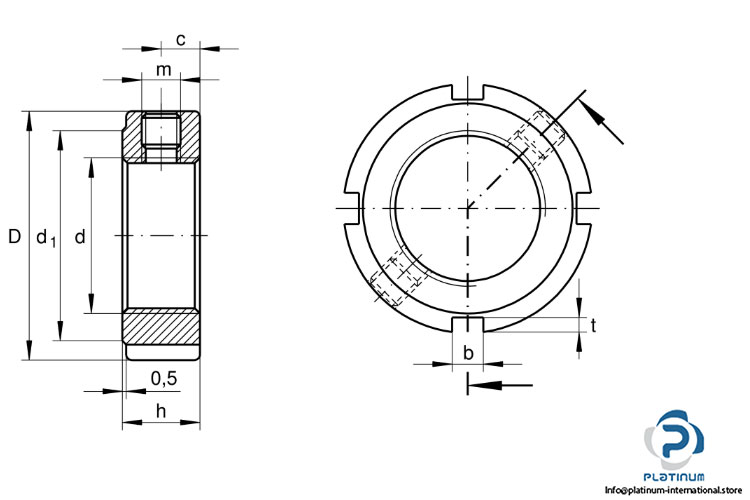

Dimensions:
Thread d: M20X1
Plant diameter outside d₁: 27 mm
Outside diameter D: 32 mm
Height h: 10 mm
Mounting torque set screw: 3 Nm
Breaking load, axial F_aB: 69000 N
Breakawag M_L: 40 Nm
Mounting torque reference M_AL: 18 Nm
