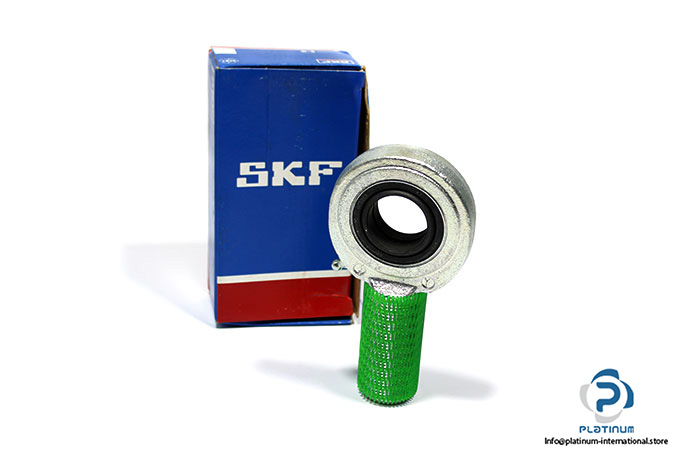

Manufacturer: SKF
Type: Rod end, requires maintenance, male thread
Model: SA30ES

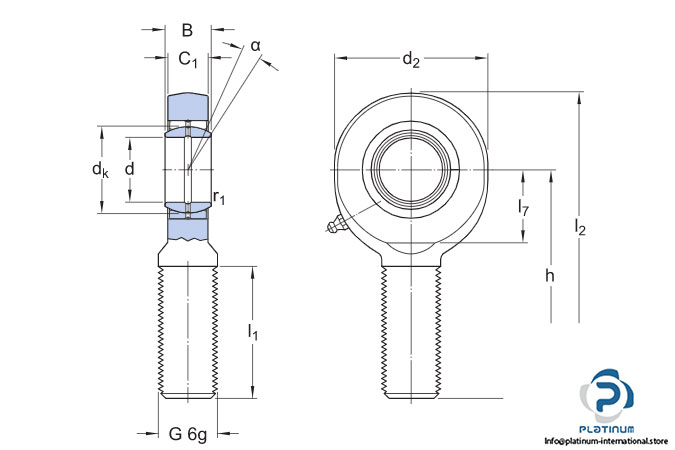

Dimensions:
Bore Diameter d: 30 mm
Diameter head d2: 75 mm
Width inner ring B: 22 mm
Attachment feature, rod end shank: Right-hand male thread
Height shank end face – centre rod end eye h: 110 mm
Length threat l1: 65 mm
Length (height) housing l2: 149 mm
Thread G: M 30×2
Basic load ratings:
Dynamic C: 62 kN
Static C0: 81.5 kN
