Square D 9007-AW32 Limit Switch
신제품
재고 있음1 단위즉시 배송 가능
99,99$
LIMIT SWITCH
Heavy-duty Square D limit switch with roller plunger and IP65 protection, ideal for linear motion detection and industrial control systems.Actioncontacts.ControlDDutyElectricalHeavyIndustrialIP65LimitmountNCNOPlungerRatedRollerSnapSquareSurfaceSwitchSwitchgear
방대한 재고
글로벌 배송
전문 지원
품질 보장
SQUARE D 9007 AW32 LIMIT SWITCH
The Square D 9007 AW32 is a robust heavy-duty limit switch engineered for precision control and reliability in demanding industrial environments. Designed with a steel spring return roller plunger and micrometer adjustment, it delivers snap-action performance with durable construction for long service life.
Manufacturer: SQUARE D
Type: Limit Switch
Model: 9007 AW32

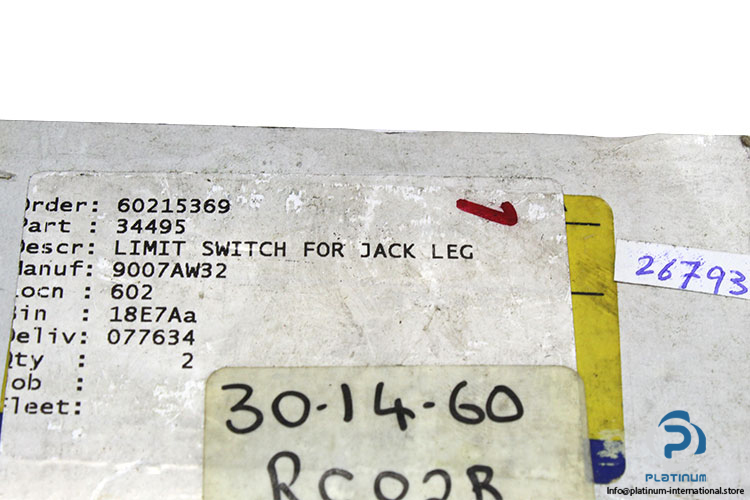

Part No.: M11 / 60215369 / 34495
| Rated Insulation Voltage (Ui) | 600 V |
| Conventional Enclosed Thermal Current (Ithe) | 15 A |
| Series Name | Heavy Duty |
| Contacts Operation | Snap Action |
| Body Type | Fixed |
| Mounting Mode | Surface Mounting Standard Box |
| Operator Profile | Plunger Head |
| Material | Metal |
| Movement of Operating Head | Linear |
| Type of Operator | Steel Spring Return Roller Plunger with Micrometer Adjustment |
| Electrical Connection | 1 to 2 Cables for Screw-Clamp Terminals (22“12 AWG) |
| Contact | NC-NO |
| Degree of Protection | IP65 |
| Operating Temperature Range | -17.78 to 85 °C |
| Dimensions (HxWxD) | 93.472 x 56.388 x 36.576 mm |
