Stahl PTB 01 Atex 1044 Coupling Socket
신제품
재고 있음1 단위즉시 배송 가능
Coupling Socket
The Stahl PTB01ATEX1044 coupling socket offers a rated current of 16 A with insulation voltage up to 750 V. It is designed for reliable connections in hazardous environments, featuring a wide operating temperature range and versatile voltage options.16750aAreaAuxiliarycomasContactcouplingElectricalHazardousIndustrialInsulationPTB01ATEX1044RatedSocketStahlVvoltage
방대한 재고
글로벌 배송
전문 지원
품질 보장

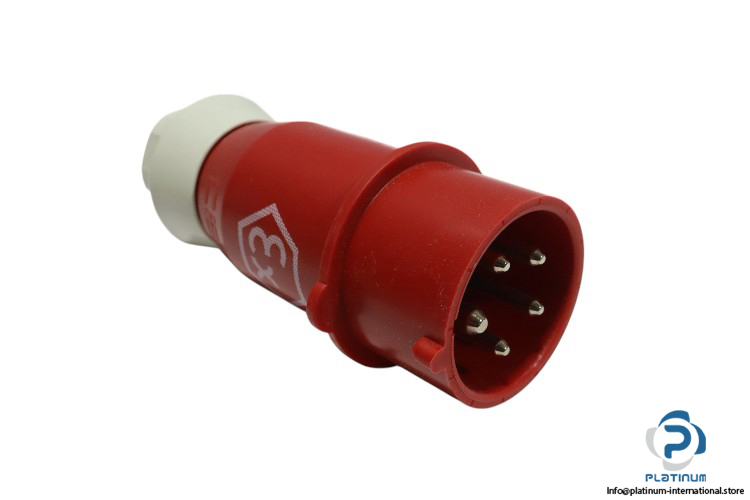

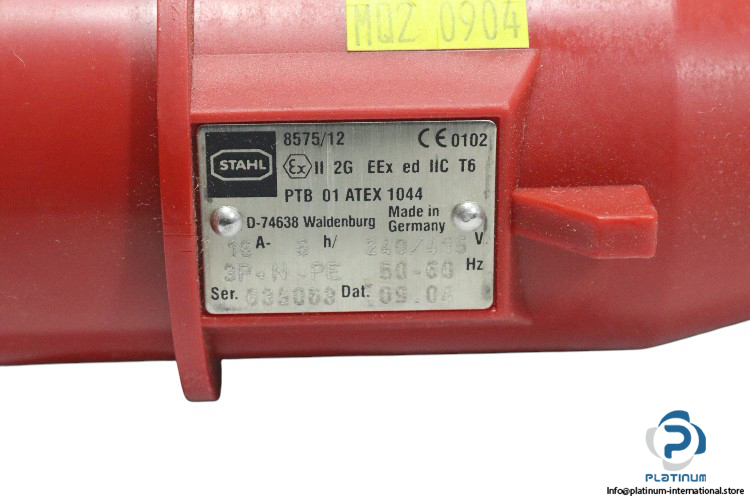

Stahl PTB01ATEX1044 “ Coupling Socket
The Stahl PTB01ATEX1044 coupling socket is designed for reliable electrical connections in hazardous environments. With a high-rated current capacity and versatile operating voltage, this device ensures safe and efficient operation in industrial applications.
Manufacturer: Stahl
Type: Coupling Socket
Model: PTB01ATEX1044

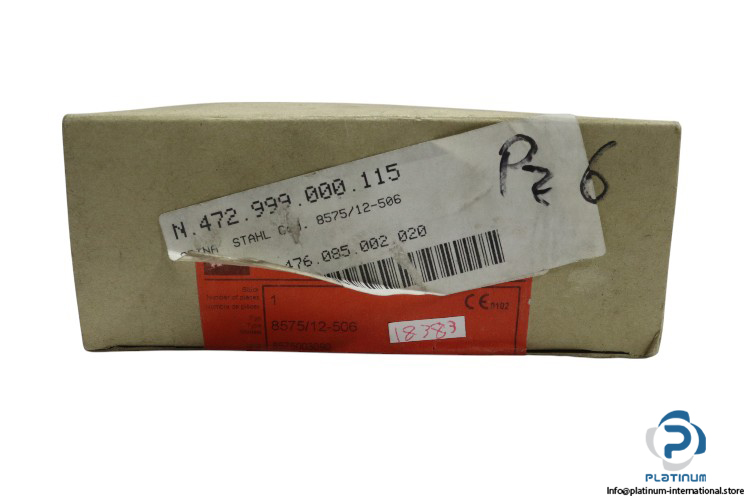

Part No.: 8575/12-506
COMAS part No.: 0.476.085.002.020 / 472.999.000.115
Ambient Temperature:
| Rated Insulation Voltage | up to 750 V |
| Rated Operating Voltage | Plug-and socket device up to 690 V, Auxiliary contact 240/415 V |
| Rated Current (le max.) | Plug-and socket device 16 A, Auxiliary contact 6 A |
| Rated Connection | 4 mm² |
| Frequency | 50 to 60 Hz |
| Thermal class T6 | -45 °C to 45 °C |
| Thermal class T5 | -45 °C to 55 °C |
