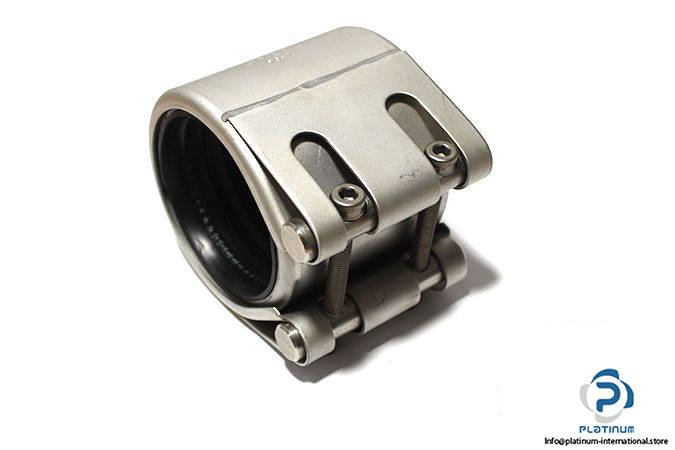

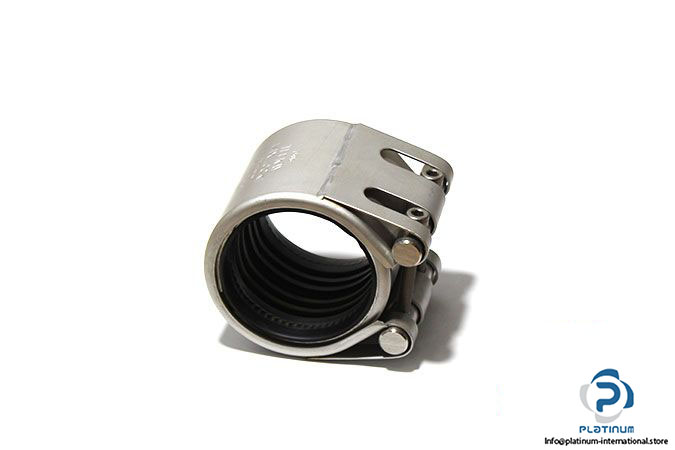

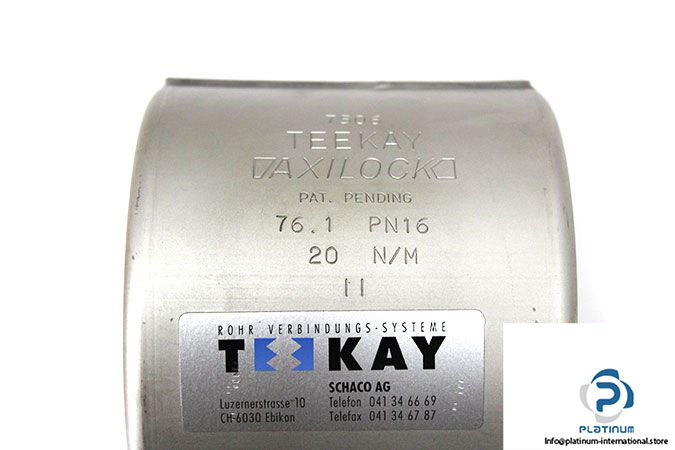

Teekay Axilock 76.1 Pipe Coupling
Manufacturer: TEEKAY
Type: PIPE COUPLING
Model: AXIFLEX Type II blue
Pipe materials: Carbon steel, stainless steel, copper, cunifer, GRE
Size: 76.1 (2. ½ ”), 75/78 mm tolerance
Working Pressure:
for marine application: 16 bar
for industrial and land-based applications: 42 bar
Materials:
- Gasket: EPDM
- Fasteners: AISI 316/ 316L
- Casing: AISI 304/DIN 1.4301
Screw size: 2 x M 8
Torque rate: 20 Nm
Temperature: -40°C … +100°C
Weight: approx. 1.5 kg
