Motion Control Rotary Encoders

Tekel TK 561.SG.500.12.S.10.S.PP Incremental Encoder

Name: TEKEL TK 561.SG.500.12.S.10.S.PP INCREMENTAL ENCODER
Brand: TEKEL
SKU: 965584
Availability: LimitedAvailability






중고

요청 시 제공 가능

INCREMENTAL ENCODER TEKEL TK561-SG-500-12-S-10-S-PP는 500 PPR 해상도, 10 mm 솔리드 샤프트 및 푸시-풀(HTL) 출력을 갖춘 12V DC 증분 인코더로, 정밀 모션 제어 시스템에 적합합니다.

제조업체

TEKEL

SKU

965584

카테고리

Rotary Encoders

상태

중고

12V 500 Clip Encoder Incremental Industrial Motion Output PPR Push-Pull Sensor Servo shaft Solid Tekel TK561

방대한 재고

글로벌 배송

전문 지원

품질 보장

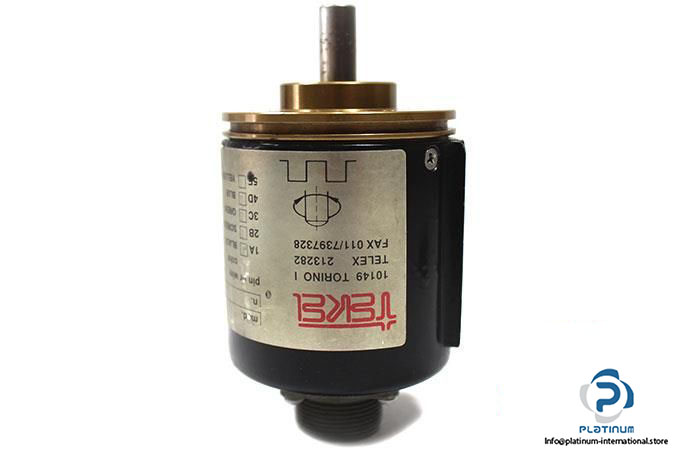

TEKEL TK561-SG-500-12-S-10-S-PP INCREMENTAL ENCODER

The TEKEL TK561-SG-500-12-S-10-S-PP is a high-resolution incremental encoder built for precision motion feedback in industrial automation systems. Designed with a servo-clip flange and 10 mm solid shaft, this encoder offers reliable performance with 500 pulses per revolution and HTL push-pull output.

Manufacturer: TEKEL

Type: Incremental Encoder

Model: TK561-SG-500-12-S-10-S-PP

Flange Type	Servo-clip
Shaft Type	Solid Shaft
Shaft Diameter	10 mm
Resolution	500 PPR (pulses per revolution)
Voltage Supply	12V DC
Output Frequency	0 / 100 kHz
Output Circuits	Push-Pull (HTL)

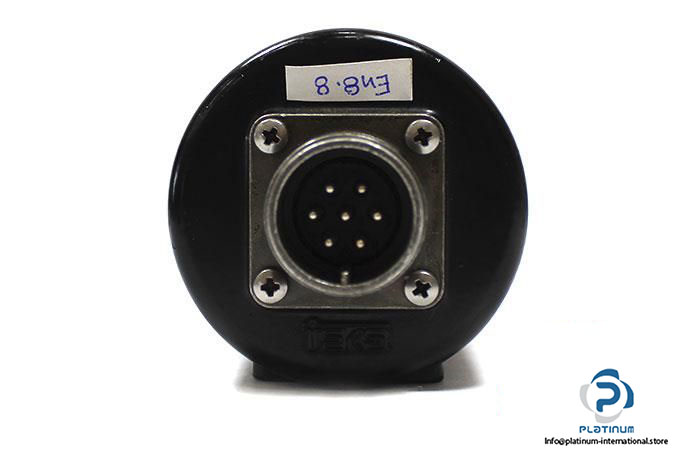

Connection Type	Axial MIL connector (7 pins)
Temperature Range	-10 / 70 °C
