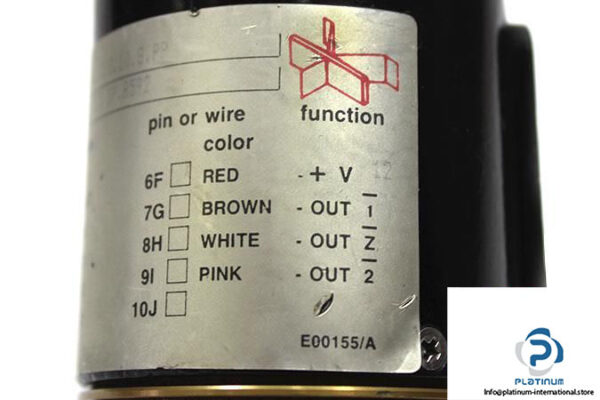

Tekel TK 561.SG.500.12.S.10.S.PP Incremental Encoder

Name: TEKEL TK 561.SG.500.12.S.10.S.PP INCREMENTAL ENCODER
Brand: TEKEL
SKU: 965584
Availability: LimitedAvailability






Used

Available on request

INCREMENTAL ENCODER

TEKEL TK561-SG-500-12-S-10-S-PP is a 12V DC incremental encoder with 500 PPR resolution, 10 mm solid shaft, and push-pull (HTL) output, suitable for precise motion control systems.

Manufacturer

TEKEL

SKU

965584

Category

Rotary Encoders

Condition

Used

12V 500 Clip Encoder Incremental Industrial Motion Output PPR Push-Pull Sensor Servo shaft Solid Tekel TK561

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

TEKEL TK561-SG-500-12-S-10-S-PP INCREMENTAL ENCODER

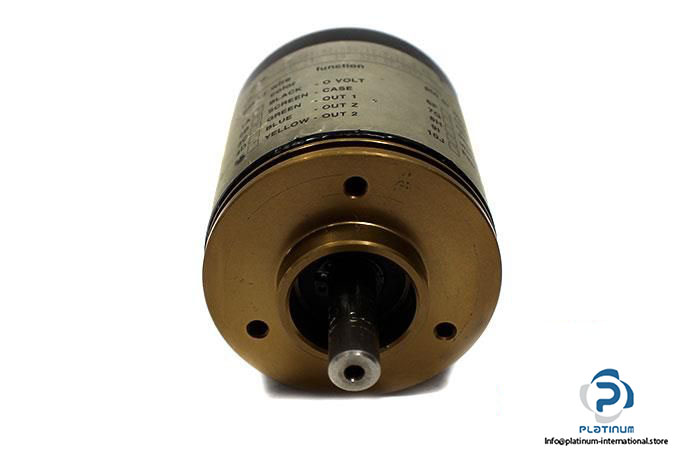

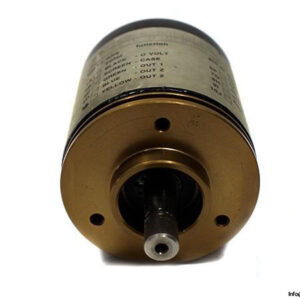

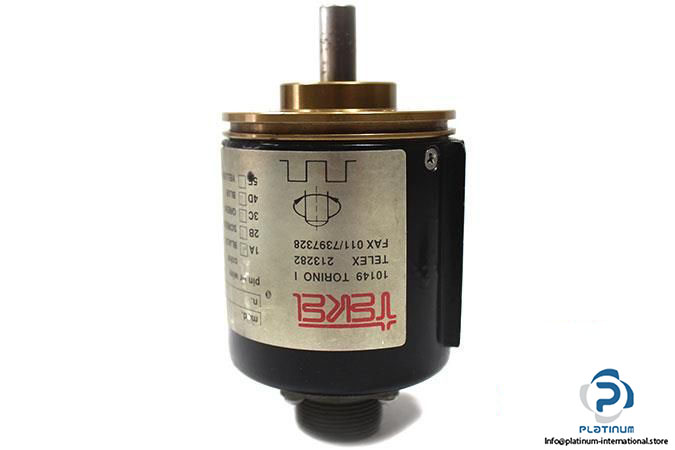

The TEKEL TK561-SG-500-12-S-10-S-PP is a high-resolution incremental encoder built for precision motion feedback in industrial automation systems. Designed with a servo-clip flange and 10 mm solid shaft, this encoder offers reliable performance with 500 pulses per revolution and HTL push-pull output.

Manufacturer: TEKEL

Type: Incremental Encoder

Model: TK561-SG-500-12-S-10-S-PP

Flange Type	Servo-clip
Shaft Type	Solid Shaft
Shaft Diameter	10 mm
Resolution	500 PPR (pulses per revolution)
Voltage Supply	12V DC
Output Frequency	0 / 100 kHz
Output Circuits	Push-Pull (HTL)

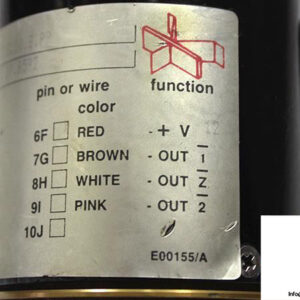

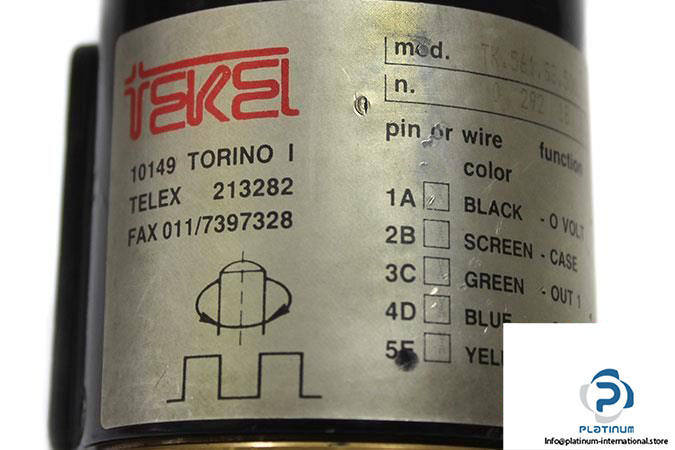

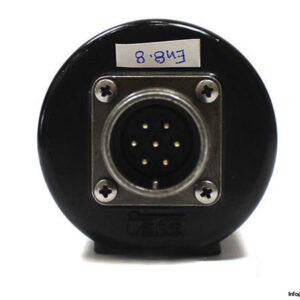

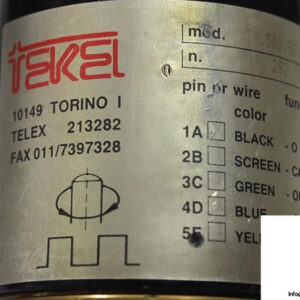

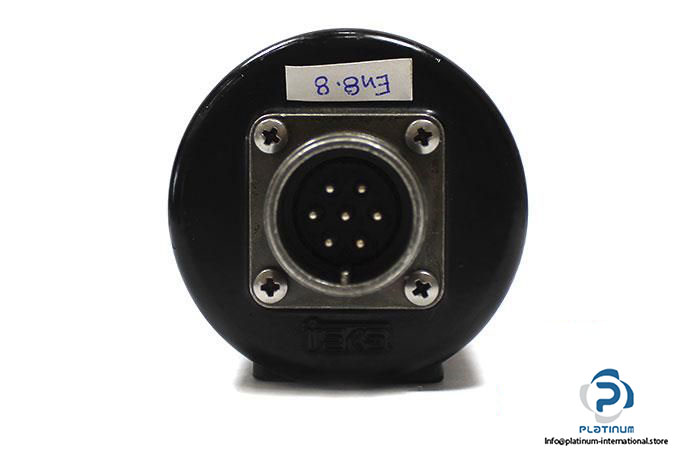

Connection Type	Axial MIL connector (7 pins)
Temperature Range	-10 / 70 °C
