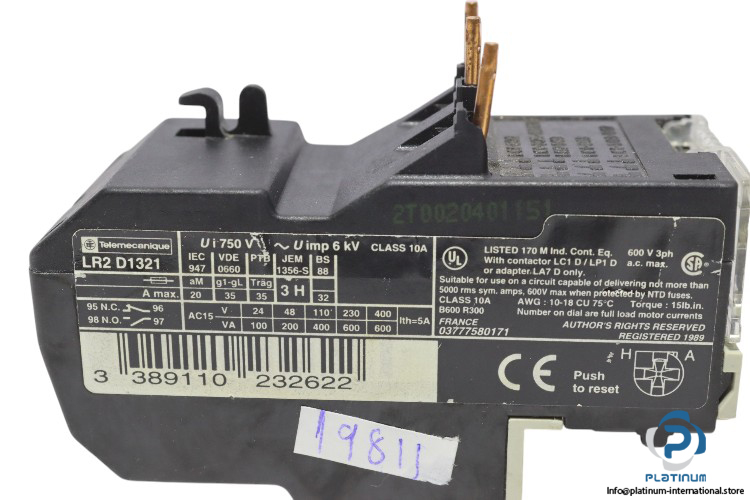

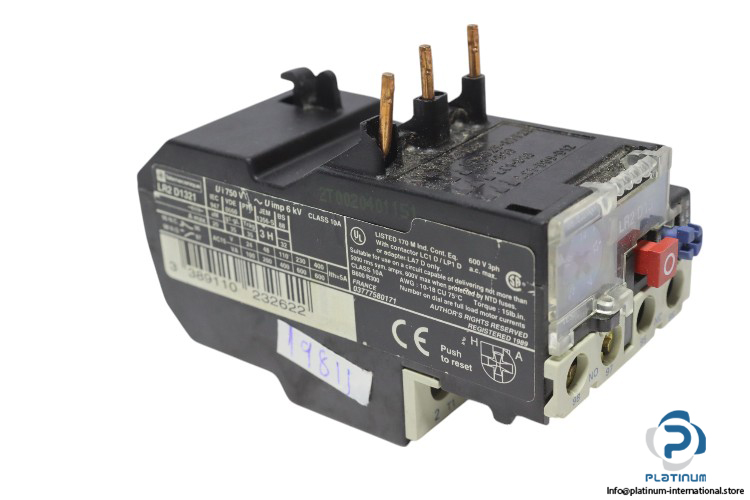

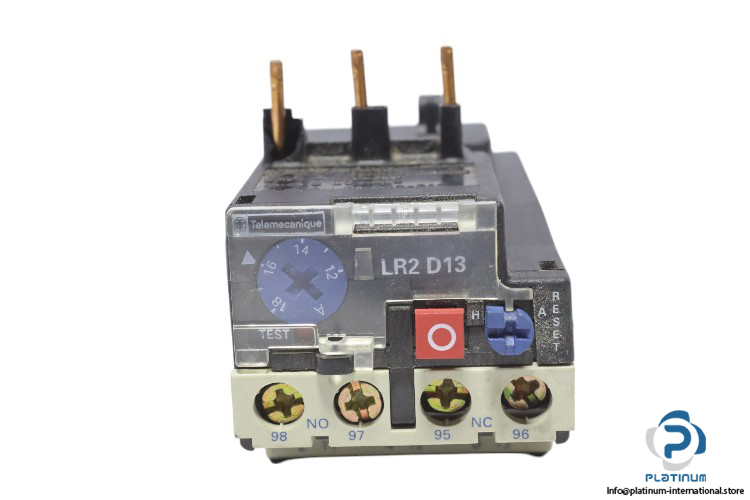

Telemecanique LR2-D1321 Thermal Overload Relay
The Telemecanique LR2-D1321 Thermal Overload Relay is designed for motor protection, ensuring reliable performance by preventing excessive current flow and overheating. With a rated current range of 12 to 18A, high surge withstand capability, and IP2X protection, this relay offers dependable safety and efficiency in industrial applications.
Manufacturer: Telemecanique
Type: Thermal Overload Relay
Model: LR2-D1321
| Relay Application | Motor Protection |
| Rated Current Range | 12 to 18 A |
| Surge Withstand | 6 kV |
| Tripping Threshold | 1.14 ± 0.06 |
| Degree of Protection | IP2X |
| Tightening Torque | 1.7 N.m |
| Ambient Air Temperature for Operation | -20 to 60°C |
| Dimensions (H x W x D) | 121 x 75 x 100 mm |
