Telemecanique XCK-J59 Limit Switch
중고
재고 있음1 단위즉시 배송 가능
Limit Switch
A durable industrial limit switch with plunger head design, providing accurate position detection and reliable electrical switching for automation and control systems.
방대한 재고
글로벌 배송
전문 지원
품질 보장

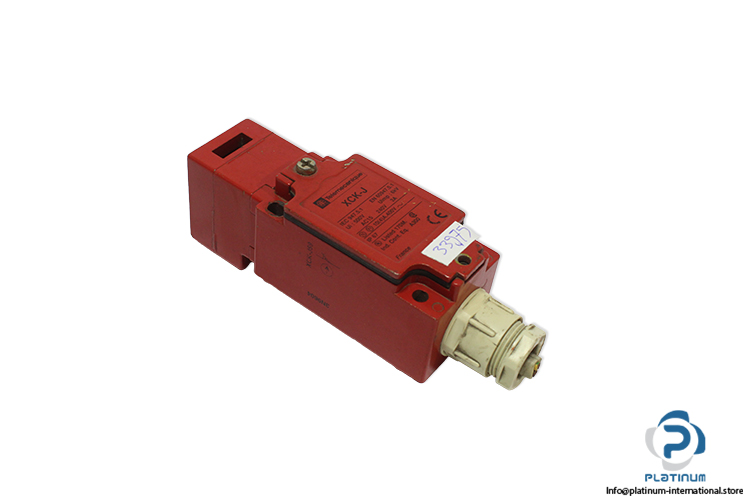

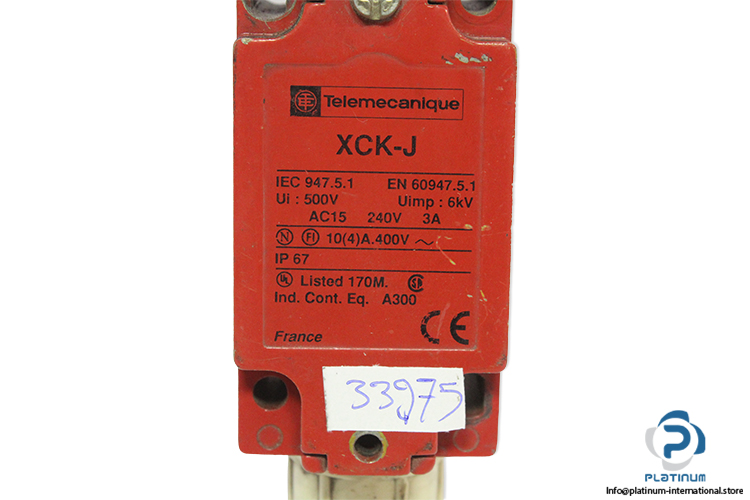

Telemecanique XCKJ59 Limit Switch
A robust industrial limit switch designed for precise position detection and reliable switching in automation and control applications. Built with a durable metal body and plunger head, it ensures consistent performance in harsh industrial environments. Manufacturer: Telemecanique
Type: Limit Switch
Model: XCKJ59
Range: XC
Device Short Name: XCKJ
| Insulation Voltage (Ui) | 500 V |
| Thermal Current (Ith) | 10 A |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Contact Rating | 240 V AC, 3 A |
| Contact Configuration | 1 NO + 1 NC |
| Number of Poles | 1 |
| Body Type | Fixed |
| Head Type | Plunger Head |
| Protection Degree | IP65 |
| Body Material | Zamak |
| Head Material | Zamak |
| Maximum Resistance Across Terminals | 25 MOhm |
| Standards | IEC 947-5-1, EN 60947-5-1 |
| Ambient Operating Temperature | -25 / +70 °C |
| Dimensions | 40 x 77 x 44 mm |
