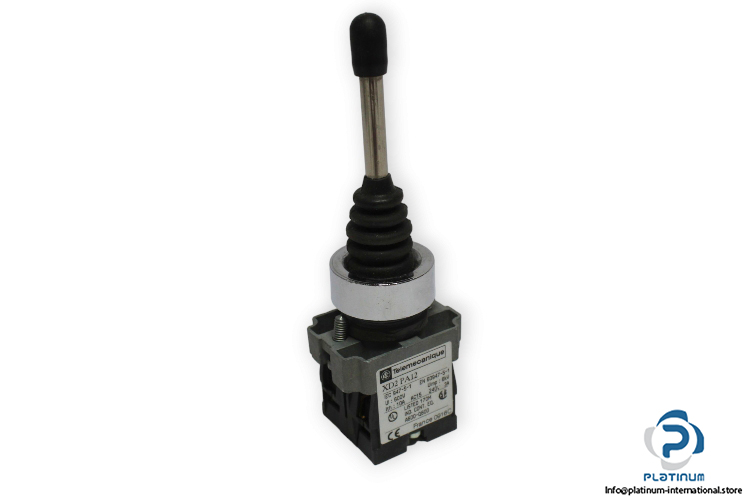

Telemecanique XD2 PA12 Complete Joystick Controller

Manufacture: Telemecanique
Type: Complete Joystick Controller
Model: XD2PA12
Part No.: 061150

Rated impulse withstand voltage Uimp: 6 Kv
Rated insulation voltage Ui: 600 V
Rated operational current Ie: 3 A at 240 V AC-15
Thermal current Ith: 10 A
Device short name: XD2
Mounting diameter: 22 mm
Bezel material: Chromium plated metal
Notch per direction: 1
Operator position information: All positions
Operator direction information: 2 directions
Contacts type and composition: 1 NO time delayed
Fixing center: 30 x 85 mm
Height: 122 mm
Depth: 40 mm
Operation temperature: -25 … 70°C
Degree of protection: IP66
