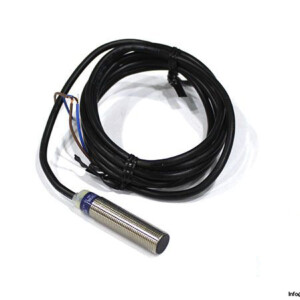

Telemecanique XS612B1MAL2 Inductive Sensor
신제품
재고 있음1 단위즉시 배송 가능
유도 센서 Telemecanique Schneider XS612B1MAL2 원통형 M12 유도 근접 센서로, 감지 거리 4mm, 24-240 V AC/DC 동작 전압, 노멀 오픈 출력 및 산업 자동화 애플리케이션용 IP68 보호 기능을 갖추었습니다.
AutomationCylindricalElectricFlushInductiveIndustrialIP68M12mountProximitySchneiderSensorTelemecaniqueXS6XS612B1MAL2
방대한 재고
글로벌 배송
전문 지원
품질 보장
Telemecanique Schneider XS612B1MAL2 Inductive Sensor
The Telemecanique Schneider XS612B1MAL2 is a cylindrical M12 inductive proximity sensor designed for reliable detection in industrial automation systems. Part of the Telemecanique XS general-purpose sensor family, it offers durable metal construction, flush mounting capability, and stable operation across a wide AC/DC voltage range.
Manufacturer: Telemecanique Schneider
Type: Inductive Sensor
Model: XS612B1MAL2
| Range of Product | Telemecanique Inductive Proximity Sensors XS |
| Series Name | General Purpose |
| Sensor Name | XS6 |
| Sensor Design | Cylindrical M12 |
| Nominal Sensing Distance | 4 mm |
| Sensing Range | > 2.5 / 4 mm |
| Operating Voltage | 24 / 240 V AC / DC |
| Frequency | 50 / 60 Hz |
| Switching Capacity | 5 / 200 mA AC/DC |
| Switching Frequency | <= 1000 Hz DC <= 25 Hz AC |
| Maximum Voltage Drop | < 5.5 V |
| Switching Output | Normally Open |
| Electrical Connection | Cable 2 m, 2-Wire |
| Sensor Design | Cylindrical M12 |
| Diameter, Length | 12, 54 mm |
| Housing Material | Metal |
| Enclosure Material | Nickel Plated Brass |
| Front Material | PPS |
| Degree of Protection | IP68 |
| Ambient Operation Temperature | -25 / 70 °C |
| Body Type | Fixed |
| Mounting | Flush Mountable |
