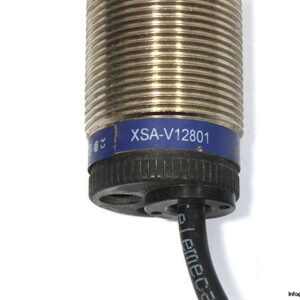

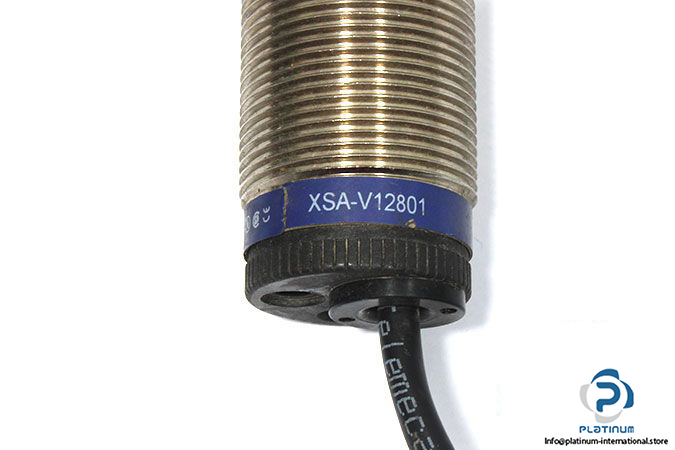

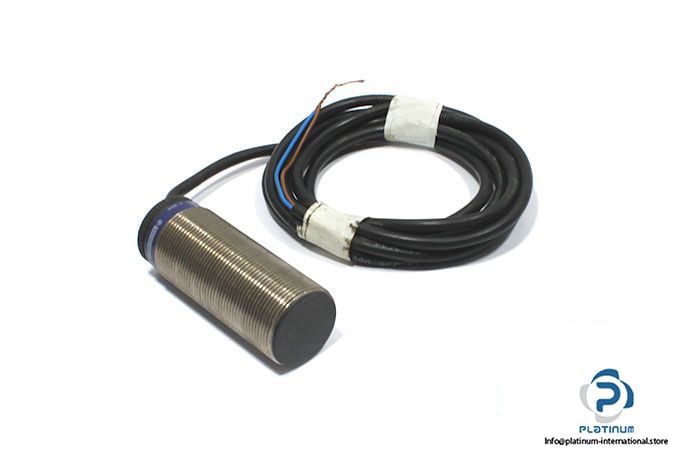

Telemecanique XSA-V12801 Inductive Sensor

Manufacturer: TELEMECANIQUE SCHNEIDER

Type: Inductive Sensor

Model: XSAV12801

Application: Rotation Monitoring

Sensing Range: 10 mm

Operating Voltage: 24 … 210 V DC / 24 … 240 V AC

Frequency: 50 … 60 Hz

Operating Current: 5 … 200 mA DC / 5 … 350 mA AC

Maximum Voltage Drop: < 5.7 V
Switching Frequency: <= 800 Hz
Discrete Output Function: Normally Closed

Adjustable Frequency Range: 120 … 3000 cyc/mn

Sensor Design: Cylindrical M30

Connector Type: Cable 2 m, 2-Wire

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70 °C

Diameter, Length: 30, 81 mm

Body Type: Fixed

Housing Material: Metal

Enclosure Material: Nickel Plated Brass

Mounting: Flush-Mountable

Weight: 0.19 kg
