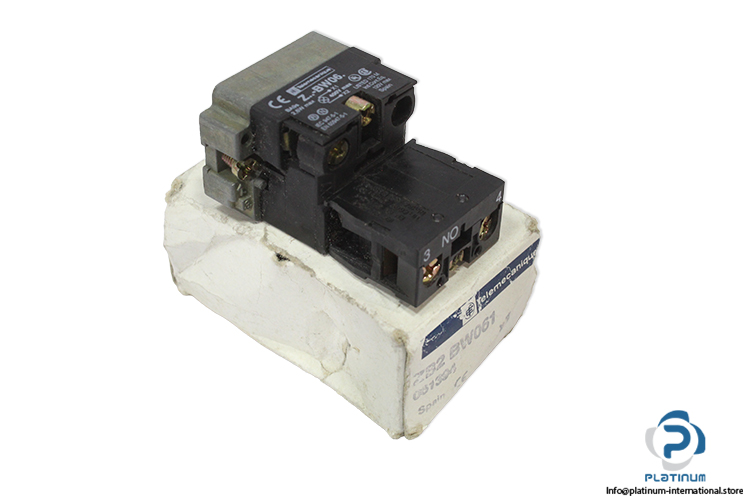

Telemecanique ZB2 BW061 Control Button Body
TELEMECANIQUE SCHNEIDER ZB2BW061 Illuminated Control Button Body
The TELEMECANIQUE SCHNEIDER ZB2 BW061 illuminated control button body is designed for industrial control panels and machinery operation. Built with chromium plated metal construction and equipped for incandescent illumination, it ensures durability and clear visual indication in demanding environments.
Manufacturer: TELEMECANIQUE SCHNEIDER
Type: Illuminated Control Button Body
Model: ZB2 BW061
Part No.: 061394
Attachment “ TELEMECANIQUE ZB2-BE101 Contact Block
| Series | ZB2 |
| Rated Operational Voltage | 240 V AC |
| Rated Operational Current | 3 A |
| Power | 2.6 W |
| Diameter | 22 mm |
| Bulb Base | BA 9s |
| Bulb Type | Incandescent |
| Material | Chromium Plated Metal |
| Component Name | ZB2 |
| Range Of Product | Harmony XAC |
| Application | Single Speed |
| Thermal Current (Ith) | 10 A |
| Rated Insulation Voltage (Ui) | 600 V |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Type Of Operator | Spring Return |
| Operating Force | 13 / 15 N |
| Auxiliary Contact | 1 Normally Open (NO) |
| Mounting Of Block | Front Mounting |
| Contact Operation | Slow-Break |
| Ambient Air Temperature For Operation | -25 / 70 °C |
